Baldor M3536 - .33 HP, 870RPM, 3 Phase, 60HZ, 56, 3516M, TEFC, F1, N 60HZ Three Phase Three Phase 33 HP 3516 M Cable

Save $316.25
BaldorSKU: M3536

Price:
Sale price$948.75 Regular price$1,265.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

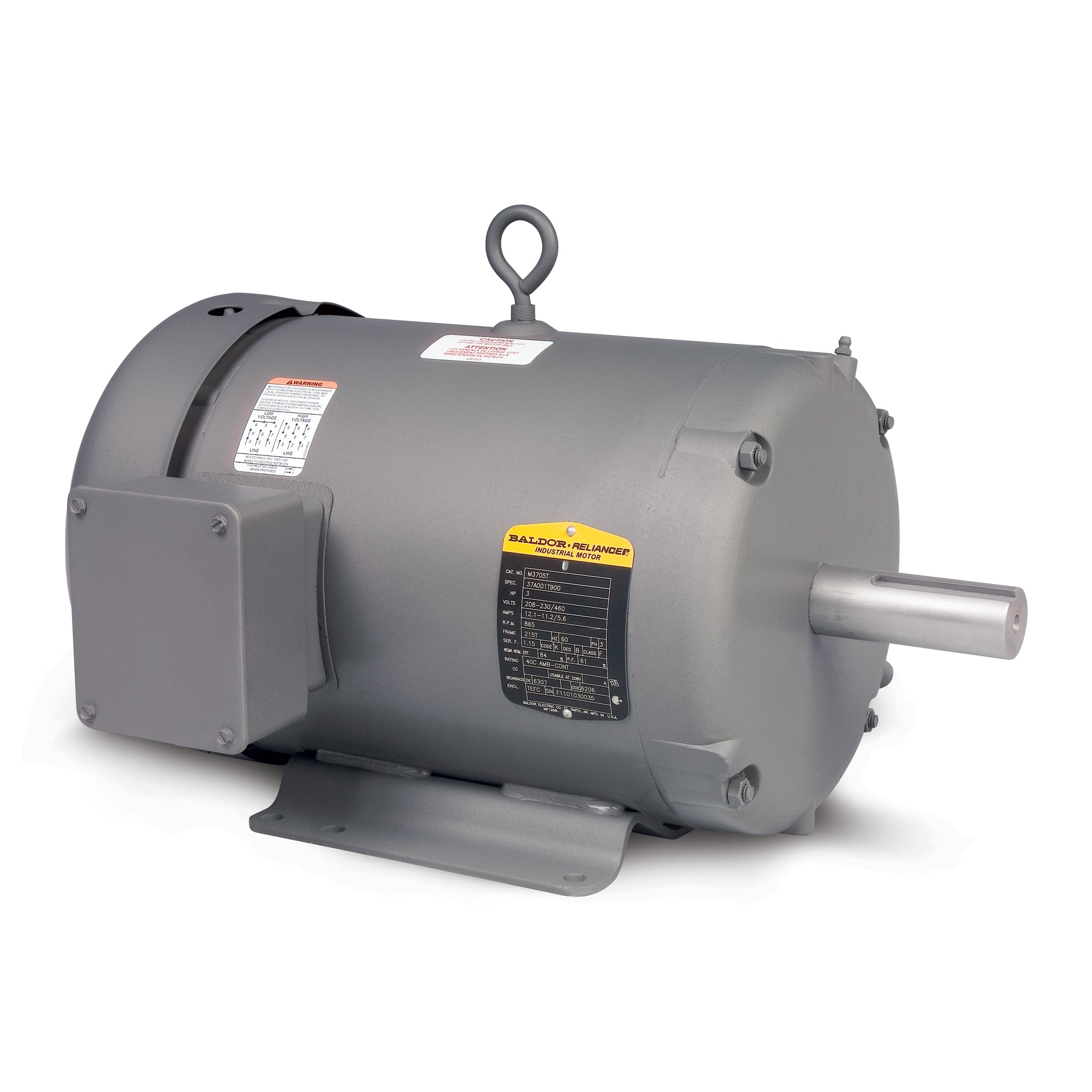

Baldor M3536 Three Phase Enclosed Motor:

Introducing the Baldor M3536, a reliable and efficient .33 HP three-phase enclosed motor designed for various industrial applications. Operating at 870 RPM and powered by a 60Hz supply, this motor is built to deliver consistent performance and durability. With a TEFC (Totally Enclosed Fan Cooled) design, it ensures protection against dust and moisture, making it ideal for challenging environments.

Specifications:

  • Power: .33 HP
  • Speed: 870 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame: 56
  • Model: 3516M
  • Type: TEFC
  • Product Code: M3536

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor M3536 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568101865
Supplier Part Number M3536
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 29.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number M3536
Current @ Voltage 1.100 A @ 460.0 V, 2.000 A @ 208.0 V, 2.200 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 59.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.1 a
Insulation Class B
Inverter Code Not Inverter
IP Rating NONE
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3516M
Mounting Arrangement F1
Number of Poles 8
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 12.23 IN
Phase 3
Power Factor 46
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 870 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 900 rpm
Synchronous Speed @ Frequency 900 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
