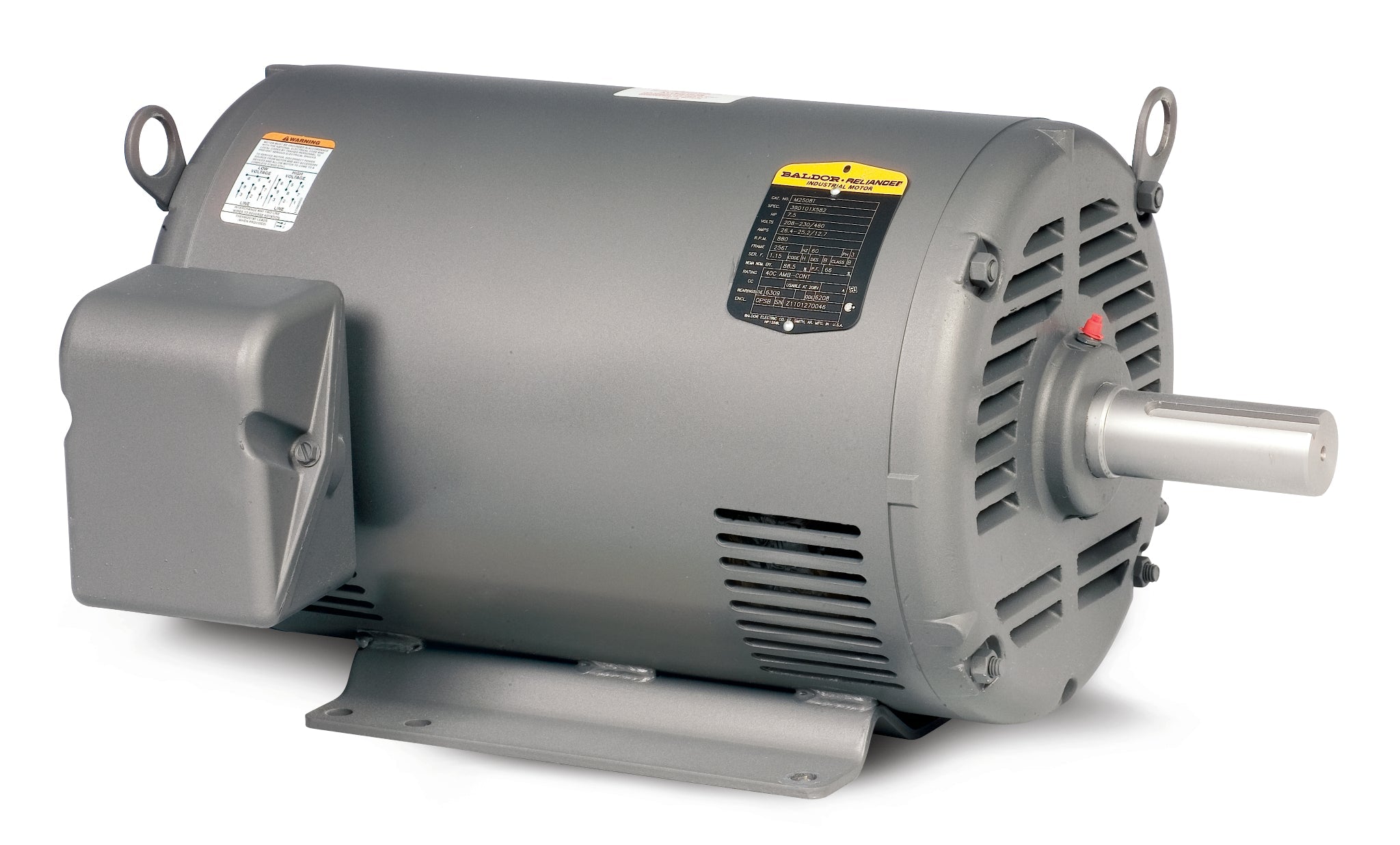

Baldor M3112-57 - .75 HP, 1425 IP23RPM, 3 Phase, 50HZ, 56, 3420M, O 50HZ Three Phase Three Phase 75 HP 3420 M Cable

Save $180.00
BaldorSKU: M3112-57

Price:
Sale price$540.00 Regular price$720.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Three Phase Open Motor - Model M3112-57

Introducing the Baldor M3112-57, a high-performance .75 HP three-phase open motor designed for reliable operation in various industrial applications. With a speed of 1425 RPM and a frequency of 50Hz, this motor is engineered to deliver optimal performance and efficiency.

Specifications:

  • Power: .75 HP
  • Speed: 1425 RPM
  • Phase: 3 Phase
  • Frequency: 50Hz
  • Frame Size: 56
  • IP Rating: IP23
  • Product Code: M3112-57

This Baldor-Reliance motor is ideal for applications requiring robust and dependable power solutions. As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right components for your needs. If you have questions or need assistance locating the correct pump, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568656761
Supplier Part Number M3112-57
Category AC Motors
Subcategory Three Phase Open
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 26.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number M3112-57
Current @ Voltage 1.900 A @ 400.0 V, 3.200 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 1.9 a
Insulation Class F
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3420M
Mounting Arrangement F1
Number of Poles 4
Output 0.750 hp
Output @ Frequency .750 HP @ 50 HZ
Overall Length 10.14 IN
Phase 3
Power Factor 58
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1425 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 400 V, 230 V
Voltage @ Frequency 400.0 V @ 50 HZ, 230.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
