Baldor M1210T - 10/2.5 HP, 1725/850RPM, 3 Phase, 60HZ, 215T, 3744M 60HZ Three Phase 2.5 HP 3744 M Cable

Save $908.50
BaldorSKU: M1210T

Price:
Sale price$2,725.50 Regular price$3,634.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

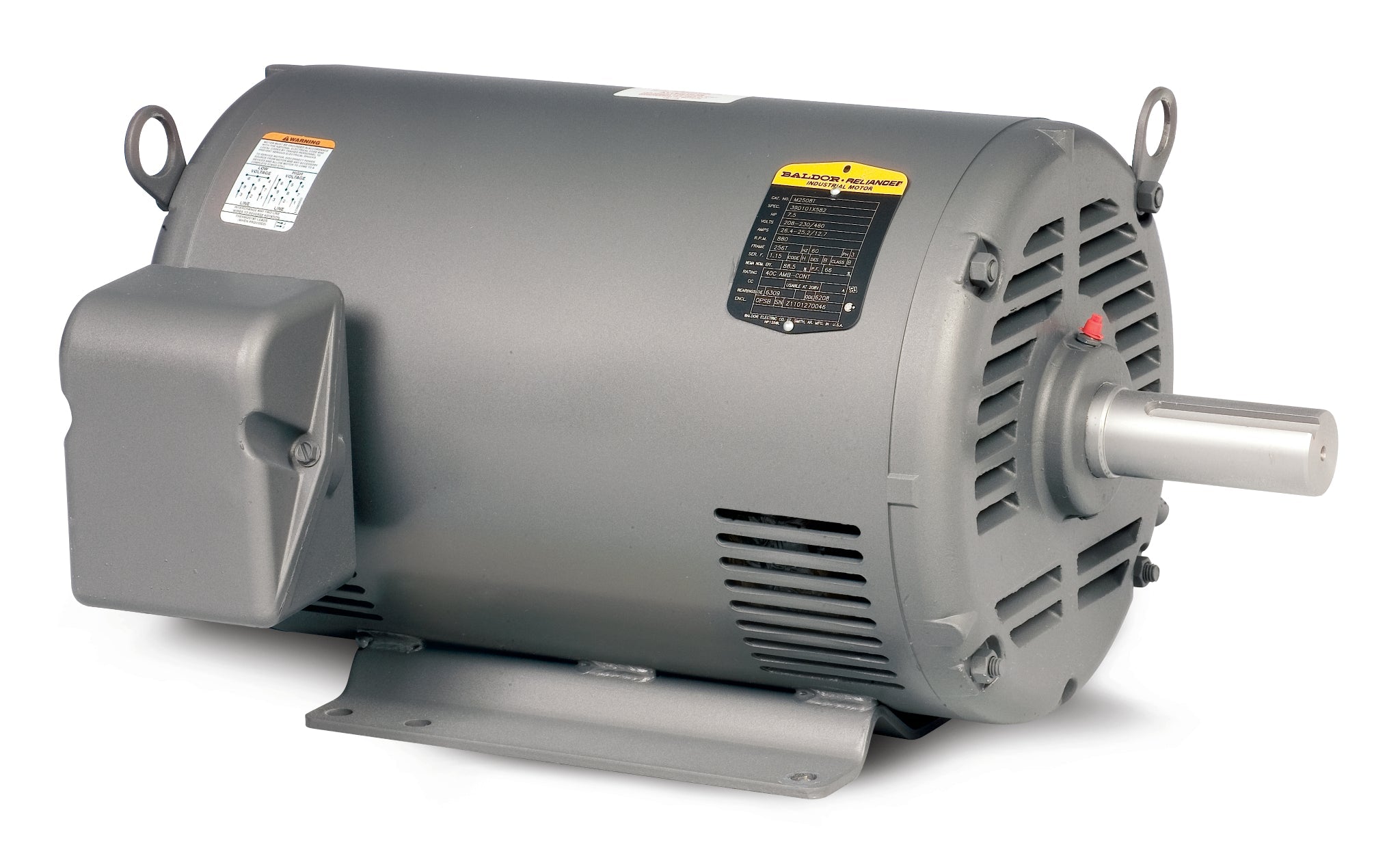

Baldor-Reliance Two Speed Motor - Model M1210T

Upgrade your pumping system with the Baldor M1210T Two Speed Motor, featuring a powerful 10/2.5 HP output and dual speed options of 1725/850 RPM. This robust motor operates on a 3-phase, 60Hz power supply, making it ideal for various industrial applications.

Specifications:

  • Power: 10/2.5 HP
  • Speed: 1725/850 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 215T
  • Product Code: M1210T

As a trusted provider of high-quality motors, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor M1210T. If you encounter any difficulties, our knowledgeable team is here to help you find the perfect solution.

UPC 781568116326
Supplier Part Number M1210T
Category AC Motors
Subcategory Two Speed Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 132.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number M1210T
Current @ Voltage 13.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 215T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.0 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3744M
Mounting Arrangement F1
Number of Poles 4, 8
Output 10.000 hp, 2.500 hp
Output @ Frequency 10.000 HP @ 60 HZ, 2.500 HP @ 60 HZ
Overall Length 17.45 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm, 850 rpm
Speed Code 2S-1W-VT
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
