Baldor L3912T - 15 HP, 1770RPM, 1 Phase, 60HZ, 256T, 3956LC, TEFC, F 60HZ Single Phase Single Phase 15 HP

Save $2,332.00
BaldorSKU: L3912T

Price:
Sale price$6,996.00 Regular price$9,328.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

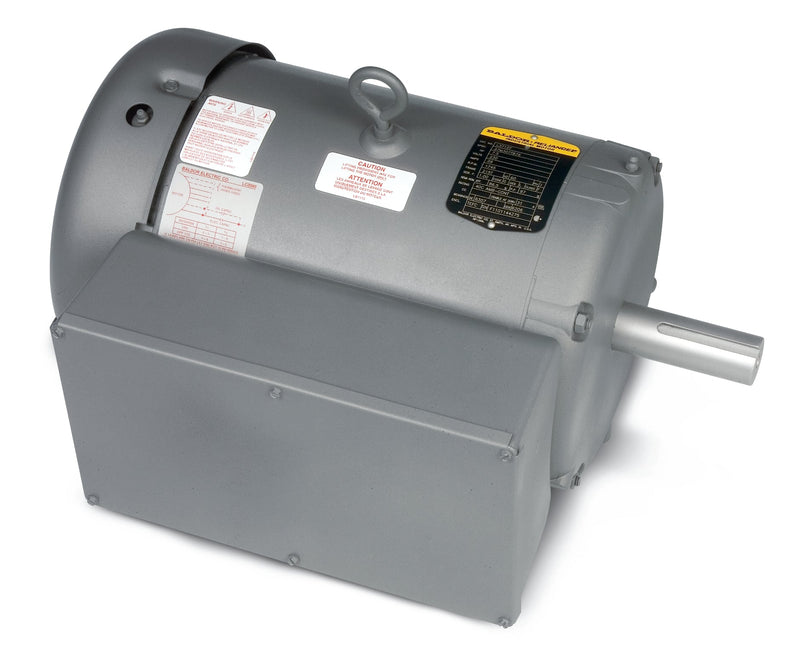

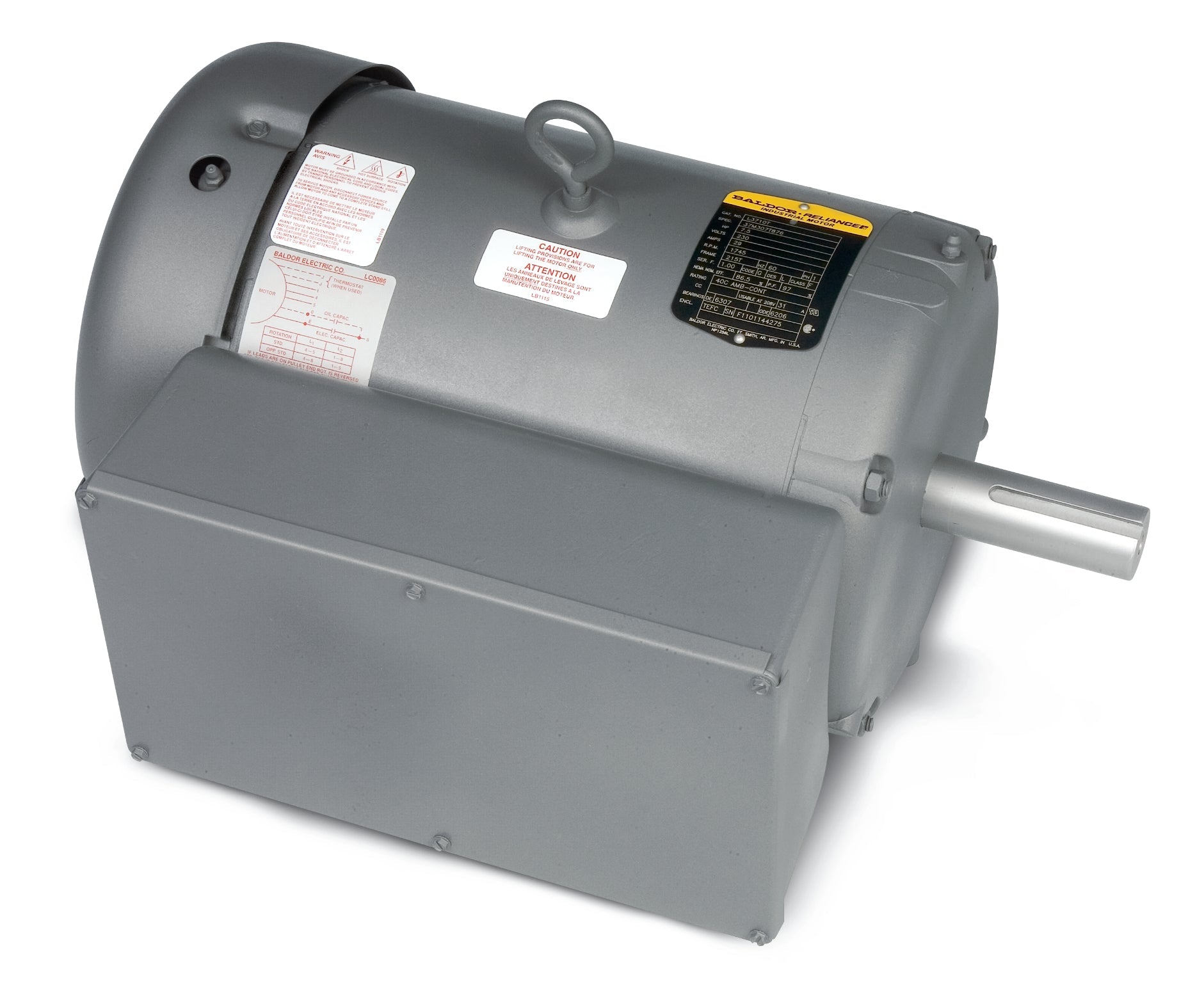

Baldor L3912T - 15 HP Single Phase Enclosed Motor

The Baldor L3912T is a high-performance 15 HP motor designed for reliable operation in various applications. With a speed of 1770 RPM and a single-phase configuration, this motor is perfect for those seeking efficiency and durability. Operating at 60Hz, it features a 256T frame and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring optimal protection against dust and moisture.

Key Features:

  • Power: 15 HP
  • Speed: 1770 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 256T
  • Type: Totally Enclosed Fan Cooled (TEFC)
  • Product Code: L3912T

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L3912T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568419939
Supplier Part Number L3912T
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 300.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L3912T
Current @ Voltage 58.000 A @ 230.0 V, 65.000 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 58.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code E
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 6 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3956LC
Mounting Arrangement F1
Number of Poles 4
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 24.56 IN
Phase 1
Power Factor 96
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1720 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 208 V, 230 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
