Baldor L3708T - 5 HP, 1750RPM, 1 Phase, 60HZ, 213T, 3726LC, TEFC, F1 60HZ Single Phase Single Phase 5 HP

Save $562.75
BaldorSKU: L3708T

Price:
Sale price$1,688.25 Regular price$2,251.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

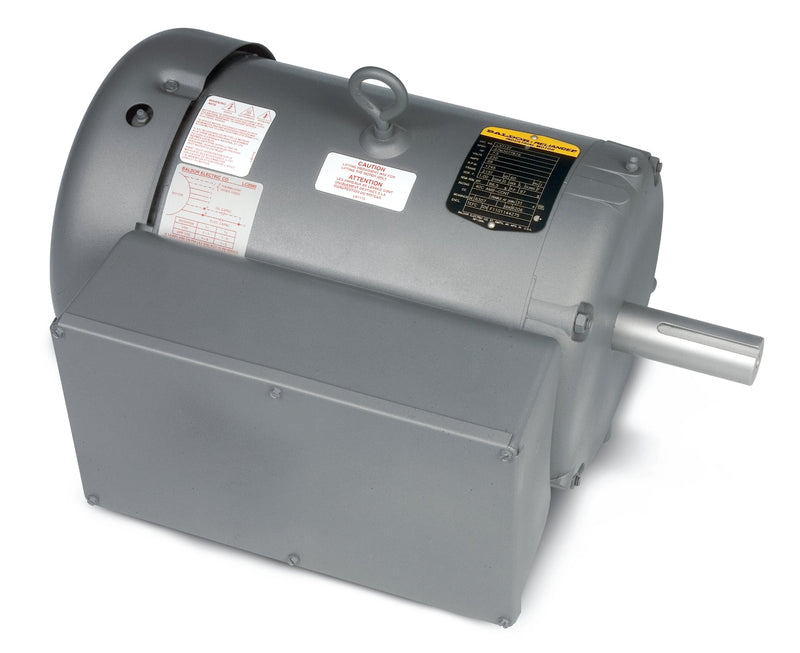

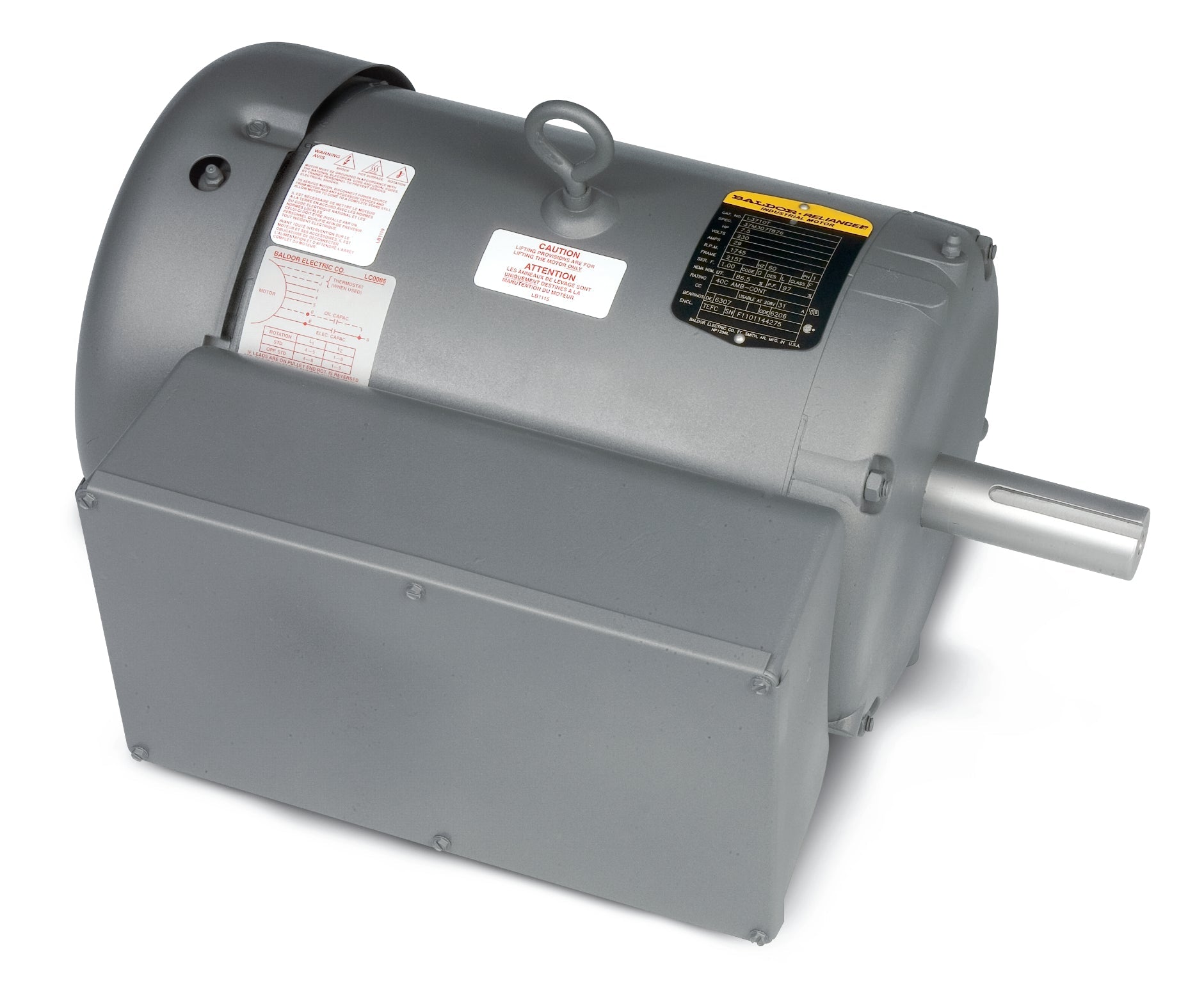

Baldor-Reliance Single Phase Enclosed Motor - Model L3708T

Upgrade your pumping system with the Baldor L3708T, a high-performance single-phase motor designed for reliability and efficiency. This robust motor delivers 5 HP of power at 1750 RPM, making it ideal for various applications requiring dependable performance.

  • Power: 5 HP
  • Speed: 1750 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame Size: 213T
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: L3708T

This motor is perfect for applications that require a durable and efficient solution. With its TEFC design, it provides excellent protection against dust and moisture, ensuring longevity and consistent performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L3708T to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568100837
Supplier Part Number L3708T
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 116.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L3708T
Current @ Voltage 20.500 A @ 230.0 V, 22.000 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 84.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 213T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 20.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 12 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3726LC
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 19.02 IN
Phase 1
Power Factor 93
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1750 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
