Baldor L3514 - 1.5 HP, 1725RPM, 1 Phase, 60HZ, 56H, 3532LC, TEFC, F 60HZ Single Phase Single Phase 1.5 HP

Save $276.75
BaldorSKU: L3514

Price:
Sale price$830.25 Regular price$1,107.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

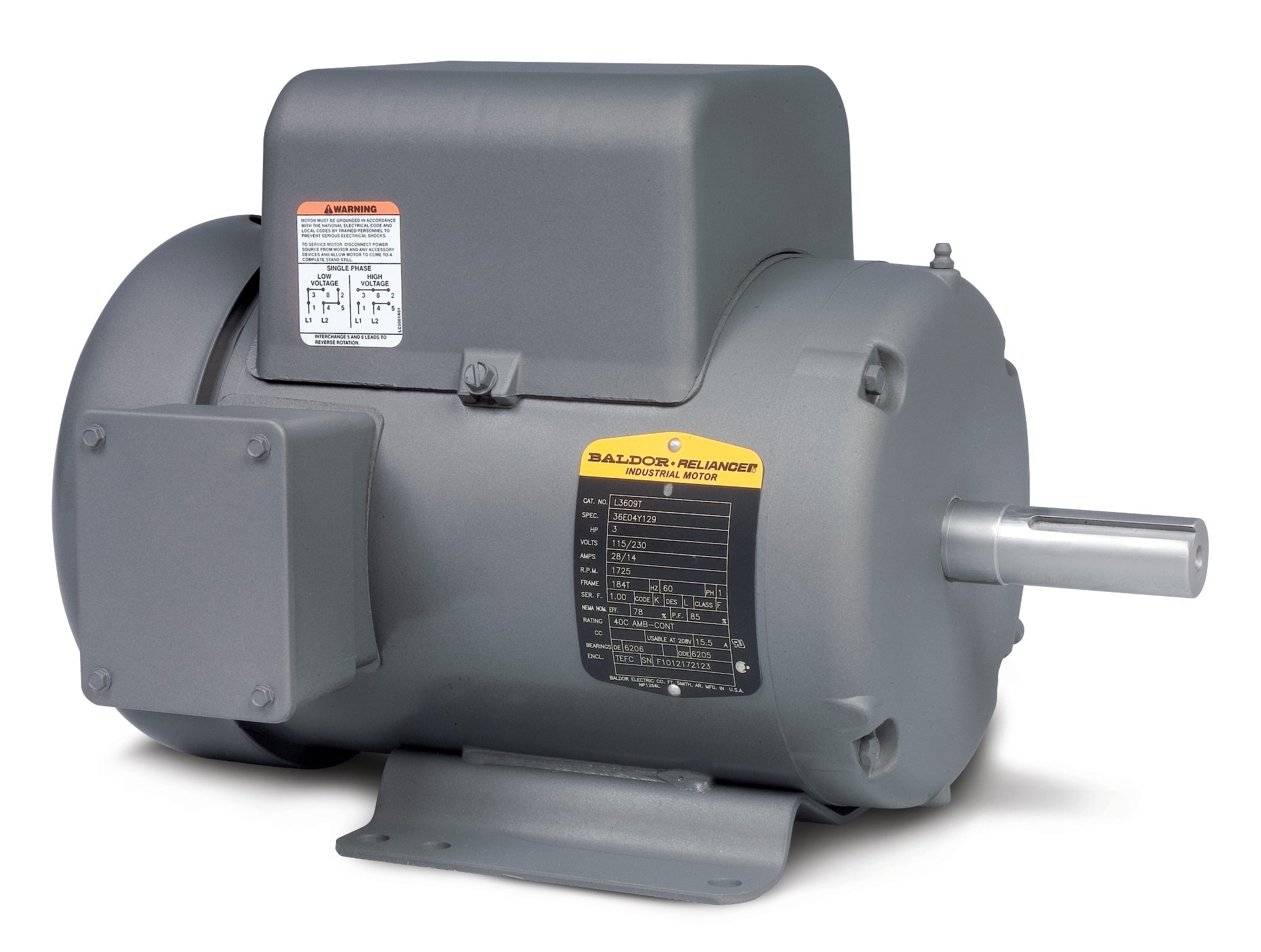

Baldor L3514 - 1.5 HP Single Phase Enclosed Motor

The Baldor L3514 is a high-performance single phase enclosed motor designed for reliable operation in various applications. With a power output of 1.5 HP and a speed of 1725 RPM, this motor is ideal for driving pumps and other machinery that require consistent performance.

  • Power: 1.5 HP
  • Speed: 1725 RPM
  • Phase: Single Phase
  • Frequency: 60 Hz
  • Frame Size: 56H
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: L3514

This motor is part of the Baldor-Reliance range, known for its durability and efficiency. The TEFC design ensures protection against dust and moisture, making it suitable for various environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L3514 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568100530
Supplier Part Number L3514
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 49.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L3514
Current @ Voltage 12.200 A @ 115.0 V, 6.100 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56H
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.1 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3532LC
Mounting Arrangement F1
Number of Poles 4
Output 1.500 hp
Output @ Frequency 1.500 HP @ 60 HZ
Overall Length 13.81 IN
Phase 1
Power Factor 98
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
