Baldor Replacement Part — Component

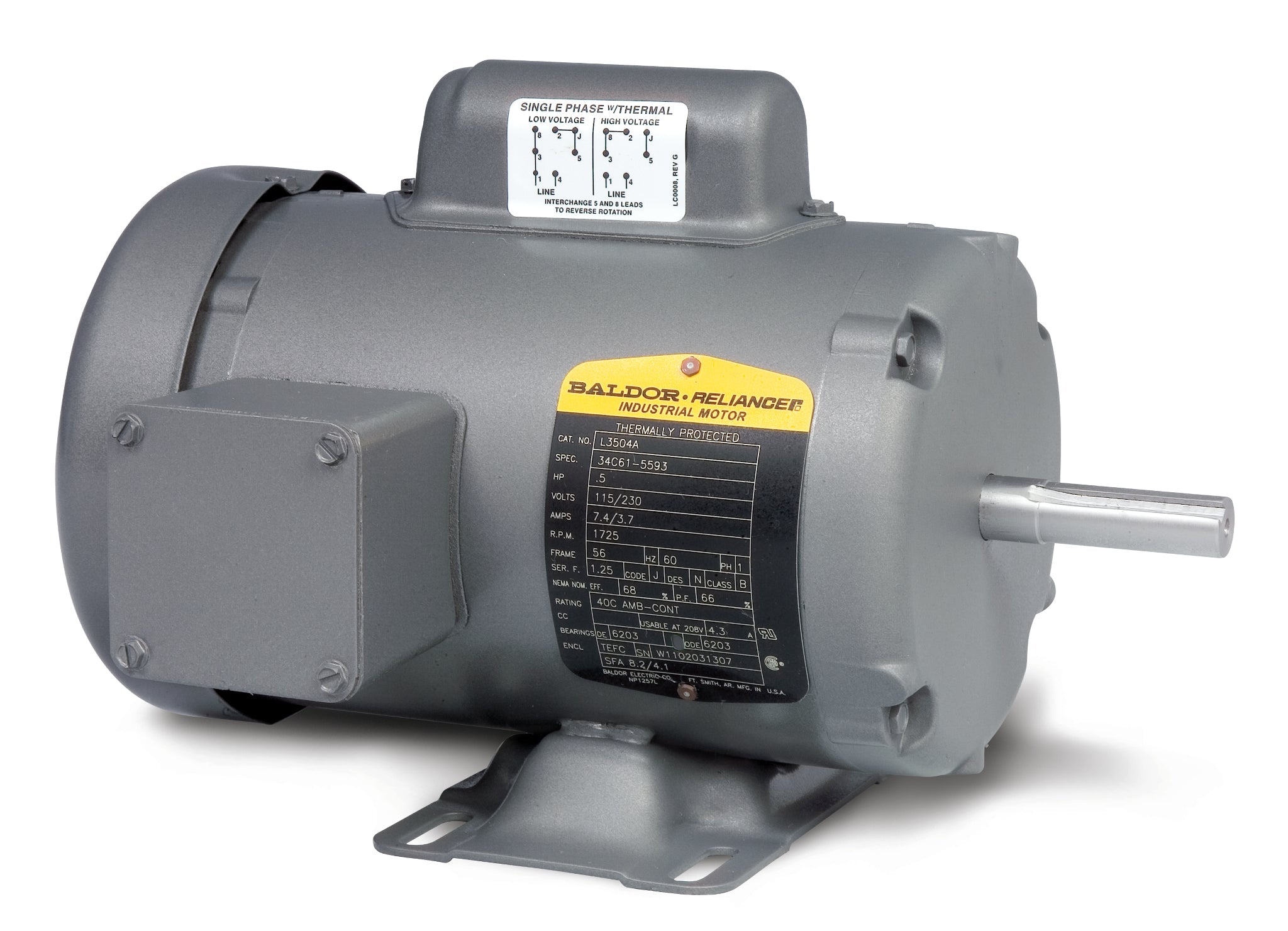

The Baldor L3509-50 for Baldor pump systems.
Part Specifications
| Part Number | L3509-50 |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 781568119709
- Supplier Part Number
- L3509-50
- Category
- AC Motors
- Subcategory
- Single Phase Enclosed
- Product Family
- General Purpose
- Agency Approvals
- CE, CURUS, UKCA, WEEE
- Ambient Temperature
- 40 °C
- Approximate Weight (lbs)
- 40.0
- Auxillary Box
- No Auxillary Box
- Auxillary Box Lead Termination
- None
- Base Indicator
- Rigid
- Bearing Grease Type
- Polyrex EM (-20F +300F)
- Blower
- None
- Catalog Number
- L3509-50
- Current @ Voltage
- 9.400 A @ 110.0 V, 4.700 A @ 220.0 V
- Design Code
- -
- Drip Cover
- No Drip Cover
- Duty Rating
- CONT
- Efficiency @ 100% Load
- 77.4 %
- Electrically Isolated Bearing
- Not Electrically Isolated
- Enclosure
- TEFC
- Feedback Device
- NO FEEDBACK
- Frame
- 56
- Frame Material
- Steel
- Frequency
- 50.00 Hz
- Front Face Code
- Standard
- Front Shaft Indicator
- None
- Haz Area Class and Group
- NONE
- Haz Area Division
- Not Applicable
- Heater Indicator
- No Heater
- High Voltage Full Load Amps
- 4.7 a
- Insulation Class
- B
- Inverter Code
- Not Inverter
- KVA Code
- J
- Lifting Lugs
- No Lifting Lugs
- Locked Bearing Indicator
- No Locked Bearing
- Motor Finish
- CLEAR COAT
- Motor Lead Exit
- Ko Box
- Motor Lead Quantity/Wire Size
- 4 @ 16 AWG, A PH
- Motor Lead Termination
- Flying Leads
- Motor Letter Type
- Cap Start, Cap Run
- Motor Standards
- NEMA
- Motor Type
- 3524LC
- Mounting Arrangement
- F1
- Number of Poles
- 2
- Output
- 0.750 kW
- Output @ Frequency
- .750 KW @ 50 HZ
- Overall Length
- 13.23 IN
- Phase
- 1
- Power Factor
- 95
- Pulley End Bearing Type
- Ball
- Pulley Face Code
- Standard
- Pulley Shaft Indicator
- Standard
- Rodent Screen
- None
- RoHS Status
- ROHS NON-COMPLIANT
- Service Factor
- 1.25
- Shaft Diameter
- 0.625 IN
- Shaft Extension Location
- Pulley End
- Shaft Ground Indicator
- No Shaft Grounding
- Shaft Rotation
- Reversible
- Shaft Slinger Indicator
- No Slinger
- Speed
- 2890 rpm
- Speed Code
- Single Speed
- Starting Method
- Direct on line
- Synchronous Speed
- 3,000 rpm
- Synchronous Speed @ Frequency
- 3000 RPM @ 50 HZ
- Thermal Device - Bearing
- None
- Thermal Device - Winding
- None
- Vibration Sensor Indicator
- No Vibration Sensor
- Voltage
- 220 V, 110 V
- Voltage @ Frequency
- 110.0 V @ 50 HZ, 220.0 V @ 50 HZ
- Winding Thermal 1
- None
- Winding Thermal 2
- None
