Baldor L3504M - .5 HP, 1725RPM, 1 Phase, 60HZ, 56, 3421L, TEFC, F1 60HZ Single Phase Single Phase 5 HP

Save $215.75
BaldorSKU: L3504M

Price:
Sale price$647.25 Regular price$863.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

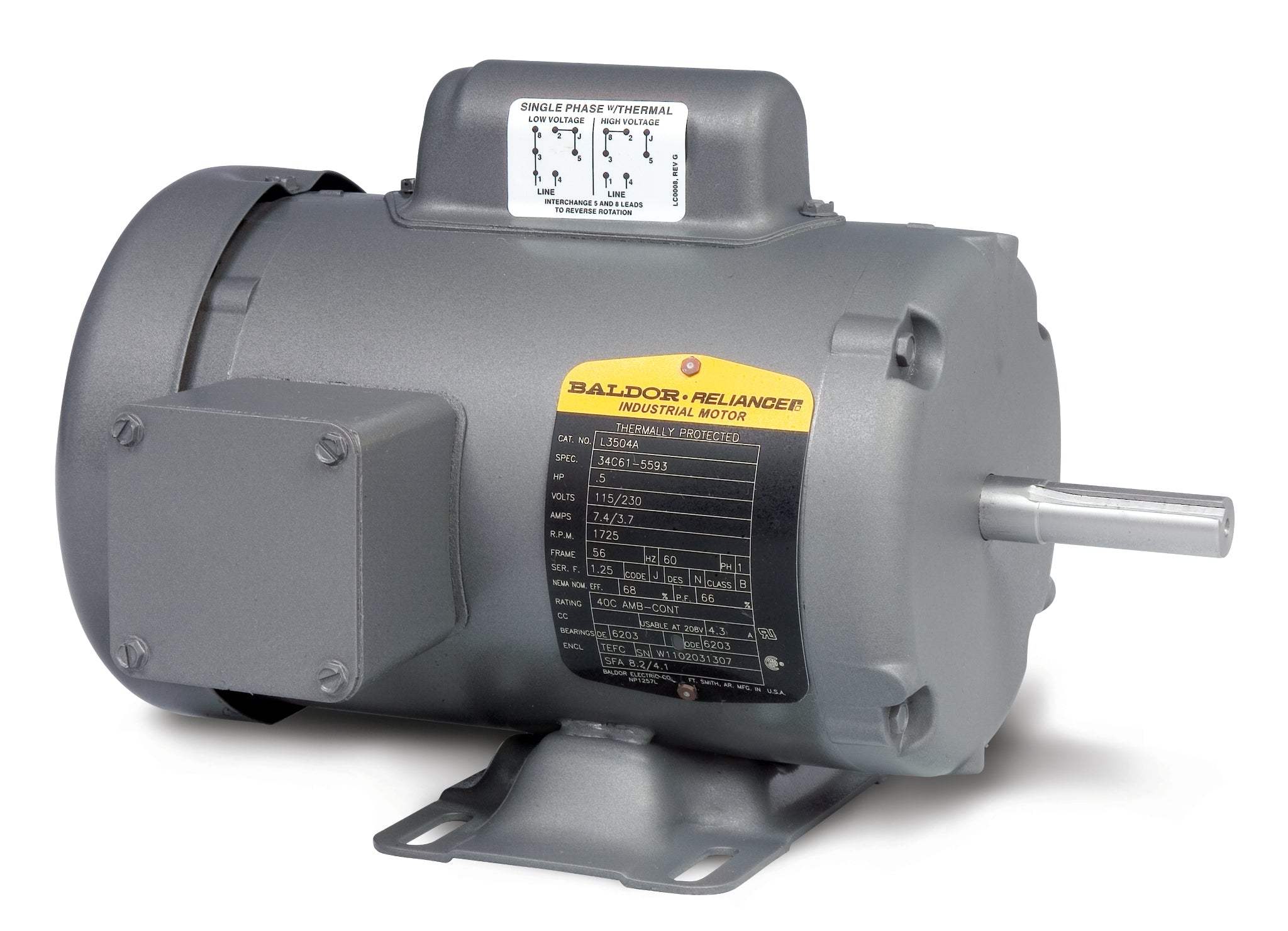

Baldor-Reliance Single Phase Enclosed Motor - Model L3504M

Upgrade your pumping system with the Baldor L3504M, a reliable and efficient single-phase motor designed for optimal performance. With a power output of 0.5 HP and a speed of 1725 RPM, this motor is perfect for various applications requiring dependable operation.

Specifications:

  • Power: 0.5 HP
  • Speed: 1725 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame: 56
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: L3504M

This motor is categorized under AC Motors, specifically Baldor-Reliance Motors & Drives, making it an ideal choice for those seeking quality and durability in their pumping solutions.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L3504M to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568100271
Supplier Part Number L3504M
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 27.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L3504M
Current @ Voltage 3.700 A @ 230.0 V, 4.300 A @ 208.0 V, 7.400 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 68.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.7 a
Insulation Class B
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3421L
Mounting Arrangement F1
Number of Poles 4
Output 0.500 hp
Output @ Frequency .500 HP @ 60 HZ
Overall Length 11.97 IN
Phase 1
Power Factor 66
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Manual Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
