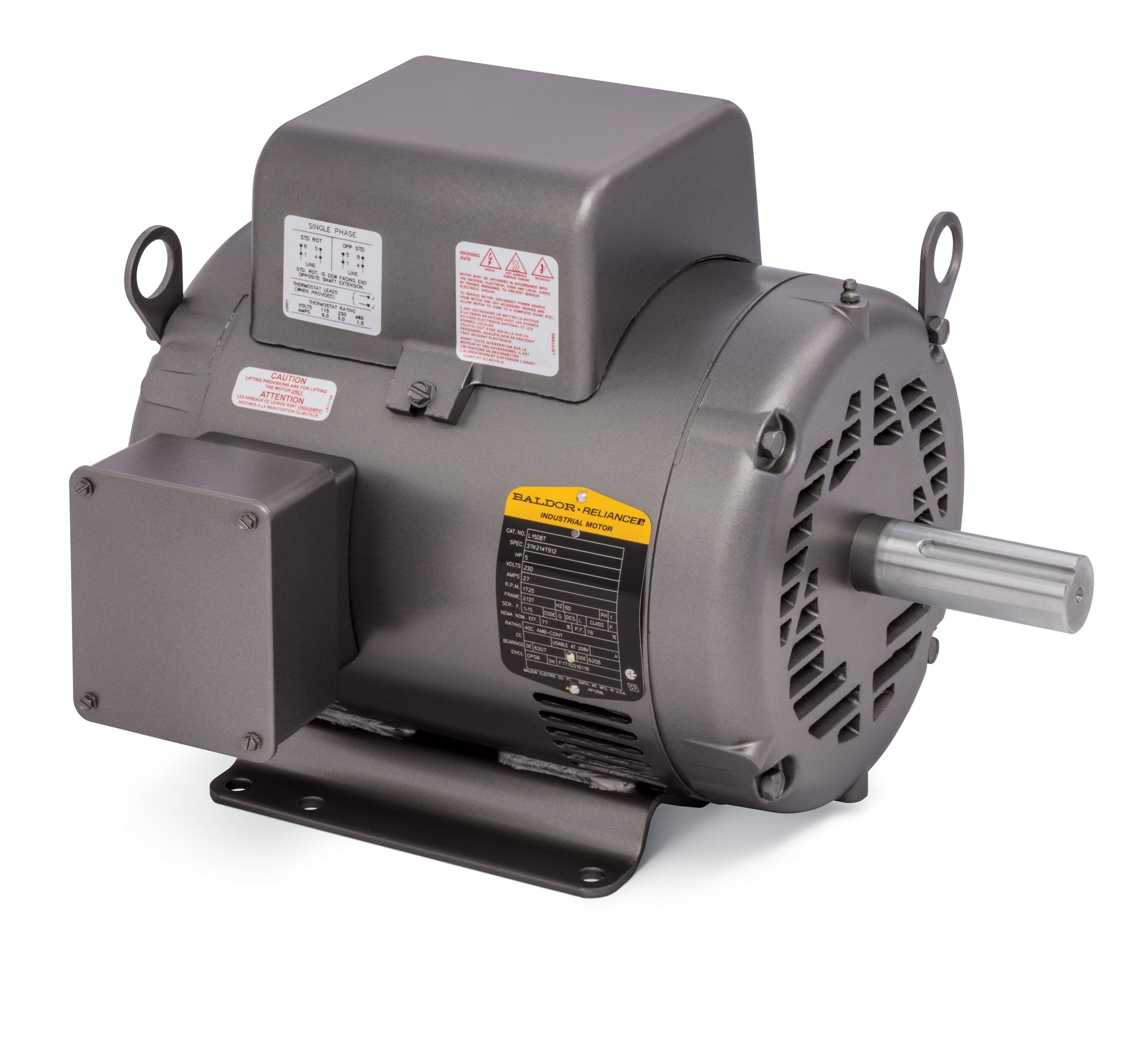

Baldor L1508T - 5 HP, 1745RPM, 1 Phase, 60HZ, 213T, 3727L, Opsb, F1 60HZ Single Phase Single Phase 5 HP

Save $562.75
BaldorSKU: L1508T

Price:
Sale price$1,688.25 Regular price$2,251.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Single Phase Open Motor - Model L1508T

Upgrade your pumping system with the Baldor L1508T, a high-performance single-phase motor designed for reliability and efficiency. This robust motor delivers 5 HP of power at 1745 RPM, making it ideal for various applications requiring dependable performance.

Specifications:

  • Power: 5 HP
  • Speed: 1745 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame Size: 213T
  • Model Number: 3727L
  • Type: Open
  • Product Code: L1508T

This Baldor-Reliance motor is perfect for those looking for a reliable solution in AC motors, specifically designed for pump applications. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L1508T to ensure compatibility. Don’t hesitate to reach out if you need help!

UPC 781568101674
Supplier Part Number L1508T
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 108.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1508T
Current @ Voltage 27.000 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 77.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 213T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 27.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 12 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3727L
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 16.32 IN
Phase 1
Power Factor 78
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
