Baldor L1410T - 5 HP, 1725RPM, 1 Phase, 60HZ, 184T, 3640LC, Open, F1 60HZ Single Phase Single Phase 5 HP

Save $379.25
BaldorSKU: L1410T

Price:
Sale price$1,137.75 Regular price$1,517.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

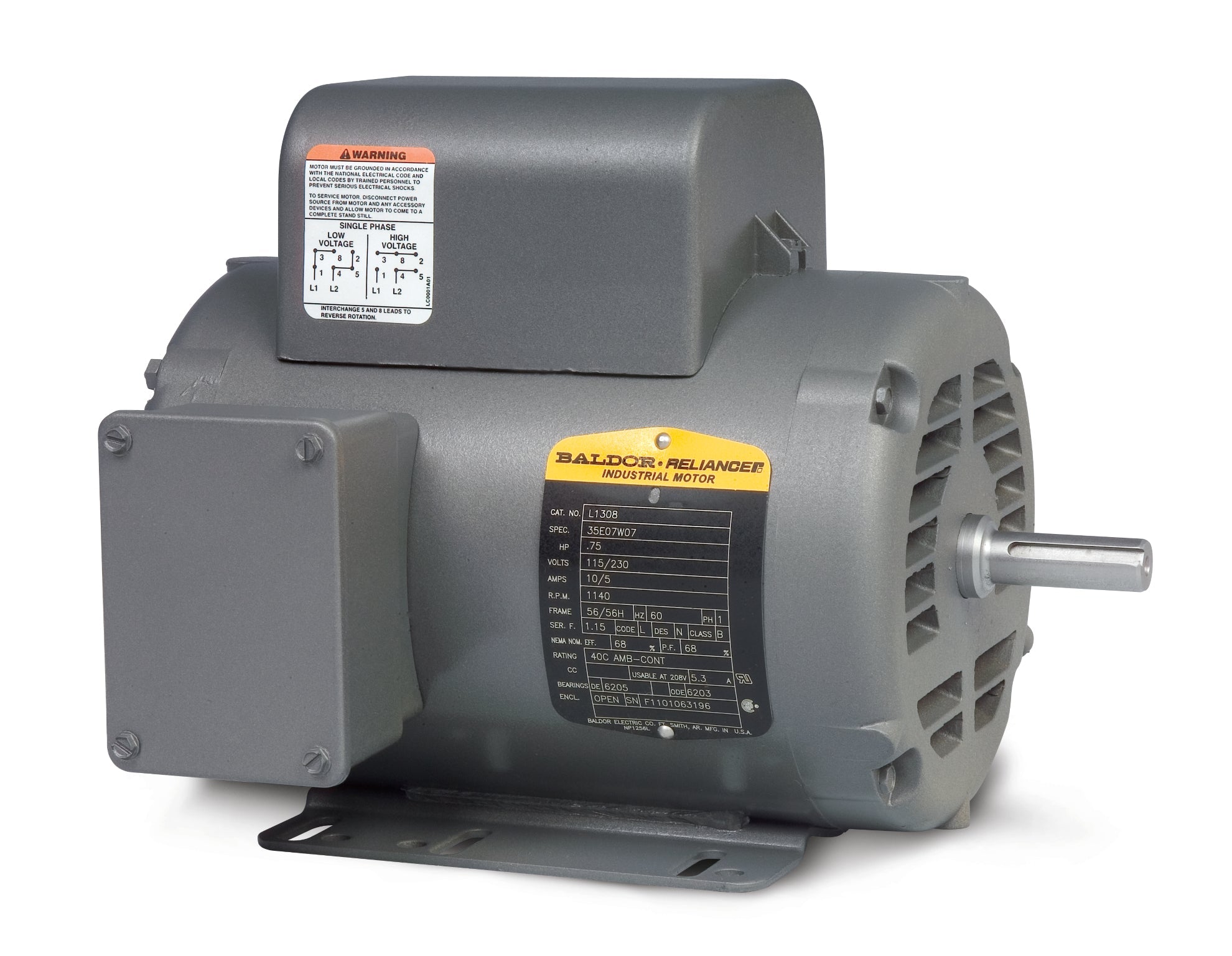

Baldor-Reliance Single Phase Open Motor - Model L1410T

Discover the power and reliability of the Baldor L1410T motor, designed for optimal performance in various applications. This robust 5 HP motor operates at 1725 RPM and is engineered for single-phase operation at 60Hz. With a frame size of 184T and a design that features an open construction, this motor is perfect for those seeking efficiency and durability.

Whether you're replacing an existing motor or upgrading your equipment, the Baldor L1410T is an excellent choice for your needs. As a trusted vendor, Baldor ensures high-quality manufacturing standards, making this motor a reliable option for your projects.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L1410T to ensure compatibility. If you're having trouble locating the right item, our team is here to help!

Specifications:

  • Power: 5 HP
  • Speed: 1725 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 184T
  • Type: Open
  • Product Code: L1410T

Upgrade your equipment with the Baldor L1410T motor today and experience the difference in performance and reliability!

UPC 781568101650
Supplier Part Number L1410T
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 81.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1410T
Current @ Voltage 21.000 A @ 230.0 V, 23.000 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 184T
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 21.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 10 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3640LC
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 16.49 IN
Phase 1
Power Factor 95
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
