Baldor L1408T-50 - 3/2.2KW, 1450RPM, 1 Phase, 50HZ, 184T, 3646LC, Ope 50HZ Single Phase Single Phase

Save $413.75
BaldorSKU: L1408T-50

Price:
Sale price$1,241.25 Regular price$1,655.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

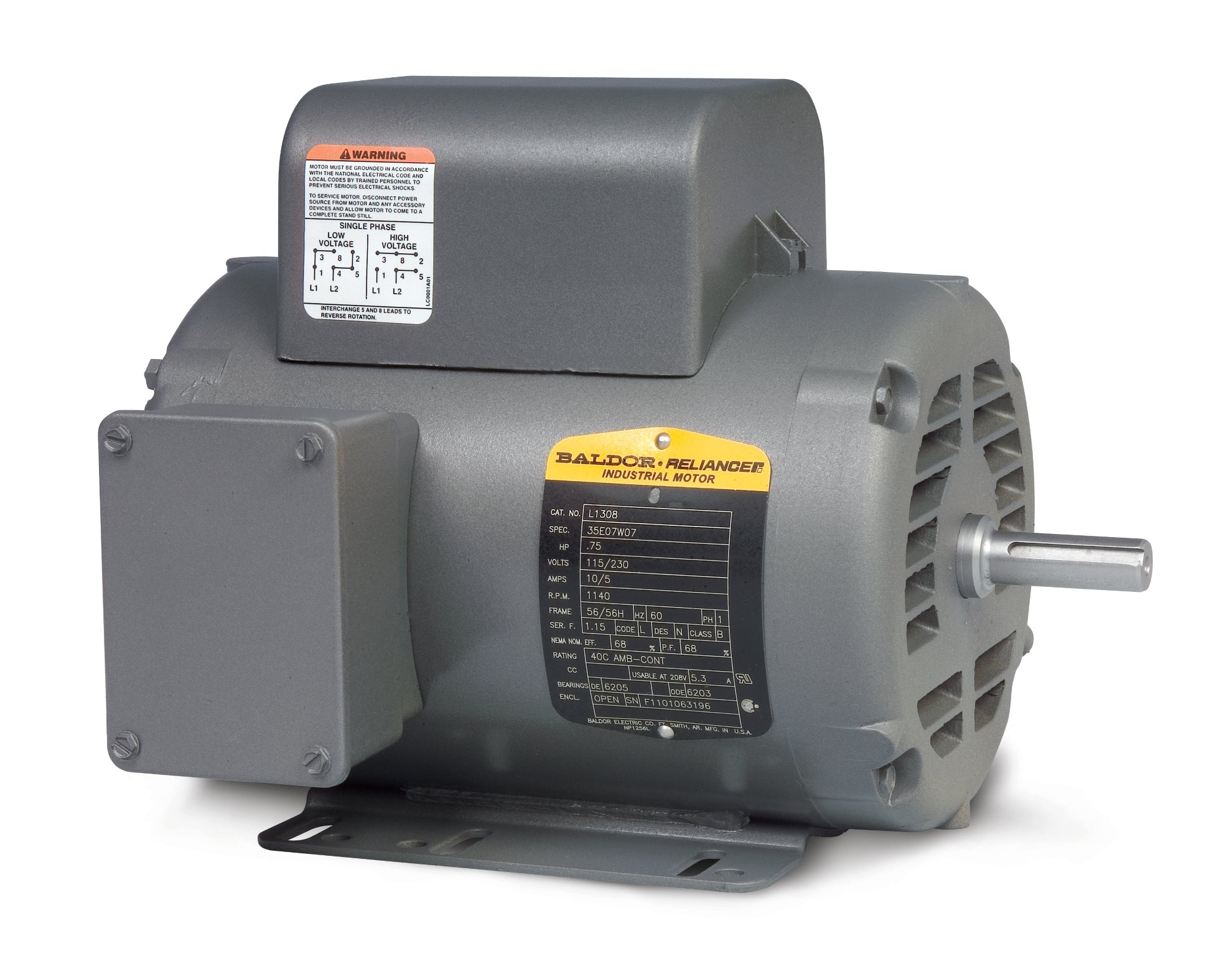

Baldor-Reliance L1408T-50 Single Phase Open Motor

The Baldor-Reliance L1408T-50 is a high-performance single phase open motor designed for reliable operation in various applications. With a power output of 3/2.2KW and a speed of 1450 RPM, this motor is ideal for those seeking efficiency and durability. Operating at 50HZ, it features a 184T frame and is classified under the 3646LC category, ensuring compatibility with a wide range of equipment.

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure a perfect match. If you encounter any difficulties, our team is here to help you find the right item.

Product Specifications:

  • Product Code: L1408T-50
  • Type: Single Phase Open
  • Power: 3/2.2KW
  • Speed: 1450 RPM
  • Phase: 1PH
  • Frequency: 50HZ
  • Frame Size: 184T
  • Category: 3646LC

Choose the Baldor-Reliance L1408T-50 for your motor needs and experience the quality and reliability that Baldor is known for.

UPC 781568119921
Supplier Part Number L1408T-50
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 91.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1408T-50
Current @ Voltage 12.000 A @ 220.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 84.3 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 184T
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 12.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3646LC
Mounting Arrangement F1
Number of Poles 4
Output 2.200 kW
Output @ Frequency 2.200 KW @ 50 HZ
Overall Length 16.50 IN
Phase 1
Power Factor 99
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 220 V
Voltage @ Frequency 220.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
