Baldor L1405T-50 - 2/1.5KW, 1460RPM, 1 Phase, 50HZ, 182T, 3646LC, Ope 50HZ Single Phase Single Phase

Save $382.75
BaldorSKU: L1405T-50

Price:
Sale price$1,148.25 Regular price$1,531.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

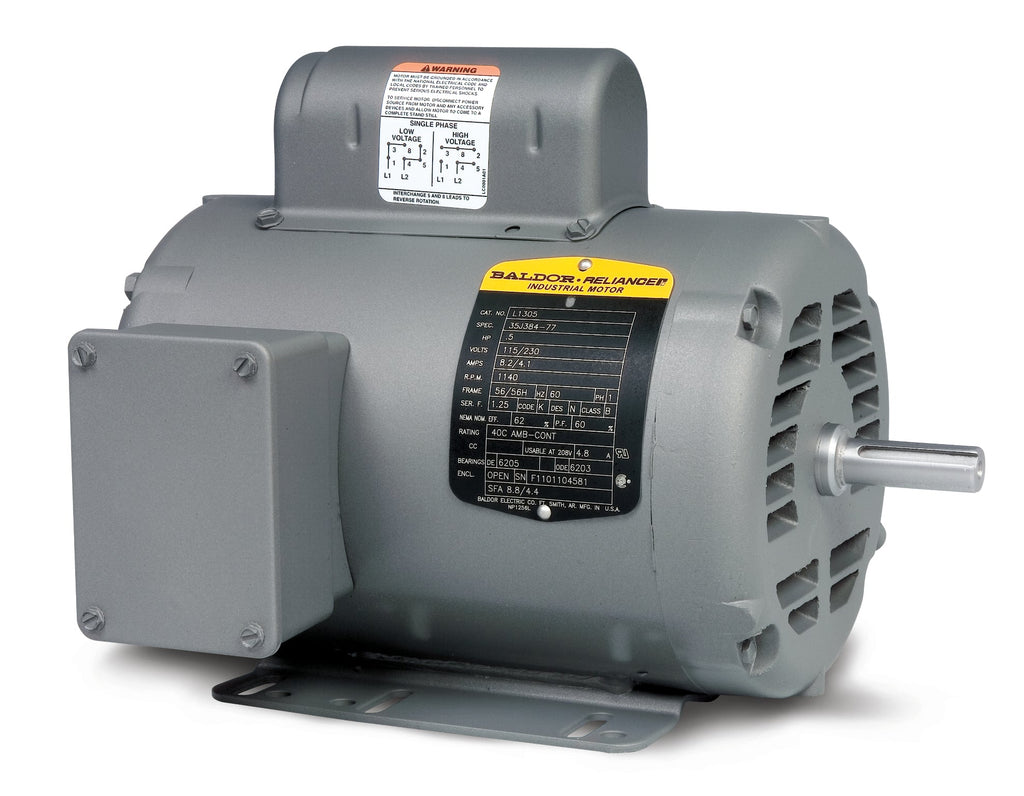

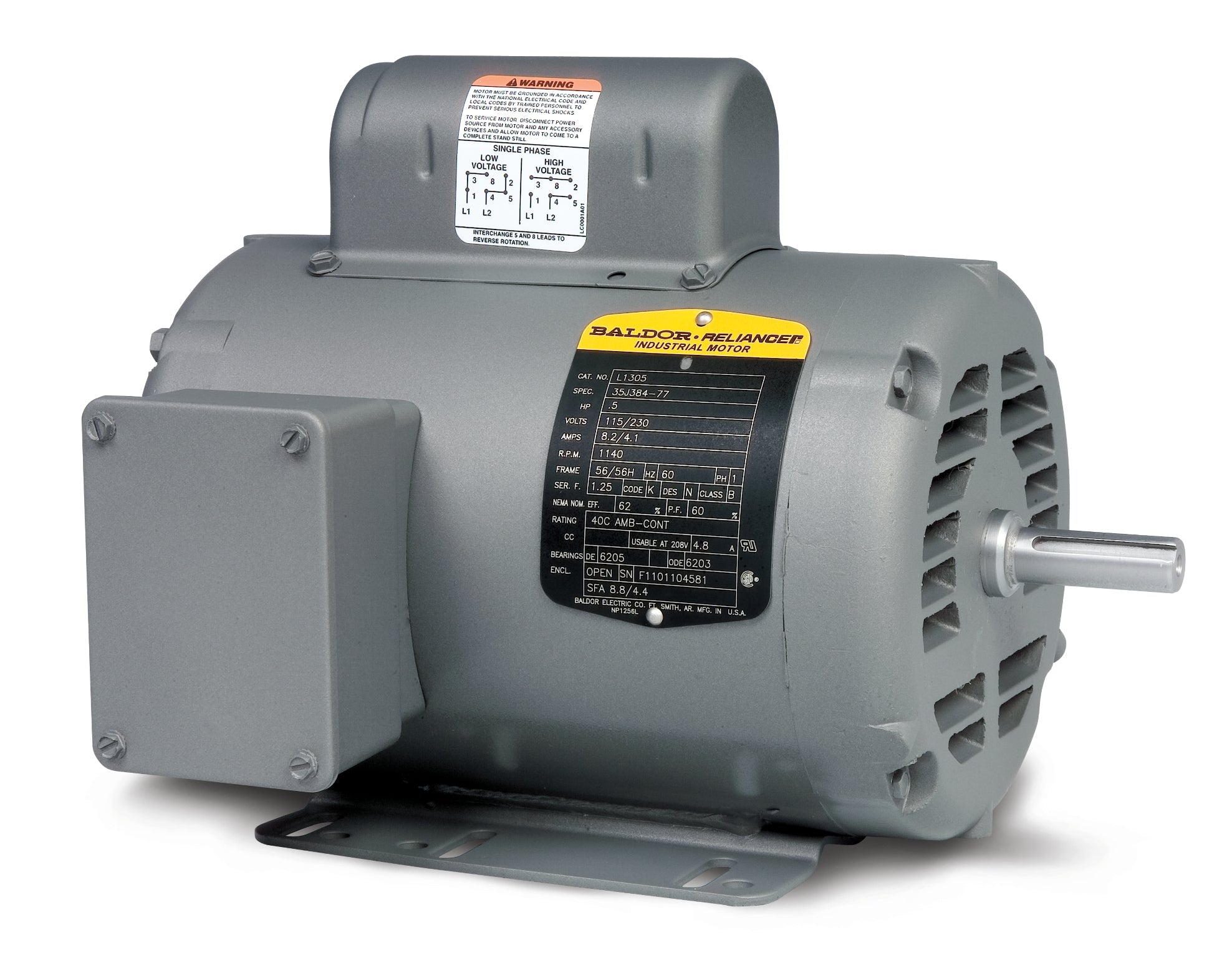

Baldor-Reliance L1405T-50 Single Phase Open Motor

Discover the reliability and performance of the Baldor-Reliance L1405T-50 motor, designed for efficient operation in various applications. This single-phase open motor features a power output of 2/1.5KW and operates at a speed of 1460 RPM, making it an ideal choice for your pumping needs.

  • Power: 2/1.5KW
  • Speed: 1460 RPM
  • Phase: 1 Phase
  • Frequency: 50HZ
  • Frame Size: 182T
  • Product Code: L1405T-50

This motor is part of the Baldor-Reliance range, known for its durability and efficiency in various industrial applications. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don't hesitate to reach out if you need help locating the right item!

UPC 781568119914
Supplier Part Number L1405T-50
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 66.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1405T-50
Current @ Voltage 18.400 A @ 110.0 V, 9.200 A @ 220.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.8 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 182T
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 9.2 a
Insulation Class F
Inverter Code Not Inverter
IP Rating NONE
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 14 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3646LC
Mounting Arrangement F1
Number of Poles 4
Output 1.500 kW
Output @ Frequency 1.500 KW @ 50 HZ
Overall Length 16.50 IN
Phase 1
Power Factor 90
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1460 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 110 V, 220 V
Voltage @ Frequency 220.0 V @ 50 HZ, 110.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
