Baldor L1401M - 1 HP, 1725RPM, 1 Phase, 60HZ, 182, 3617L, Open, F1 60HZ Single Phase 1 HP

Save $357.00
BaldorSKU: L1401M

Price:
Sale price$1,071.00 Regular price$1,428.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

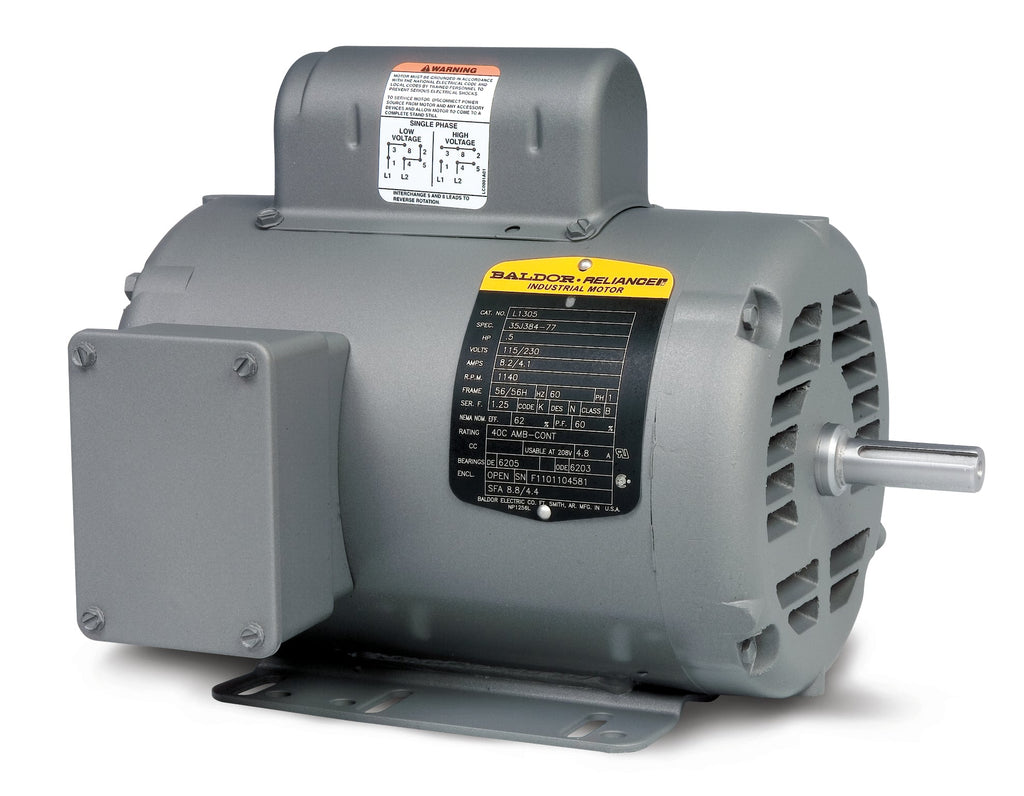

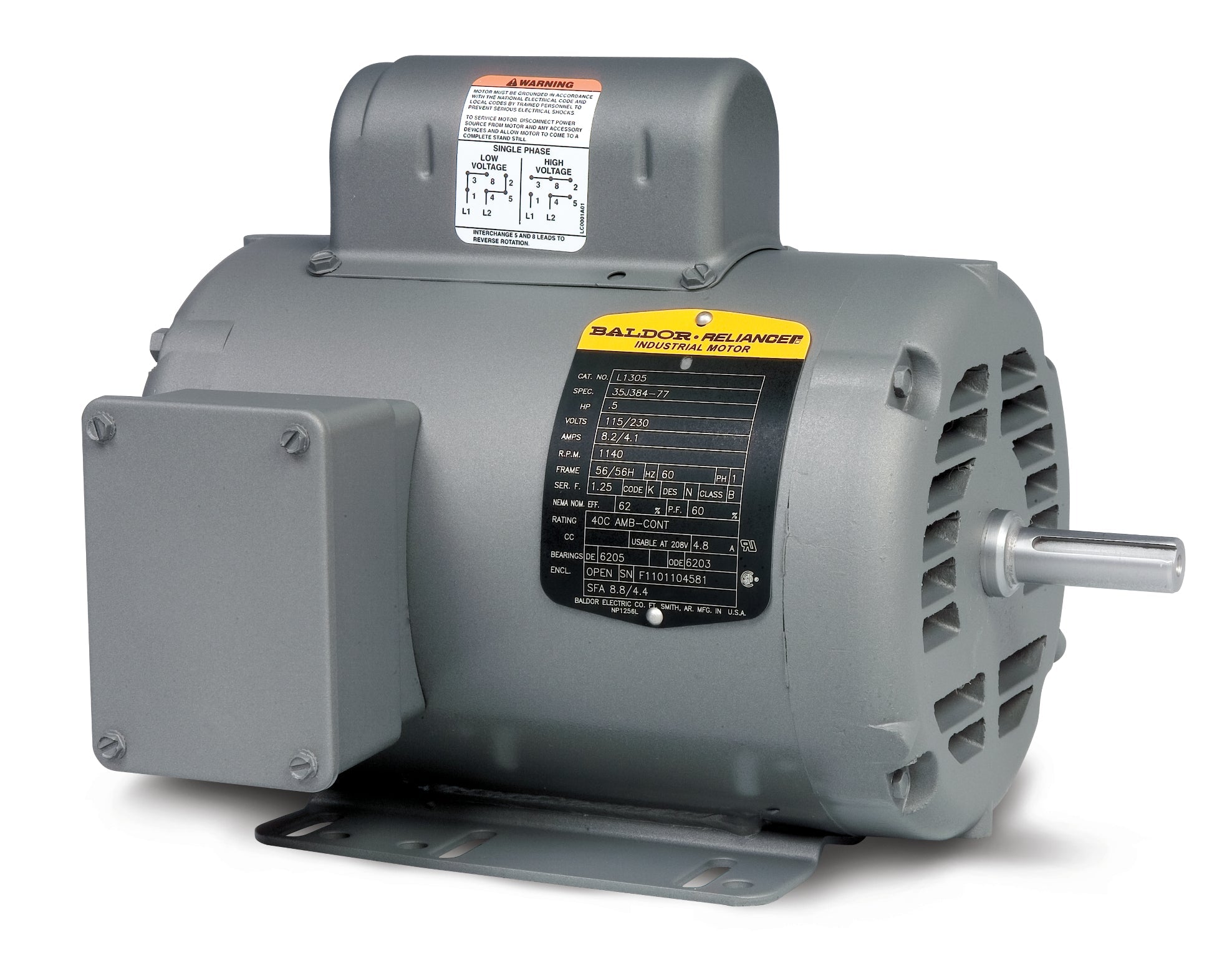

Baldor L1401M U-Frame Motor

The Baldor L1401M is a high-performance U-Frame motor designed for reliable operation in various applications. With a power output of 1 HP and a speed of 1725 RPM, this single-phase motor operates at 60Hz, making it an ideal choice for your pumping needs.

Specifications:

  • Power: 1 HP
  • Speed: 1725 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 182
  • Open Design: Yes
  • Product Code: L1401M

This Baldor-Reliance motor is perfect for applications requiring durability and efficiency. As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right components for your needs. If you have questions or need assistance locating the correct pump, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568101346
Supplier Part Number L1401M
Category AC Motors
Subcategory U-Frame Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 49.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1401M
Current @ Voltage 14.000 A @ 115.0 V, 7.000 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 182
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 7.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3617L
Mounting Arrangement F1
Number of Poles 4
Output 1.000 hp
Output @ Frequency 1.000 HP @ 60 HZ
Overall Length 12.75 IN
Phase 1
Power Factor 66
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Manual Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
