Baldor L1319-50 - 1.5/1.1KW, 1460RPM, 1 Phase, 50HZ, 56, 3540LC, Ope 50HZ Single Phase Single Phase

Save $329.25
BaldorSKU: L1319-50

Price:
Sale price$987.75 Regular price$1,317.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

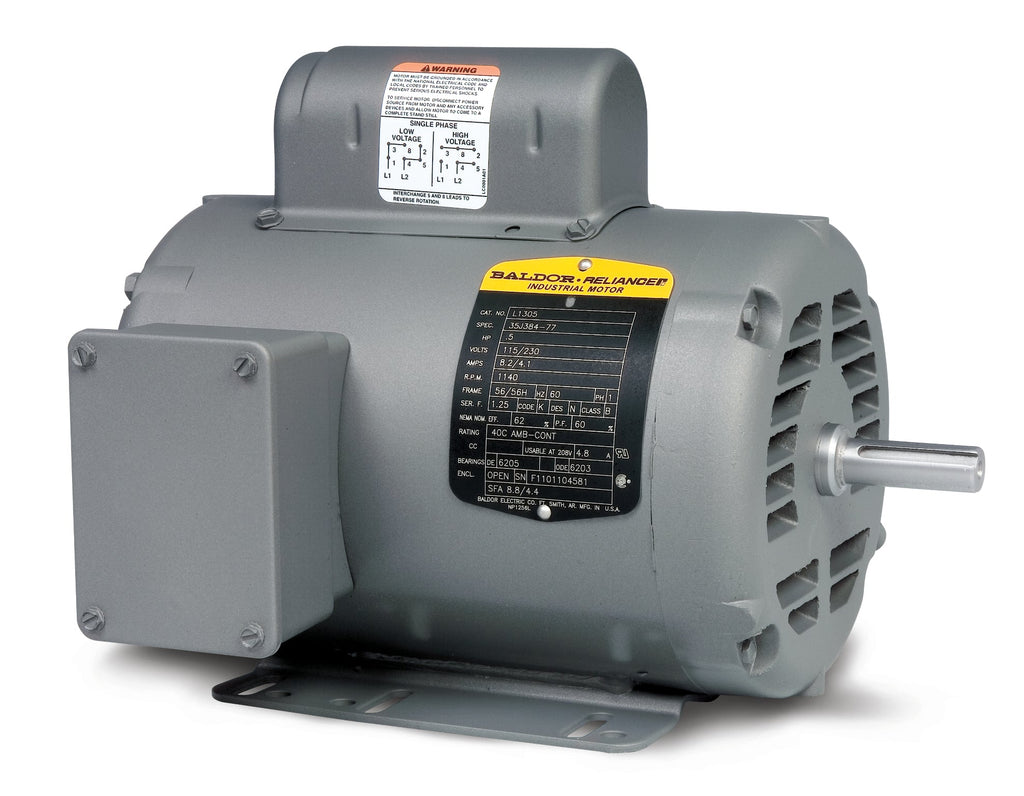

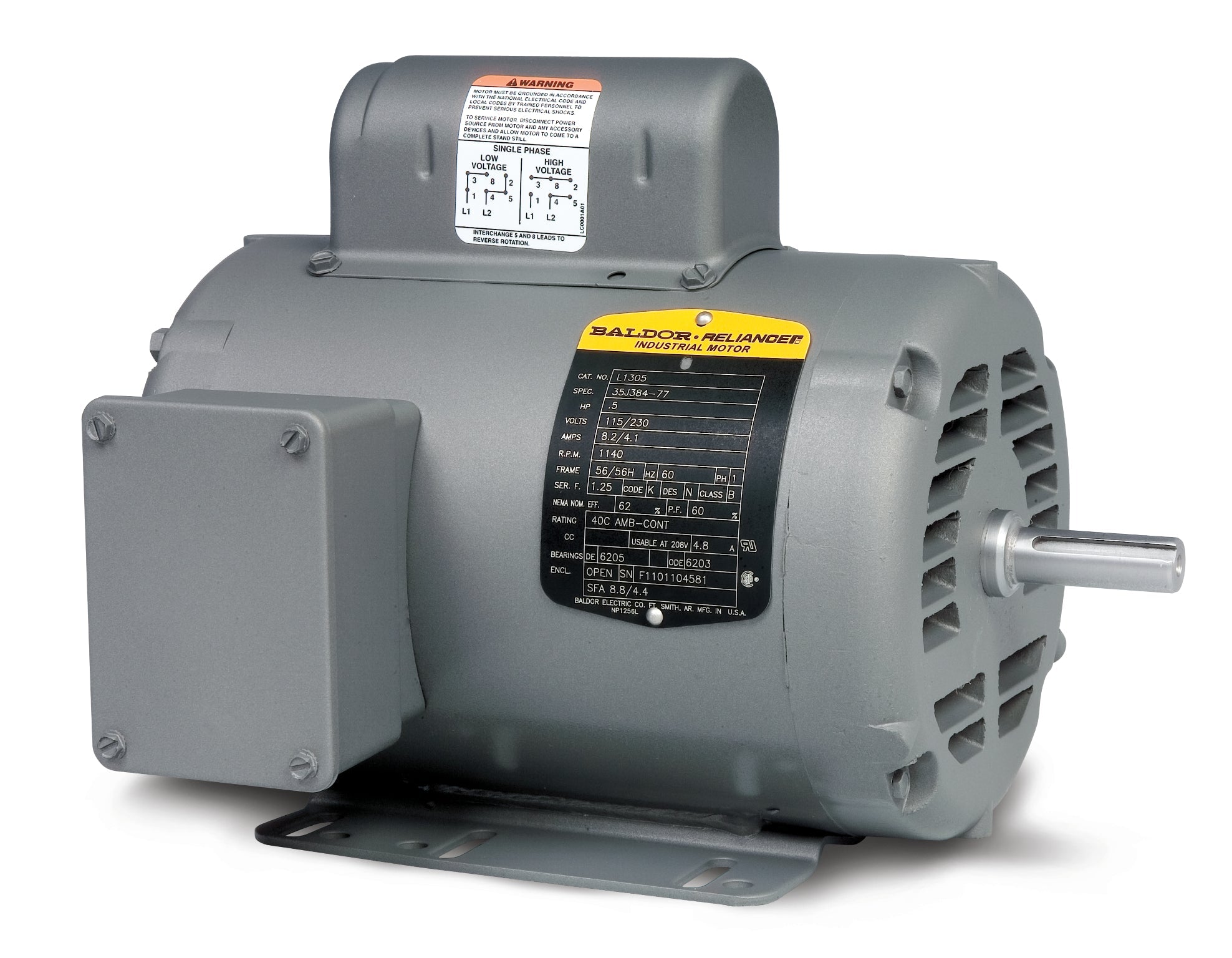

Baldor-Reliance Single Phase Open Motor - Model L1319-50

Discover the reliability and performance of the Baldor L1319-50 motor, designed for efficient operation in various applications. This single-phase open motor delivers a power output of 1.5/1.1KW and operates at a speed of 1460 RPM. With a frequency of 50HZ, this motor is ideal for those seeking a robust solution for their pumping needs.

Key Specifications:

  • Power: 1.5/1.1KW
  • Speed: 1460 RPM
  • Phase: Single Phase
  • Frequency: 50HZ
  • Frame Size: 56
  • Product Code: L1319-50

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L1319-50 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568119891
Supplier Part Number L1319-50
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 41.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1319-50
Current @ Voltage 6.200 A @ 220.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 81.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.2 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Finish CLEAR COAT
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3540LC
Mounting Arrangement F1
Number of Poles 4
Output 1.100 kW
Output @ Frequency 1.100 KW @ 50 HZ
Overall Length 14.32 IN
Phase 1
Power Factor 98
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1460 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 220 V
Voltage @ Frequency 220.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
