Baldor L1318-50 - 1/.75KW, 1460RPM, 1 Phase, 50HZ, 56, 3532LC, Open 50HZ Single Phase Single Phase

Save $285.75
BaldorSKU: L1318-50

Price:
Sale price$857.25 Regular price$1,143.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

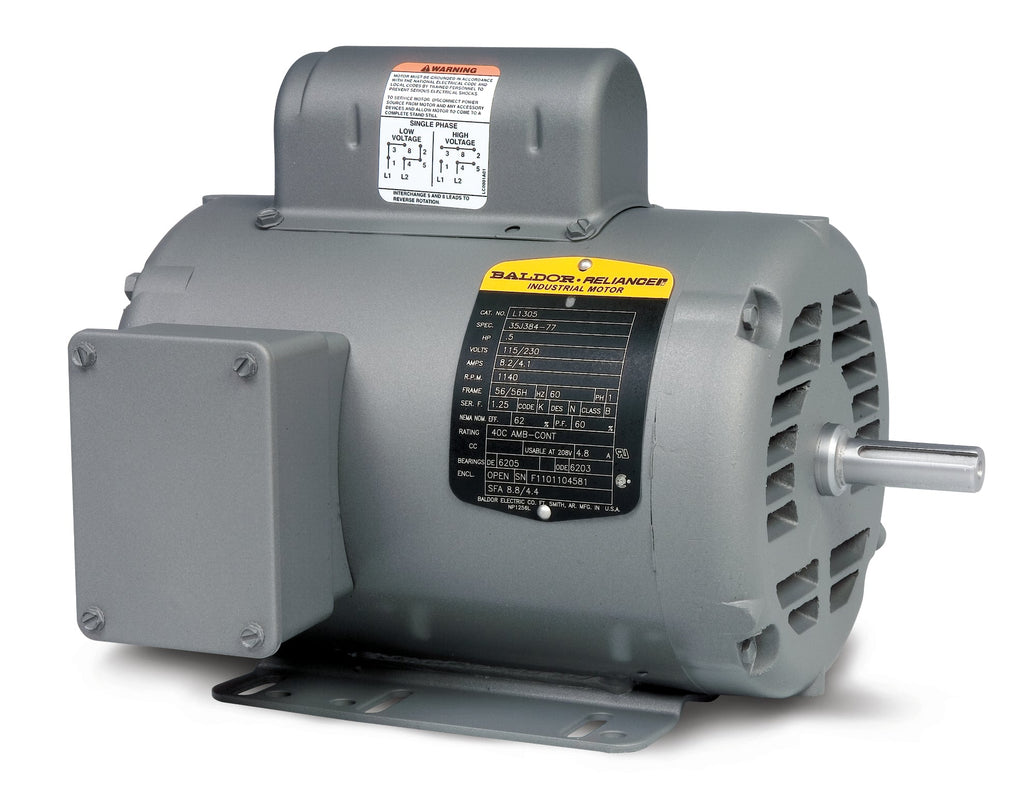

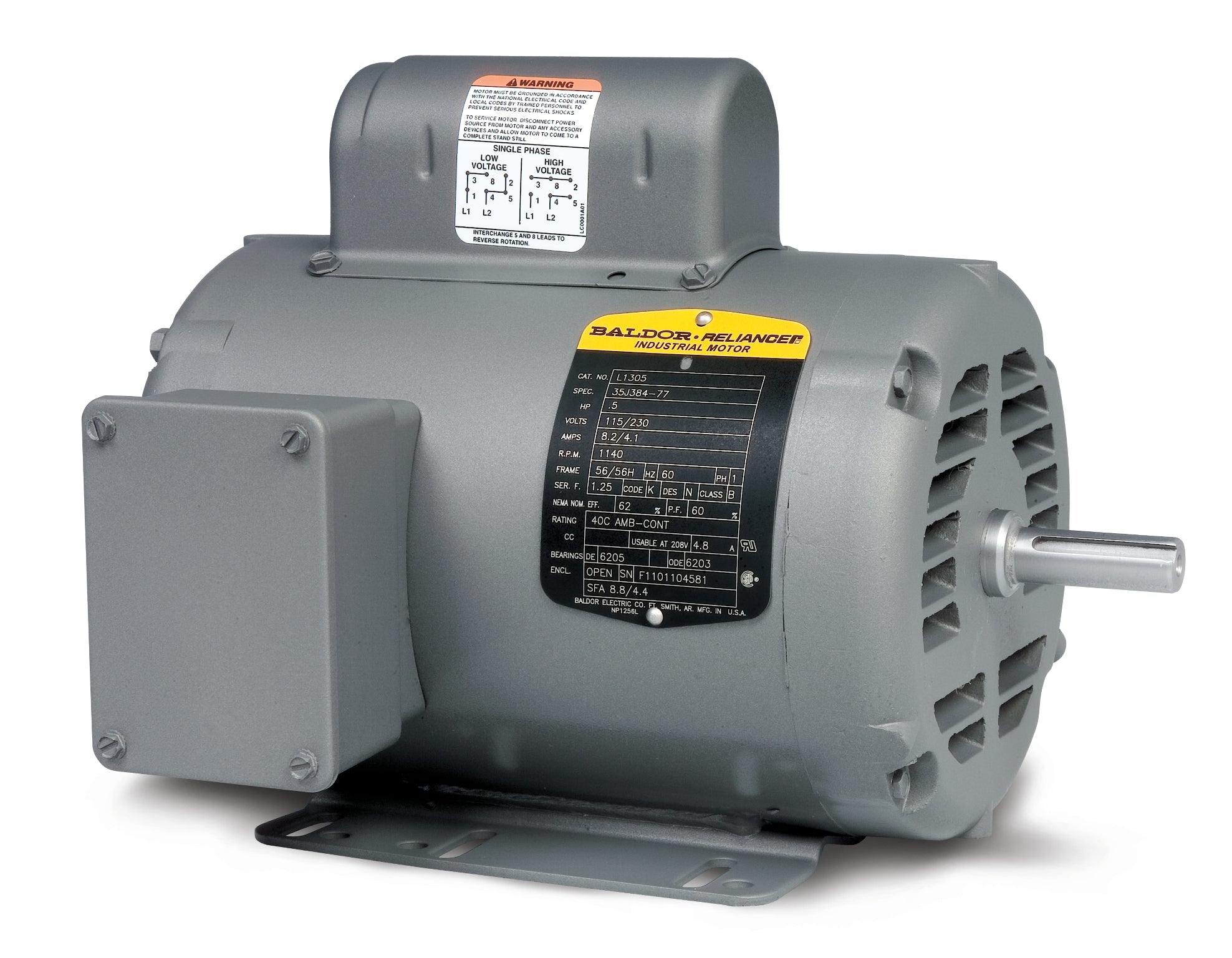

Baldor-Reliance Single Phase Open Motor - Model L1318-50

The Baldor L1318-50 is a high-performance single-phase open motor designed for reliable operation in various applications. With a power output of 1/.75KW and a speed of 1460 RPM, this motor is ideal for driving pumps and other machinery that require consistent performance. Operating at 50HZ, it is engineered to meet the demands of industrial and commercial environments.

Specifications:

  • Power: 1/.75KW
  • Speed: 1460 RPM
  • Phase: Single Phase
  • Frequency: 50HZ
  • Frame Size: 56
  • Product Code: L1318-50

This Baldor-Reliance motor is categorized under AC Motors and is a preferred choice for those seeking durable and efficient pump motors. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor L1318-50. If you encounter any difficulties in locating the right item, do not hesitate to reach out to our knowledgeable team for support.

UPC 781568119877
Supplier Part Number L1318-50
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 42.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1318-50
Current @ Voltage 4.600 A @ 220.0 V, 9.200 A @ 110.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 79.6 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 4.6 a
Insulation Class F
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Finish CLEAR COAT
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3532LC
Mounting Arrangement F1
Number of Poles 4
Output 0.750 kW
Output @ Frequency .750 KW @ 50 HZ
Overall Length 12.94 IN
Phase 1
Power Factor 93
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1460 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 220 V, 110 V
Voltage @ Frequency 220.0 V @ 50 HZ, 110.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
