Baldor L1317-50 - 2/1.5KW, 2910RPM, 1 Phase, 50HZ, 56, 3536LC, Open 50HZ Single Phase Single Phase

Save $361.00
BaldorSKU: L1317-50

Price:
Sale price$1,083.00 Regular price$1,444.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

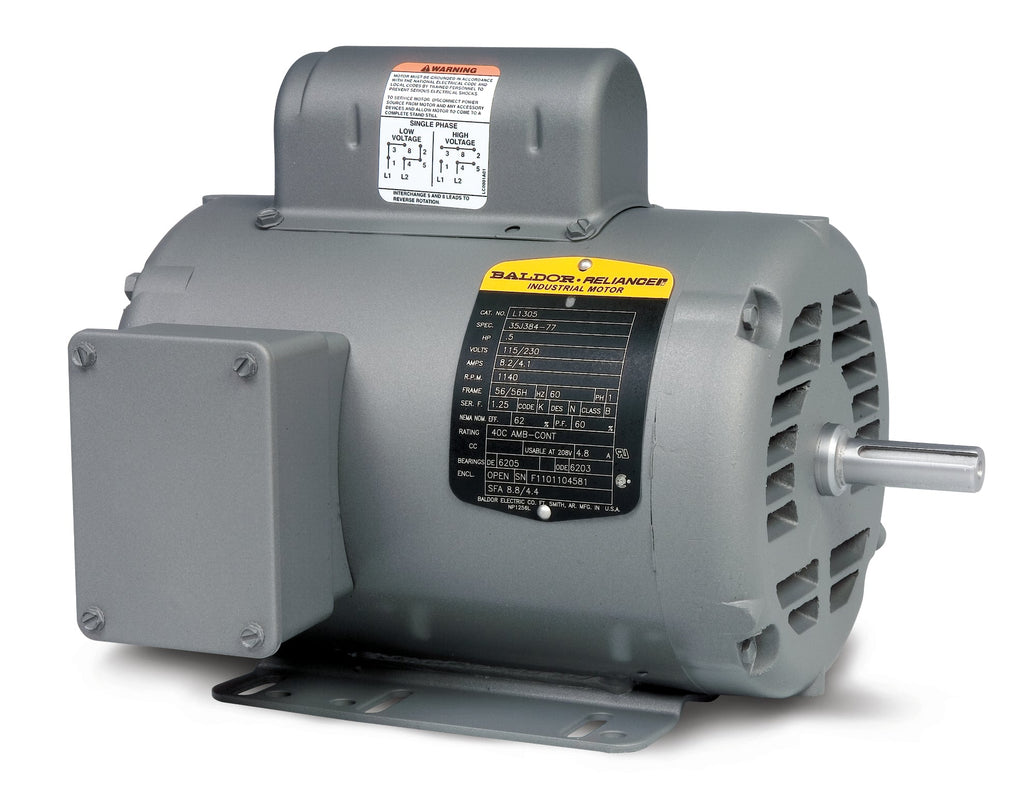

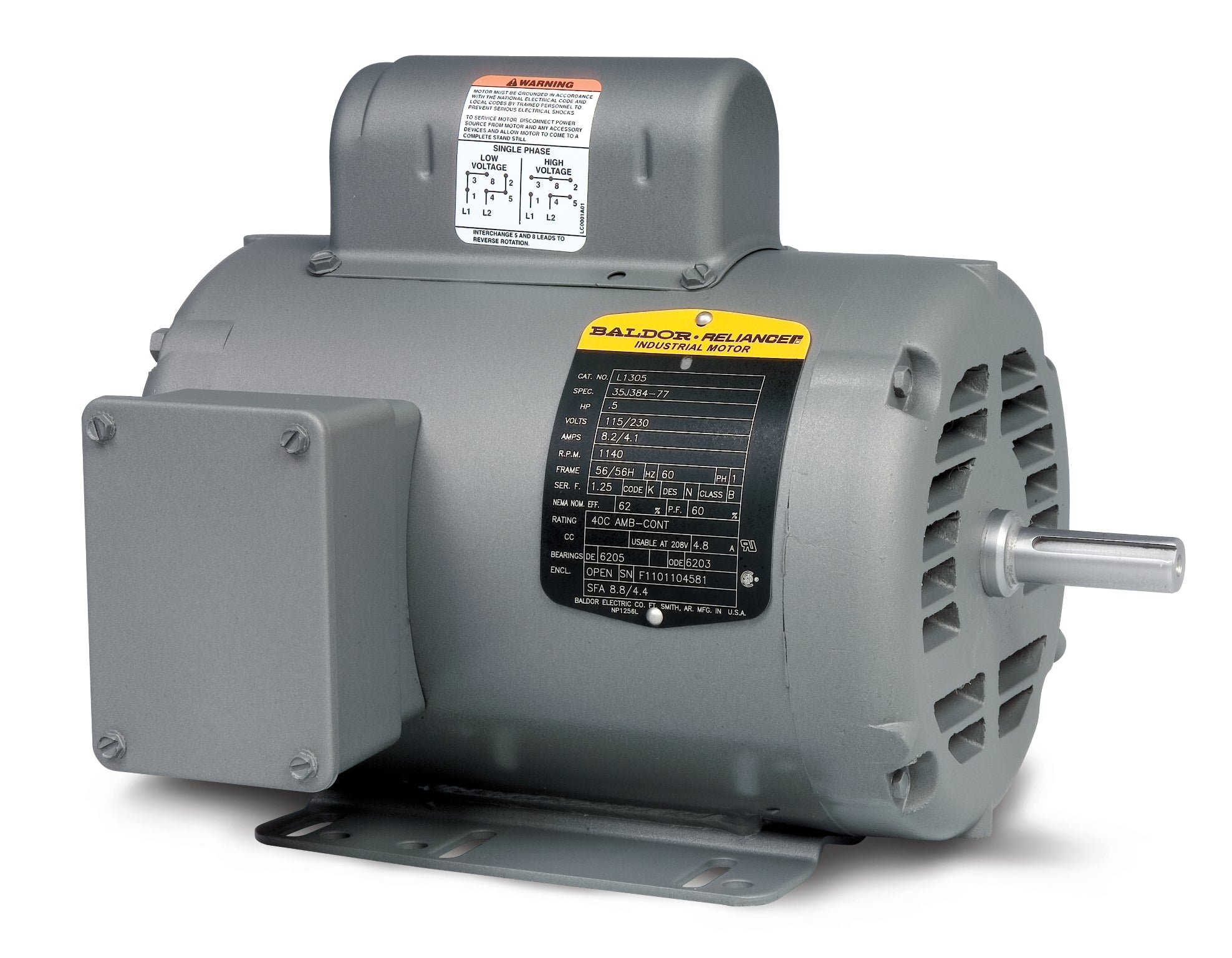

Baldor-Reliance Single Phase Open Motor - Model L1317-50

The Baldor L1317-50 is a high-performance single-phase open motor designed for various applications requiring reliable power and efficiency. With a power output of 2/1.5KW and a speed of 2910 RPM, this motor operates at 50HZ, making it ideal for a range of industrial and commercial uses.

Specifications:

  • Power: 2/1.5KW
  • Speed: 2910 RPM
  • Phase: Single Phase
  • Frequency: 50HZ
  • Frame Size: 56
  • Model: 3536LC
  • Type: Open

As a trusted supplier of pumps and parts, Pump-Stop is your preferred source for replacement pumps and components. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L1317-50 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568119907
Supplier Part Number L1317-50
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 47.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1317-50
Current @ Voltage 8.100 A @ 220.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 84.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 8.1 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 14 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3536LC
Mounting Arrangement F1
Number of Poles 2
Output 1.500 kW
Output @ Frequency 1.500 KW @ 50 HZ
Overall Length 14.32 IN
Phase 1
Power Factor 98
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 2910 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 220 V
Voltage @ Frequency 220.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
