Baldor L1313-50 - 1.5/1.1KW, 2920RPM, 1 Phase, 50HZ, 56, 3530LC, Ope 50HZ Single Phase Single Phase

Save $271.00
BaldorSKU: L1313-50

Price:
Sale price$813.00 Regular price$1,084.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

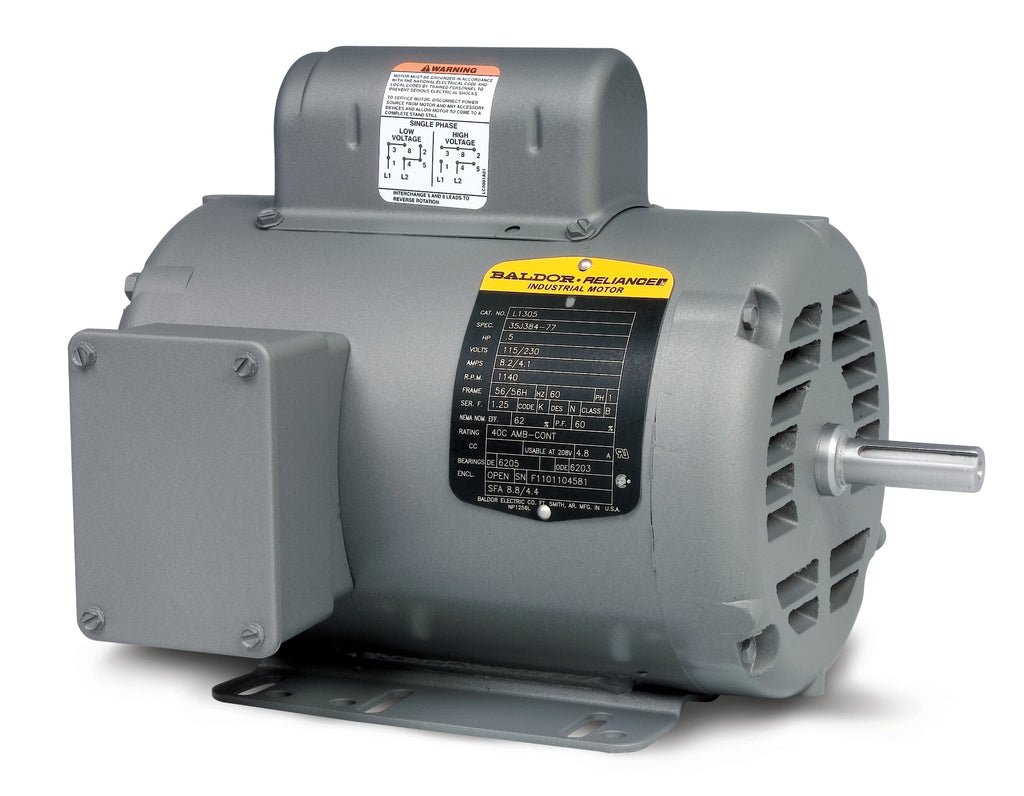

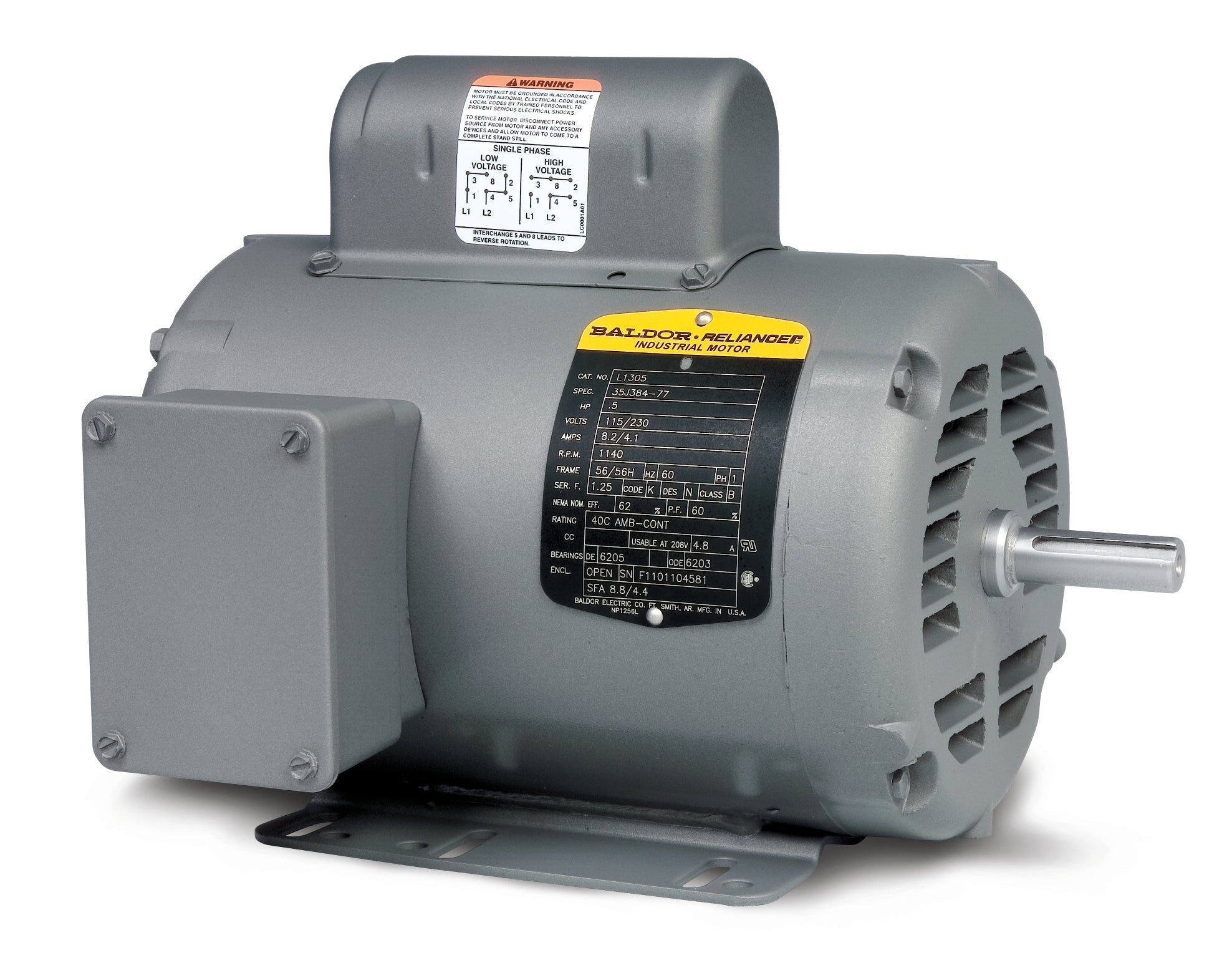

Baldor-Reliance Single Phase Open Motor - Model L1313-50

Discover the reliability and performance of the Baldor L1313-50 motor, designed for efficient operation in various applications. This single-phase open motor delivers a power output of 1.5/1.1KW and operates at a speed of 2920 RPM. With a frequency of 50HZ and a frame size of 56, this motor is ideal for those seeking a robust solution for their pumping needs.

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and durability, making it a perfect choice for your pumping systems. Whether you are replacing an old motor or upgrading your equipment, the Baldor L1313-50 is a reliable option.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L1313-50. If you encounter any difficulties, our team is here to help you find the perfect solution.

Product Specifications:

  • Model: L1313-50
  • Power: 1.5/1.1KW
  • Speed: 2920 RPM
  • Phase: Single Phase
  • Frequency: 50HZ
  • Frame Size: 56
  • Type: Open

Upgrade your pumping system with the Baldor L1313-50 motor today!

UPC 781568119884
Supplier Part Number L1313-50
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals C UR US, CE, CURUS, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 43.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1313-50
Current @ Voltage 6.100 A @ 220.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 50.00 Hz
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 6.1 a
Insulation Class B
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Quantity/Wire Size 2 @ 16 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3530LC
Mounting Arrangement F1
Number of Poles 2
Output 1.100 kW
Output @ Frequency 1.100 KW @ 50 HZ
Overall Length 12.94 IN
Phase 1
Power Factor 98
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 2920 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 220 V
Voltage @ Frequency 220.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
