Baldor L1304-50 - .5/.37KW, 1440RPM, 1 Phase, 50HZ, 56, 3424LC, ODP 50HZ Single Phase Single Phase

Save $189.75
BaldorSKU: L1304-50

Price:
Sale price$569.25 Regular price$759.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

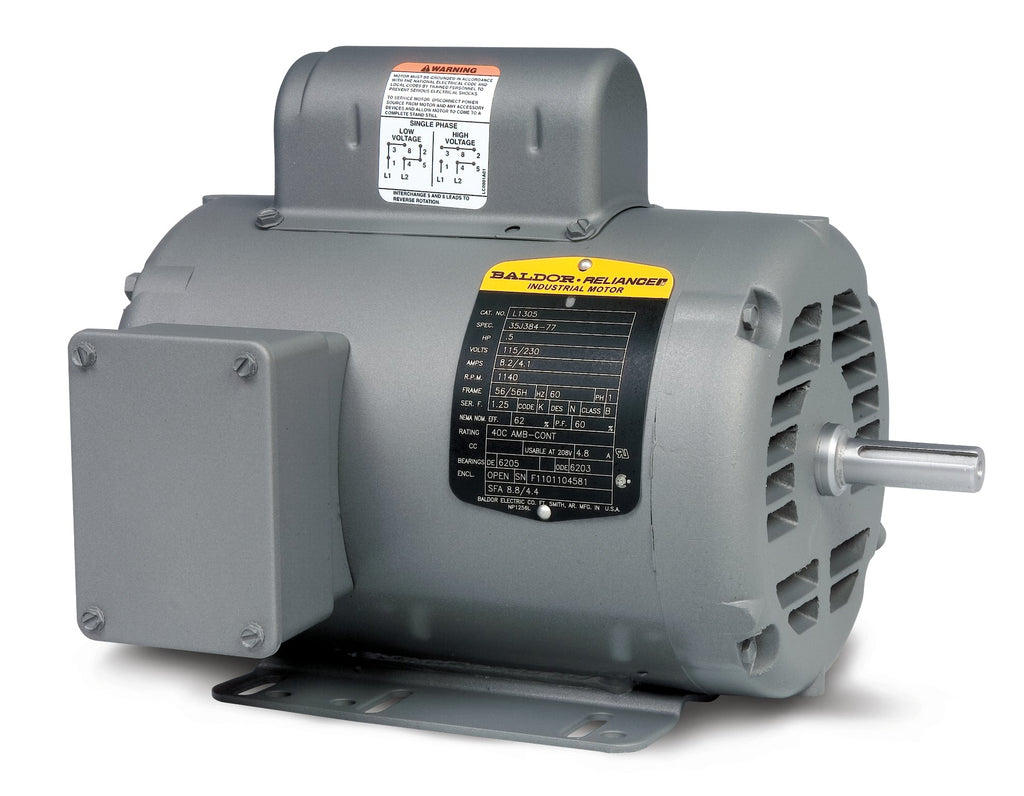

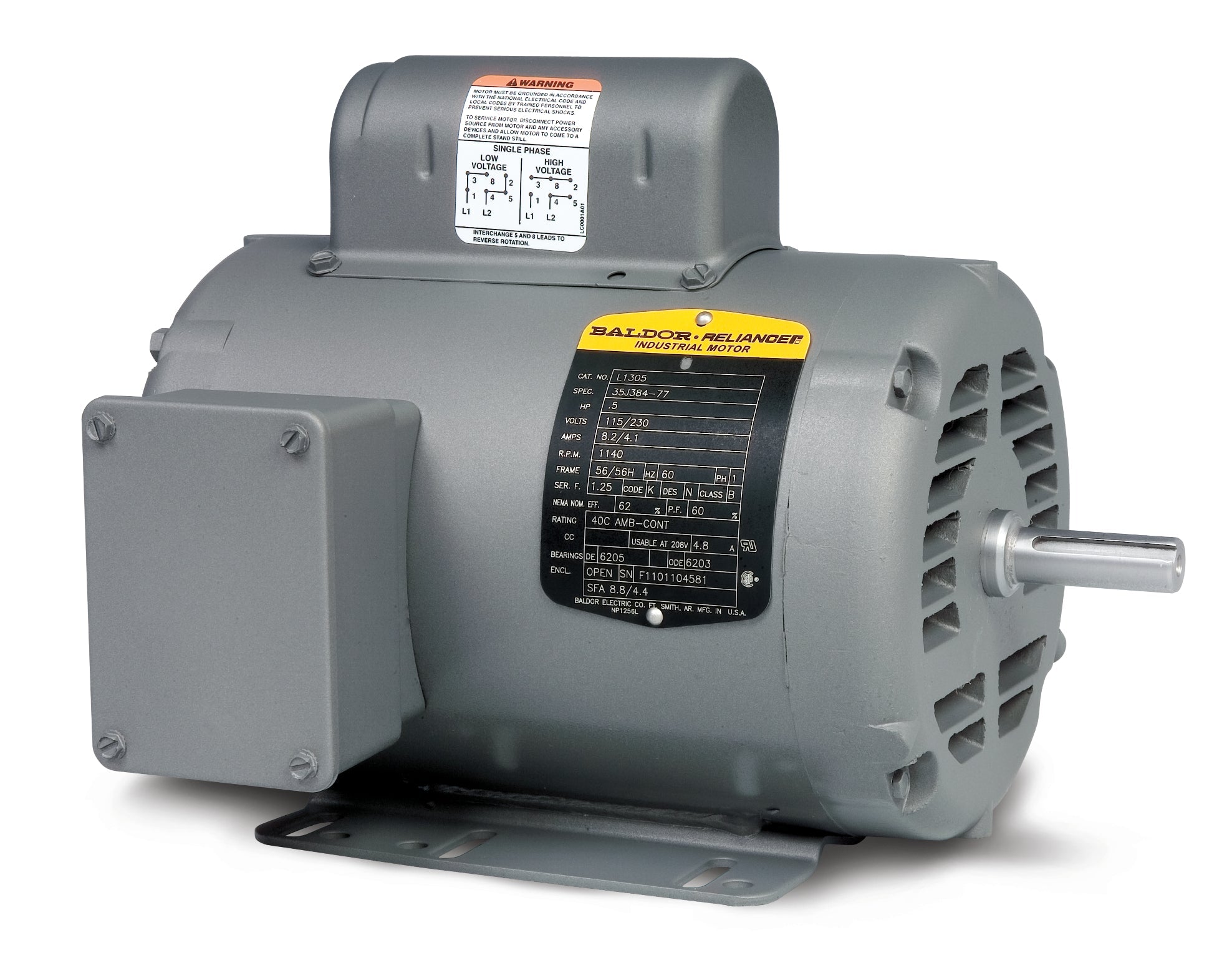

Baldor L1304-50 Single Phase Open Motor

The Baldor L1304-50 is a high-performance single phase open motor designed for reliable operation in various applications. With a power output of .5/.37KW and a speed of 1440 RPM, this motor is ideal for those seeking efficiency and durability. Operating at 50HZ, it features a 56 frame size and is classified as ODP (Open Drip Proof), making it suitable for a range of environments.

Key Specifications:

  • Power: .5/.37KW
  • Speed: 1440 RPM
  • Phase: 1 Phase
  • Frequency: 50HZ
  • Frame Size: 56
  • Product Code: L1304-50

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor L1304-50 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568119839
Supplier Part Number L1304-50
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals C UR US, CE, CURUS, UKCA, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 29.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1304-50
Current @ Voltage 5.200 A @ 110.0 V, 2.600 A @ 220.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 72.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56
Frame Material Steel
Frequency 50.00 Hz
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.6 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3424LC
Mounting Arrangement F1
Number of Poles 4
Output 0.370 kW
Output @ Frequency .370 KW @ 50 HZ
Overall Length 11.00 IN
Phase 1
Power Factor 89
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1440 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 220 V, 110 V
Voltage @ Frequency 220.0 V @ 50 HZ, 110.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
