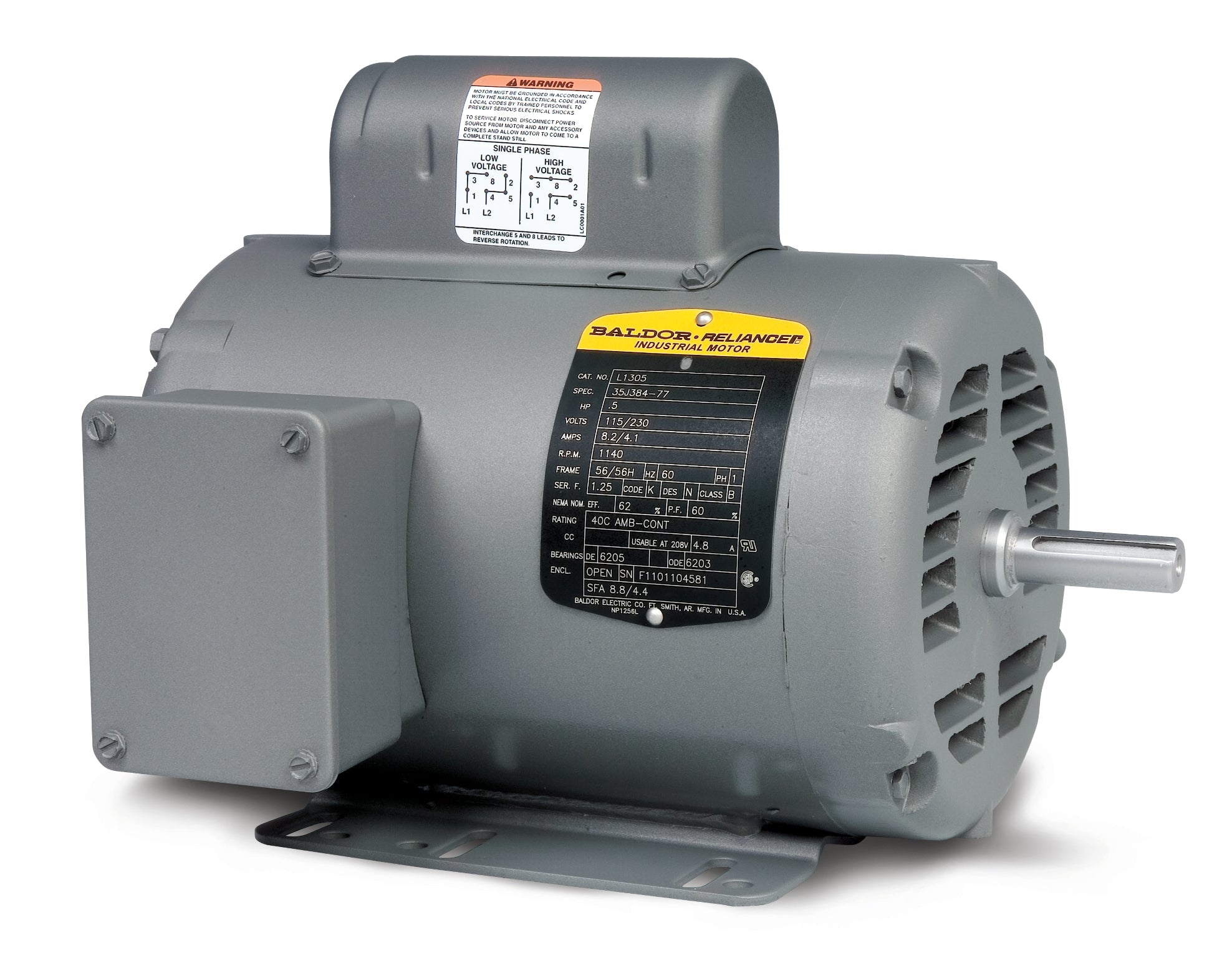

Baldor L1209-50 - .5 /kw .37, 1440RPM, 1 Phase, 50HZ, 48, 3424LC, Op 50HZ Single Phase Single Phase

Save $209.25
BaldorSKU: L1209-50

Price:
Sale price$627.75 Regular price$837.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

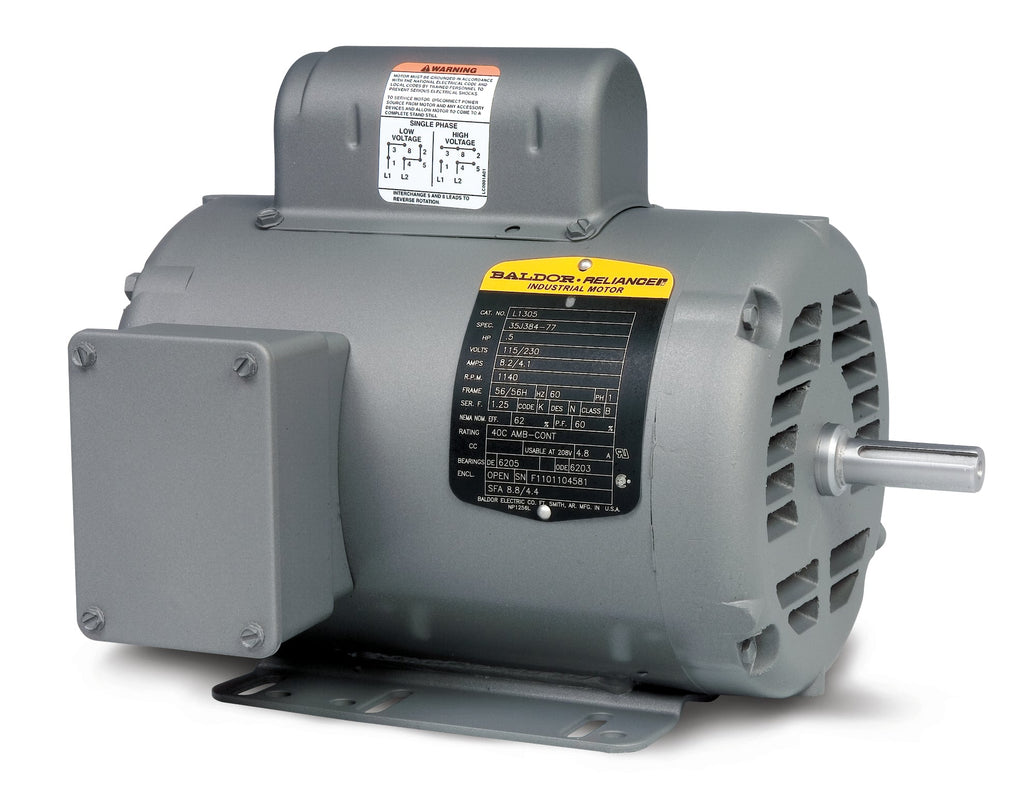

Baldor-Reliance Single Phase Open Motor - Model L1209-50

Discover the efficiency and reliability of the Baldor L1209-50 motor, designed for optimal performance in various applications. This single-phase open motor operates at 0.5 kW (0.37 HP) with a speed of 1440 RPM, making it an ideal choice for your pumping needs. With a frequency of 50 Hz and a frame size of 48, this motor is engineered to deliver consistent power and durability.

As a trusted vendor, Baldor ensures that this motor meets high-quality standards, making it a reliable option for your projects. Whether you are replacing an old motor or upgrading your system, the Baldor L1209-50 is a perfect fit.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

Product Specifications:

  • Model: L1209-50
  • Power: 0.5 kW (0.37 HP)
  • Speed: 1440 RPM
  • Phase: Single Phase
  • Frequency: 50 Hz
  • Frame Size: 48
  • Type: Open

Upgrade your pumping system with the Baldor L1209-50 motor today!

UPC 781568119822
Supplier Part Number L1209-50
Category AC Motors
Subcategory Single Phase Open
Product Family General Purpose
Agency Approvals UKCA, WEEE, CURUS, CE
Ambient Temperature 40 °C
Approximate Weight (lbs) 28.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number L1209-50
Current @ Voltage 2.600 A @ 220.0 V, 5.200 A @ 110.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 72.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 48
Frame Material Steel
Frequency 50.00 Hz
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.6 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3424LC
Mounting Arrangement F1
Number of Poles 4
Output 0.370 kW
Output @ Frequency .370 KW @ 50 HZ
Overall Length 10.63 IN
Phase 1
Power Factor 89
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.500 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1440 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 220 V, 110 V
Voltage @ Frequency 110.0 V @ 50 HZ, 220.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None
