Baldor KNM3457/35 - .33 HP, 3450RPM, 3 Phase, 60HZ, 56C, 3512M, Tenv, F1 60HZ Three Phase Three Phase 33 HP 3512 M Cable 56°C

Save $222.75
BaldorSKU: KNM3457/35

Price:
Sale price$668.25 Regular price$891.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

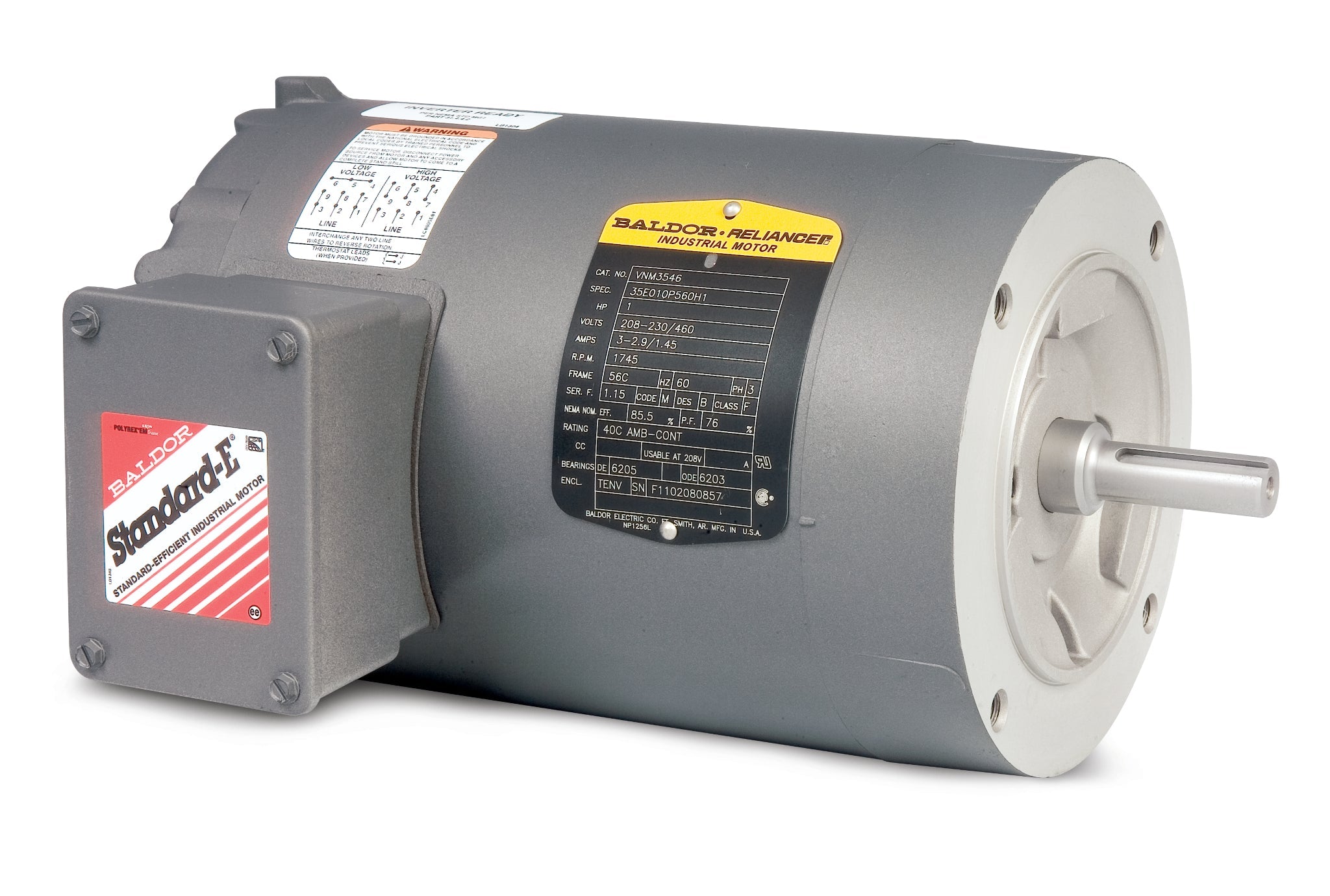

Baldor-Reliance Three Phase Enclosed Motor - Model KNM3457/35

Upgrade your pumping system with the Baldor-Reliance Three Phase Enclosed Motor, featuring a robust .33 HP and a high-speed 3450 RPM. Designed for efficiency and durability, this motor operates on a 3-phase, 60Hz power supply, making it ideal for various industrial applications.

Specifications:

  • Power: .33 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: KNM3457/35

This motor is perfect for those looking for reliable performance in a compact design. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs. If you have questions or need assistance in locating the correct pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches this model. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568452684
Supplier Part Number KNM3457/35
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 29.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number KNM3457/35
Current @ Voltage .500 A @ 460.0 V, 1.000 A @ 230.0 V, 1.200 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3512M
Mounting Arrangement F1
Number of Poles 2
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 11.07 IN
Phase 3
Power Factor 80
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
