Baldor KM3454-57 - .25 HP, IP54, 1425RPM, 3 Phase, 50HZ, 56C, 3410M 50HZ Three Phase Three Phase 25 HP 3410 M Cable IP54 Rating 56°C

Save $148.50
BaldorSKU: KM3454-57

Price:
Sale price$445.50 Regular price$594.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

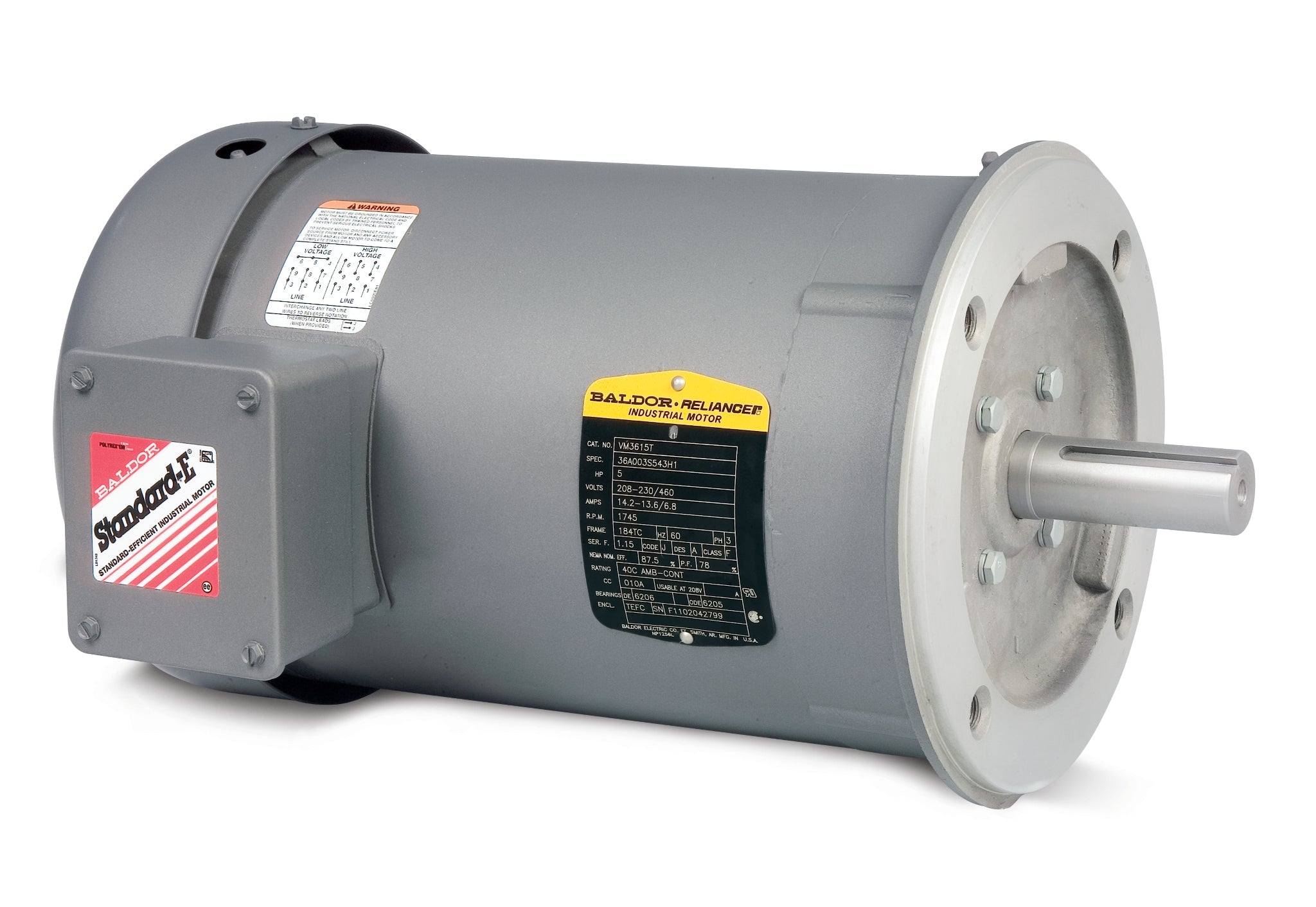

Baldor KM3454-57 Three Phase Enclosed Motor:

Discover the reliability and efficiency of the Baldor KM3454-57 motor, designed for demanding applications. This .25 HP motor operates at 1425 RPM and is specifically engineered for three-phase systems at 50Hz. With an IP54 rating, it offers excellent protection against dust and water, making it suitable for various industrial environments.

Key specifications include:

  • Power: .25 HP
  • Speed: 1425 RPM
  • Phase: 3 Phase
  • Frequency: 50Hz
  • Temperature Class: 56°C
  • Enclosure Type: Enclosed
  • Product Code: KM3454-57

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor KM3454-57 to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568656631
Supplier Part Number KM3454-57
Category AC Motors
Subcategory Three Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS, UKCA, WEEE, CE, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 20.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number KM3454-57
Current @ Voltage .700 A @ 400.0 V, 1.200 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 64.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 50.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.7 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3410M
Mounting Arrangement F1
Number of Poles 4
Output 0.250 hp
Output @ Frequency .250 HP @ 50 HZ
Overall Length 11.35 IN
Phase 3
Power Factor 59
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1425 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 400 V, 230 V
Voltage @ Frequency 400.0 V @ 50 HZ, 230.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
