Baldor KL3401 - .17 HP, 1140RPM, 1 Phase, 60HZ, 56C, 3418L, TEFC, F1 60HZ Single Phase Single Phase 17 HP 56°C

Save $219.00
BaldorSKU: KL3401

Price:
Sale price$657.00 Regular price$876.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

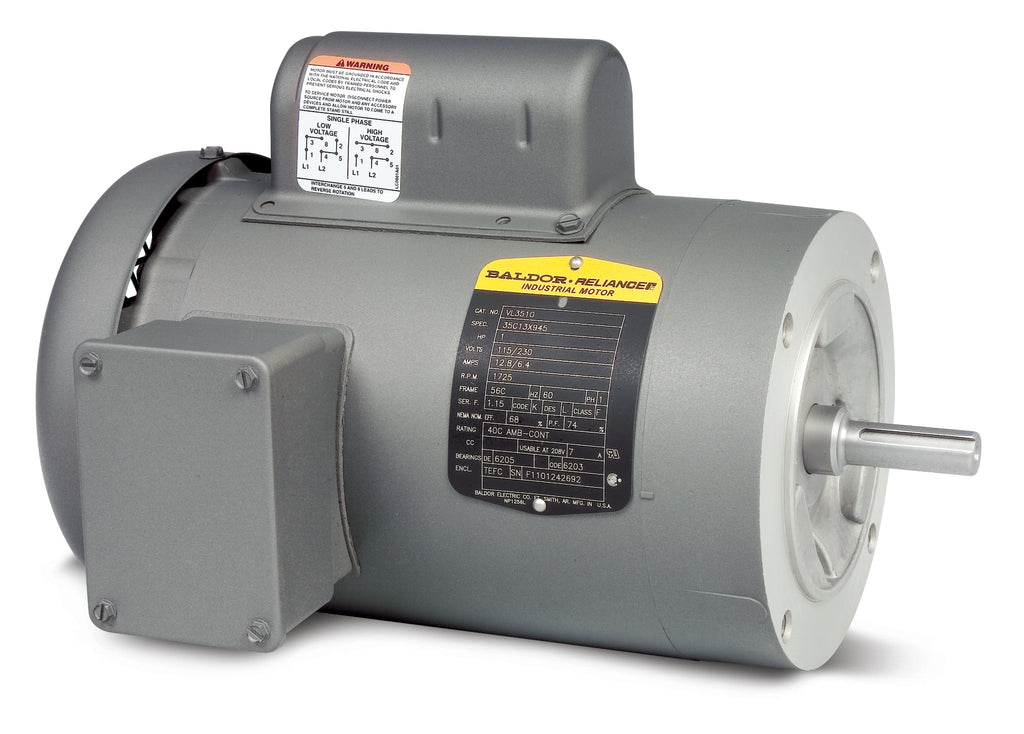

Baldor KL3401 - .17 HP Single Phase Enclosed Motor

The Baldor KL3401 is a reliable and efficient .17 HP single phase enclosed motor designed for various applications. Operating at 1140 RPM and powered by a 60Hz electrical supply, this motor is perfect for those seeking a robust solution for their pumping needs. With a 56C frame and TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and protection against environmental factors.

Key Features:

  • Power: .17 HP
  • Speed: 1140 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: KL3401

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor KL3401 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568108987
Supplier Part Number KL3401
Category AC Motors
Subcategory Single Phase Enclosed
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 24.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number KL3401
Current @ Voltage 2.300 A @ 230.0 V, 2.600 A @ 208.0 V, 4.600 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 47.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.3 a
Insulation Class B
Inverter Code Not Inverter
KVA Code P
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3418L
Mounting Arrangement F1
Number of Poles 6
Output 0.170 hp
Output @ Frequency .170 HP @ 60 HZ
Overall Length 11.35 IN
Phase 1
Power Factor 52
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1140 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
