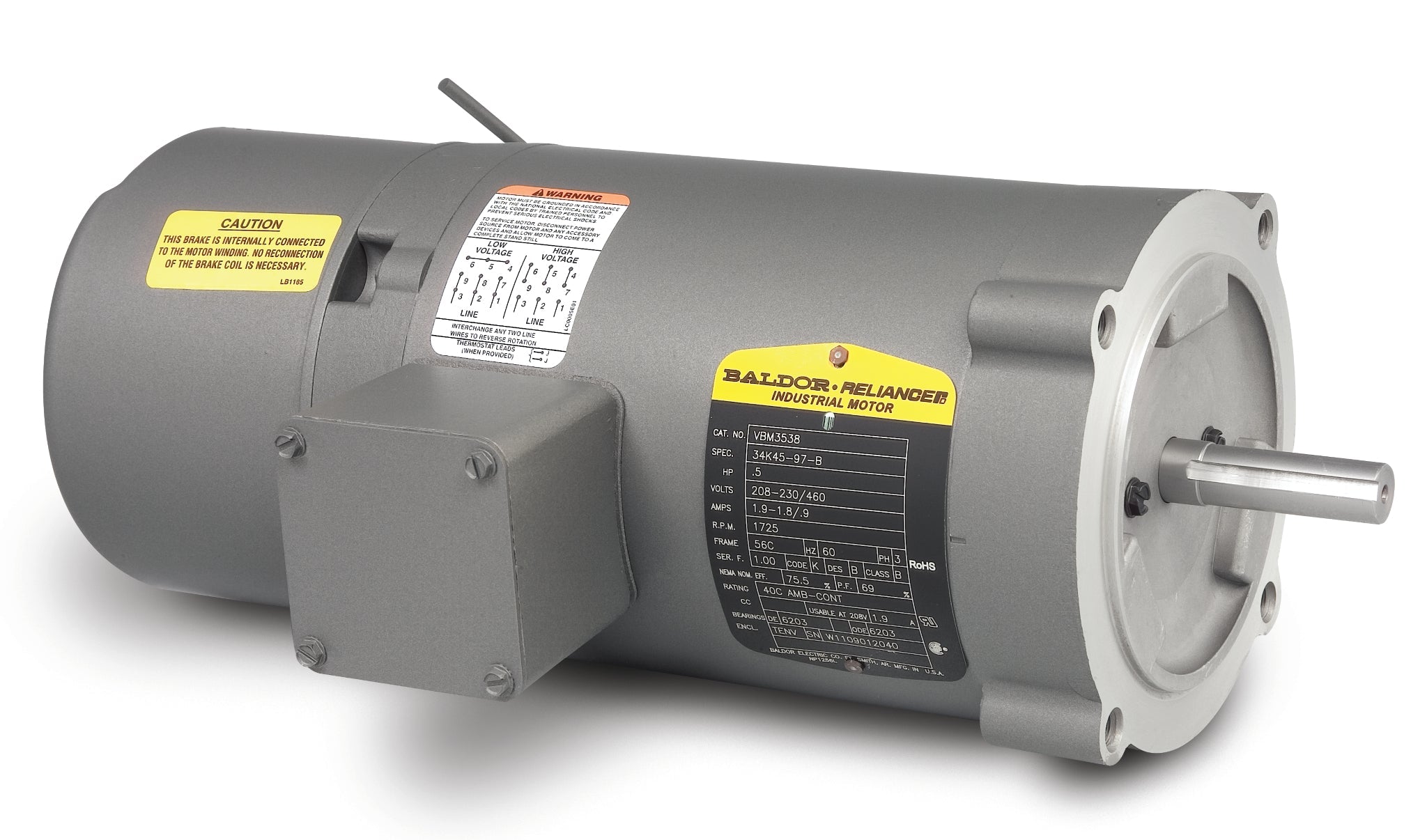

Baldor KBM3458 - .33 HP, 1725RPM, 3 Phase, 60HZ, 56C, Brake, 3416M 60HZ Three Phase 33 HP 3416 M Cable 56°C

Save $375.50
BaldorSKU: KBM3458

Price:
Sale price$1,126.50 Regular price$1,502.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor KBM3458 Short-Series Brake Motor

Discover the reliability and performance of the Baldor KBM3458, a .33 HP, 1725 RPM, 3 Phase, 60Hz Short-Series Brake Motor designed for various industrial applications. This motor features a robust 56C frame and is engineered to provide efficient operation with a built-in brake for enhanced control and safety.

Key Specifications:

  • Power: .33 HP
  • Speed: 1725 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame Size: 56C
  • Type: Short-Series Brake Motor
  • Product Code: KBM3458

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor KBM3458 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568115381
Supplier Part Number KBM3458
Category AC Motors
Subcategory Short-Series Brake Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 23.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 3.0 lb-ft
Catalog Number KBM3458
Current @ Voltage .700 A @ 460.0 V, 1.400 A @ 230.0 V, 1.500 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 70.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Brake Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.7 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3416M
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 14.36 IN
Phase 3
Power Factor 64
Product Type BRAKE MOTOR
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V, 208 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
