Baldor JSM3155 - 2 HP, 3450RPM, 3 Phase, 60HZ, 56YZ, 3430M, Open, F1 60HZ Three Phase 2 HP 3430 M Cable

Save $257.25
BaldorSKU: JSM3155

Price:
Sale price$771.75 Regular price$1,029.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

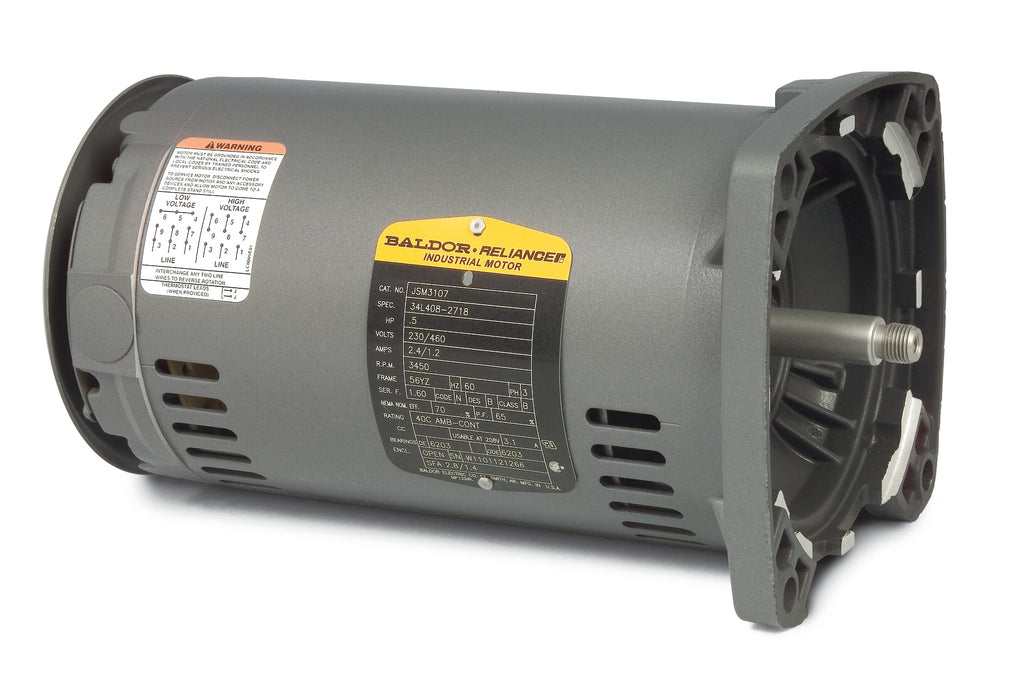

Baldor-Reliance 56J Jet Pump Motor - JSM3155

Upgrade your pumping system with the Baldor JSM3155, a high-performance 2 HP, 3450 RPM, 3 Phase motor designed specifically for jet pump applications. This robust motor operates at 60HZ and features a 56YZ frame, ensuring compatibility with a wide range of pumps. The open design allows for efficient cooling, making it ideal for demanding environments.

As a trusted name in the industry, Baldor-Reliance delivers reliability and durability, making this motor a perfect choice for both residential and commercial applications. Whether you need to replace an existing motor or are looking to enhance your pumping system, the JSM3155 is engineered to meet your needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our knowledgeable team is here to help!

Specifications:

  • Power: 2 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame: 56YZ
  • Type: Open
  • Product Code: JSM3155

Choose the Baldor JSM3155 for reliable performance and efficiency in your pumping applications!

UPC 781568206843
Supplier Part Number JSM3155
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 35.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JSM3155
Current @ Voltage 2.700 A @ 460.0 V, 5.400 A @ 230.0 V, 6.400 A @ 208.0 V
Design Code B
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 82.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 56YZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Drip Cover Mounting
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.7 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3430M
Mounting Arrangement F1
Number of Poles 2
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 13.40 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code Pool Pump
Pulley Shaft Indicator Ext Thread & Tapped Hole
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.2
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
