Baldor JPL1511T - 10 HP, 3450RPM, 1 Phase, 60HZ, 215JP, 3740L, Open 60HZ Single Phase 10 HP

Save $1,088.50
BaldorSKU: JPL1511T

Price:
Sale price$3,265.50 Regular price$4,354.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

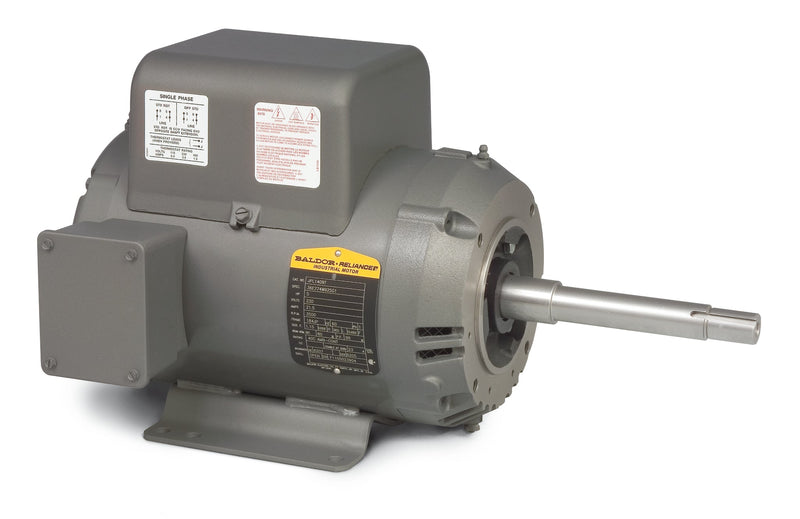

Baldor JPL1511T - 10 HP Close Coupled Motor

Discover the power and reliability of the Baldor JPL1511T, a high-performance 10 HP motor designed for demanding applications. Operating at 3450 RPM and powered by a single-phase 60Hz supply, this motor is ideal for various industrial and commercial uses. With a robust 215JP frame and an open design, the JPL1511T ensures efficient operation and easy maintenance.

This motor is part of the renowned Baldor-Reliance JM, JP, WCP Close Coupled Motors series, known for their durability and performance. Whether you need a replacement for your existing pump or are looking to upgrade your system, the JPL1511T is a reliable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Product Specifications:

  • Power: 10 HP
  • Speed: 3450 RPM
  • Phase: 1
  • Frequency: 60Hz
  • Frame: 215JP
  • Type: Open
  • Product Code: JPL1511T

Upgrade your operations with the Baldor JPL1511T motor today!

UPC 781568114759
Supplier Part Number JPL1511T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 148.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JPL1511T
Current @ Voltage 46.000 A @ 230.0 V, 48.000 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 83.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 215JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 46.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 8 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3740L
Mounting Arrangement F1
Number of Poles 2
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 23.19 IN
Phase 1
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.250 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
