Baldor JPL1509T - 7.5 HP, 3450RPM, 1 Phase, 60HZ, 213JP, 3729L, Open 60HZ Single Phase 7.5 HP

Save $885.00
BaldorSKU: JPL1509T

Price:
Sale price$2,655.00 Regular price$3,540.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

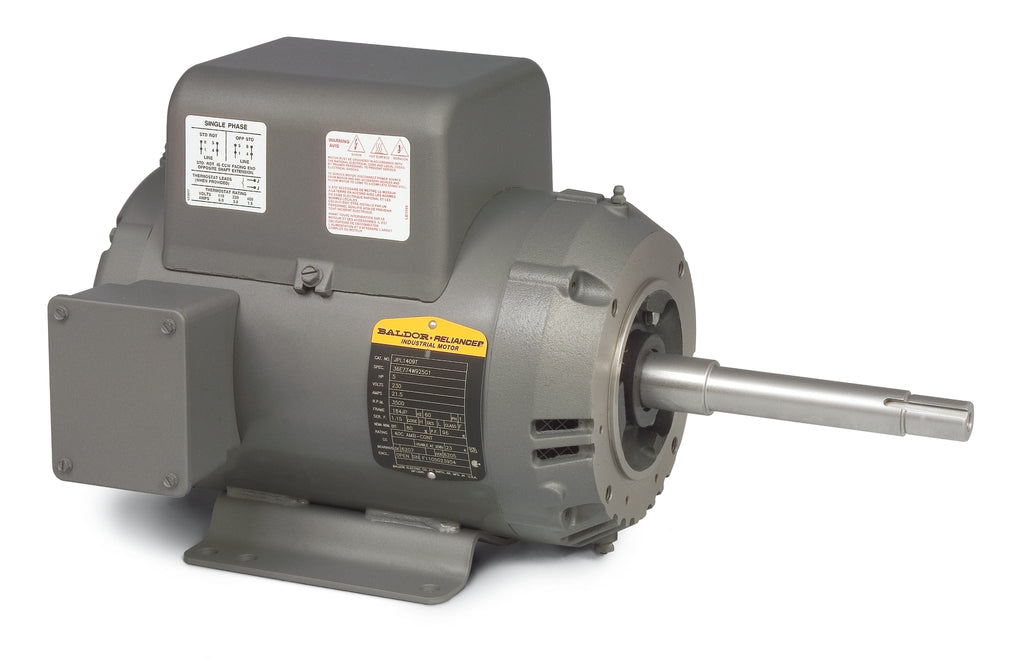

Baldor JPL1509T - 7.5 HP Close Coupled Motor

Introducing the Baldor JPL1509T, a high-performance 7.5 HP motor designed for efficiency and reliability. Operating at 3450 RPM, this single-phase motor is perfect for a variety of applications, particularly in pump systems. With a frequency of 60Hz and a robust 213JP frame, the JPL1509T is engineered to meet the demands of industrial environments.

This open-type motor is part of the Baldor-Reliance JM, JP, and WCP Close Coupled Motors series, ensuring compatibility and performance for your pumping needs. Whether you are replacing an existing motor or upgrading your system, the JPL1509T is an excellent choice for dependable operation.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Product Specifications:

  • Power: 7.5 HP
  • Speed: 3450 RPM
  • Phase: 1
  • Frequency: 60Hz
  • Frame: 213JP
  • Product Code: JPL1509T

Upgrade your pumping system with the reliable Baldor JPL1509T motor today!

UPC 781568114735
Supplier Part Number JPL1509T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 121.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JPL1509T
Current @ Voltage 37.000 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 81.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 213JP
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 37.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 8 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3729L
Mounting Arrangement F1
Number of Poles 2
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 22.07 IN
Phase 1
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.250 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
