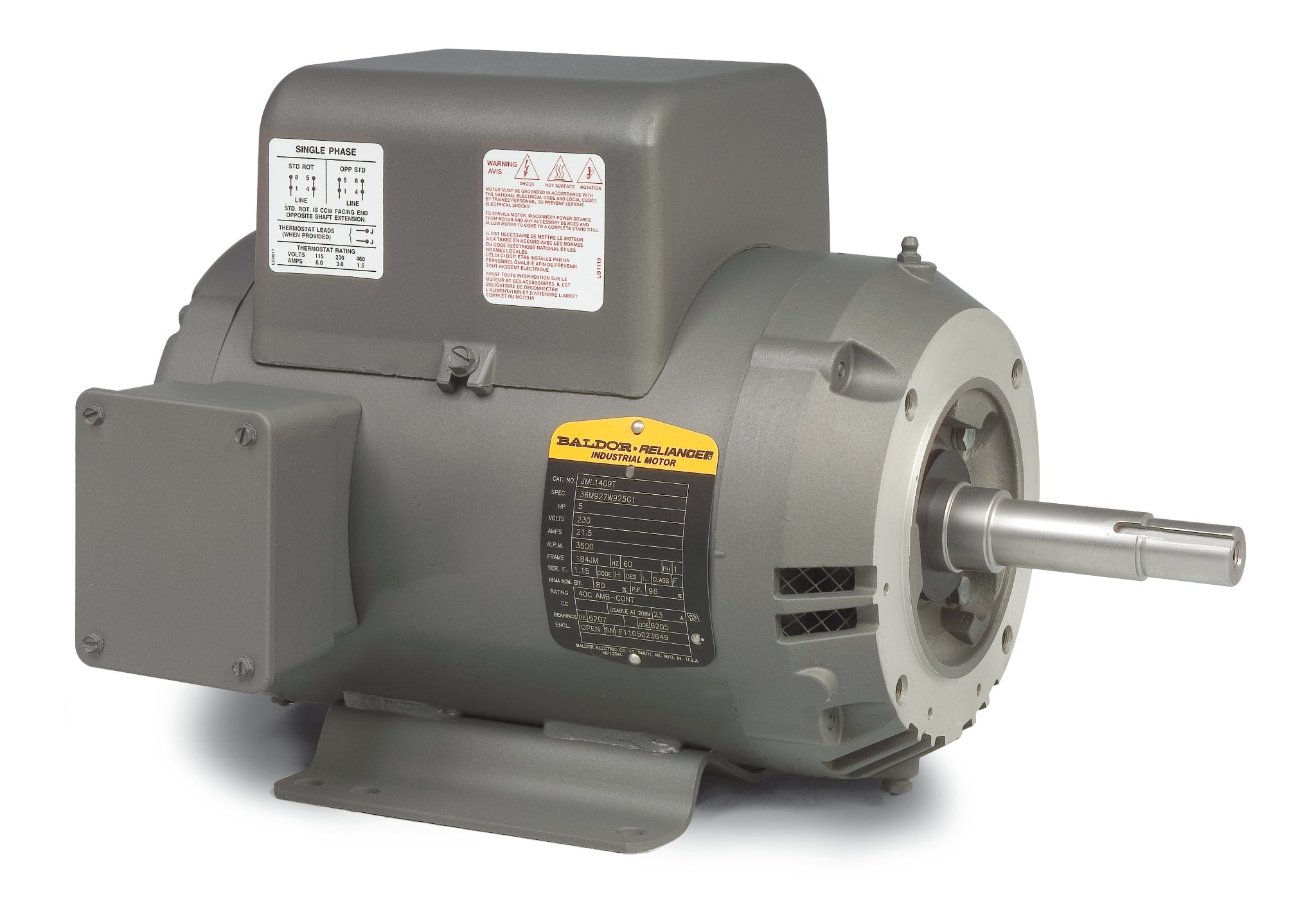

Baldor JML1508T - 5 HP, 1745RPM, 1 Phase, 60HZ, 213JM, 3727L, Opsb, F1 60HZ Single Phase 5 HP

Save $711.00
BaldorSKU: JML1508T

Price:
Sale price$2,133.00 Regular price$2,844.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance JM, JP, WCP Close Coupled Motors

Introducing the Baldor JML1508T, a high-performance 5 HP motor designed for efficiency and reliability. Operating at 1745 RPM, this single-phase motor is perfect for a variety of applications requiring robust power and durability. With a frequency of 60Hz and a frame size of 213JM, the JML1508T is engineered to meet the demands of both commercial and industrial environments.

Key Features:

  • Power: 5 HP
  • Speed: 1745 RPM
  • Phase: Single Phase
  • Frequency: 60Hz
  • Frame Size: 213JM
  • Product Code: JML1508T

This motor is part of the Baldor-Reliance family, known for its exceptional quality and performance in AC motors, specifically designed for pump applications. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor JML1508T. Our team is here to help you navigate your options and ensure you get the right product for your requirements.

UPC 781568114650
Supplier Part Number JML1508T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 115.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JML1508T
Current @ Voltage 27.000 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 77.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 213JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 27.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 12 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3727L
Mounting Arrangement F1
Number of Poles 4
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 18.19 IN
Phase 1
Power Factor 78
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 1.000 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
