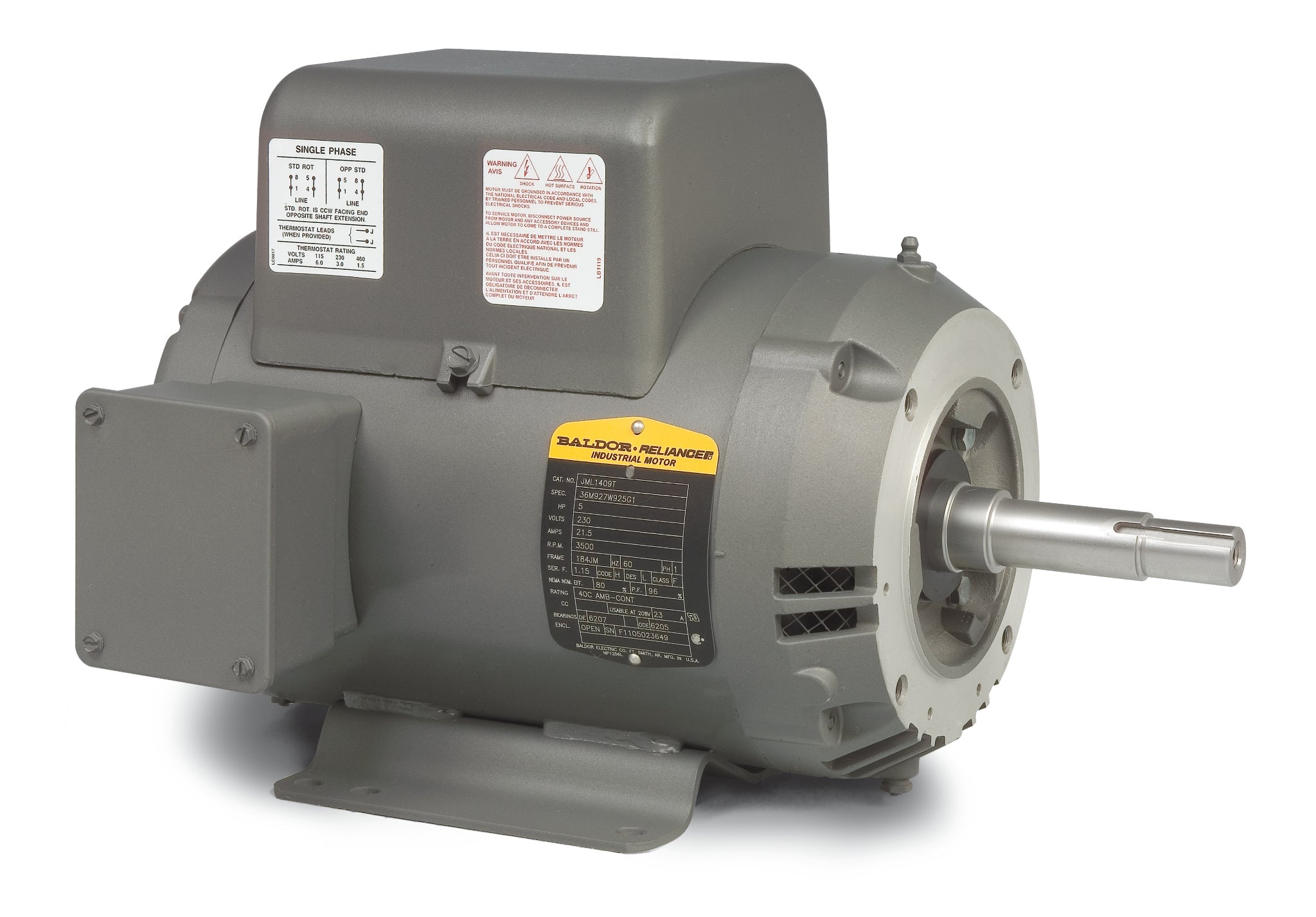

Baldor JML1409T - 5 HP, 3500RPM, 1 Phase, 60HZ, 184JM, 3634LC, Open, F 60HZ Single Phase 5 HP

Save $617.00
BaldorSKU: JML1409T

Price:
Sale price$1,851.00 Regular price$2,468.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor JML1409T - 5 HP Close Coupled Motor

Discover the power and reliability of the Baldor JML1409T, a high-performance 5 HP motor designed for various applications. Operating at 3500 RPM and powered by a single-phase 60Hz supply, this motor is ideal for those seeking efficiency and durability in their operations.

Specifications:

  • Power: 5 HP
  • Speed: 3500 RPM
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Frame: 184JM
  • Type: Open
  • Product Code: JML1409T

This Baldor-Reliance JM, JP, WCP Close Coupled Motor is perfect for a variety of pump applications, ensuring optimal performance and longevity. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts, providing you with the best solutions for your needs.

If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the JML1409T to ensure compatibility. Our team is here to help you find the perfect fit for your requirements.

UPC 781568114643
Supplier Part Number JML1409T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 81.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JML1409T
Current @ Voltage 21.000 A @ 230.0 V, 22.700 A @ 208.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 80.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 184JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 21.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 12 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3634LC
Mounting Arrangement F1
Number of Poles 2
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 16.50 IN
Phase 1
Power Factor 96
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3500 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
