Baldor JML1408T - 3 HP, 1725RPM, 1 Phase, 60HZ, 184JM, 3634LC, Open 60HZ Single Phase 3 HP

Save $501.00
BaldorSKU: JML1408T

Price:
Sale price$1,503.00 Regular price$2,004.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

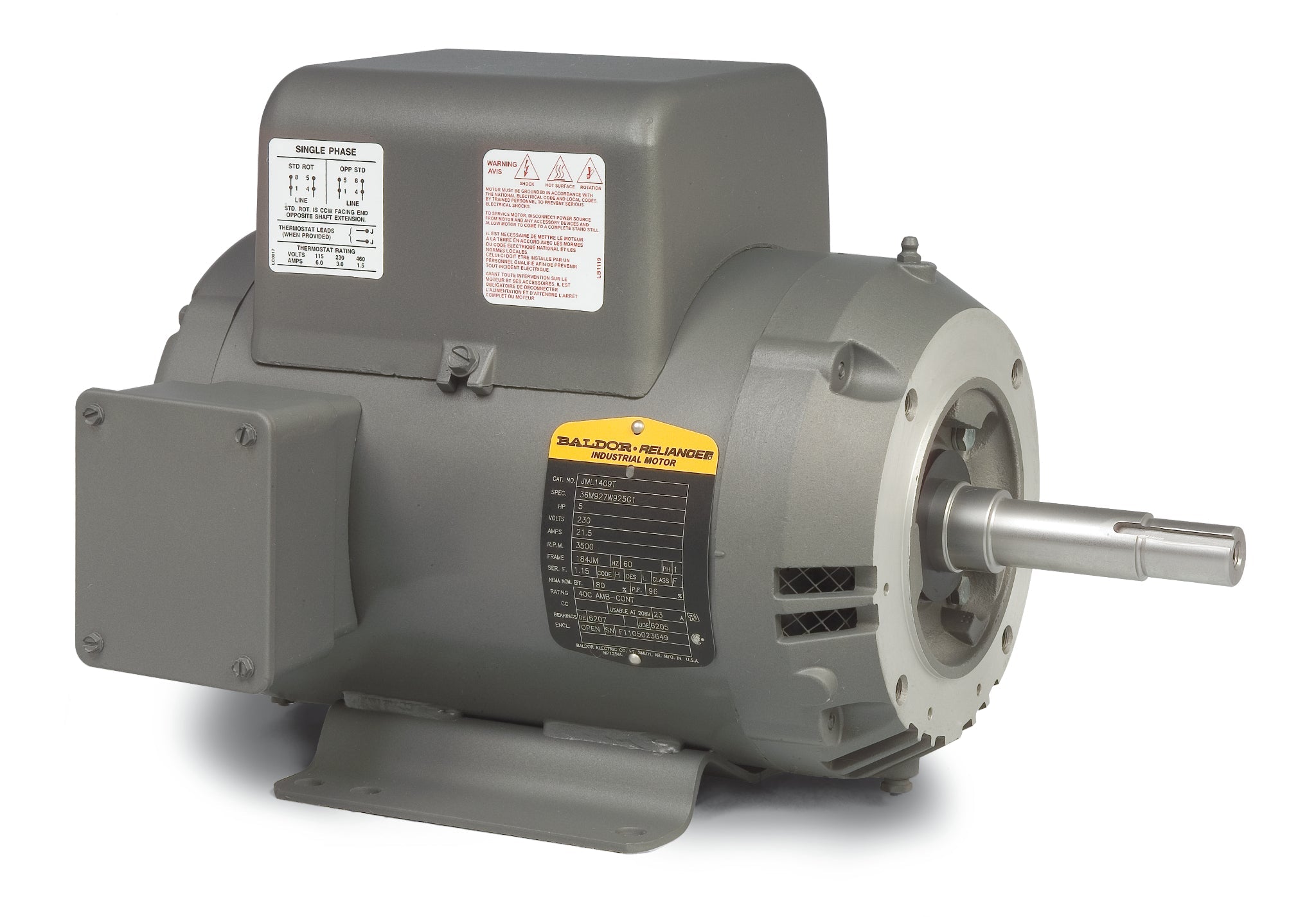

Baldor JML1408T - 3 HP Close Coupled Motor

Upgrade your pumping system with the Baldor JML1408T, a high-performance 3 HP motor designed for reliability and efficiency. Operating at 1725 RPM and powered by a single-phase 60Hz supply, this motor is ideal for various applications requiring robust performance.

Key specifications include:

  • Power: 3 HP
  • Speed: 1725 RPM
  • Phase: 1 Phase
  • Frequency: 60Hz
  • Frame Size: 184JM
  • Product Code: JML1408T
  • Type: JM, JP, WCP Close Coupled Motors

This open motor design ensures optimal cooling and performance, making it a perfect choice for your pumping needs. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your application.

If you have questions or need assistance in finding the right pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor JML1408T to ensure compatibility. Our team is here to help you with any inquiries you may have!

UPC 781568114636
Supplier Part Number JML1408T
Category AC Motors
Subcategory JM,JP,WCP Close Coupled Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 80.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JML1408T
Current @ Voltage 16.000 A @ 230.0 V, 16.800 A @ 208.0 V, 32.000 A @ 115.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 184JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 16.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code H
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 14 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3634LC
Mounting Arrangement F1
Number of Poles 4
Output 3.000 hp
Output @ Frequency 3.000 HP @ 60 HZ
Overall Length 16.50 IN
Phase 1
Power Factor 78
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen Included
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
