Baldor JMEWDM41906T - 60M 2P TEFC Hor 256JM SP9 Hose Down Se 60 M Cable

Save $2,544.00
BaldorSKU: JMEWDM41906T

Price:
Sale price$7,632.00 Regular price$10,176.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

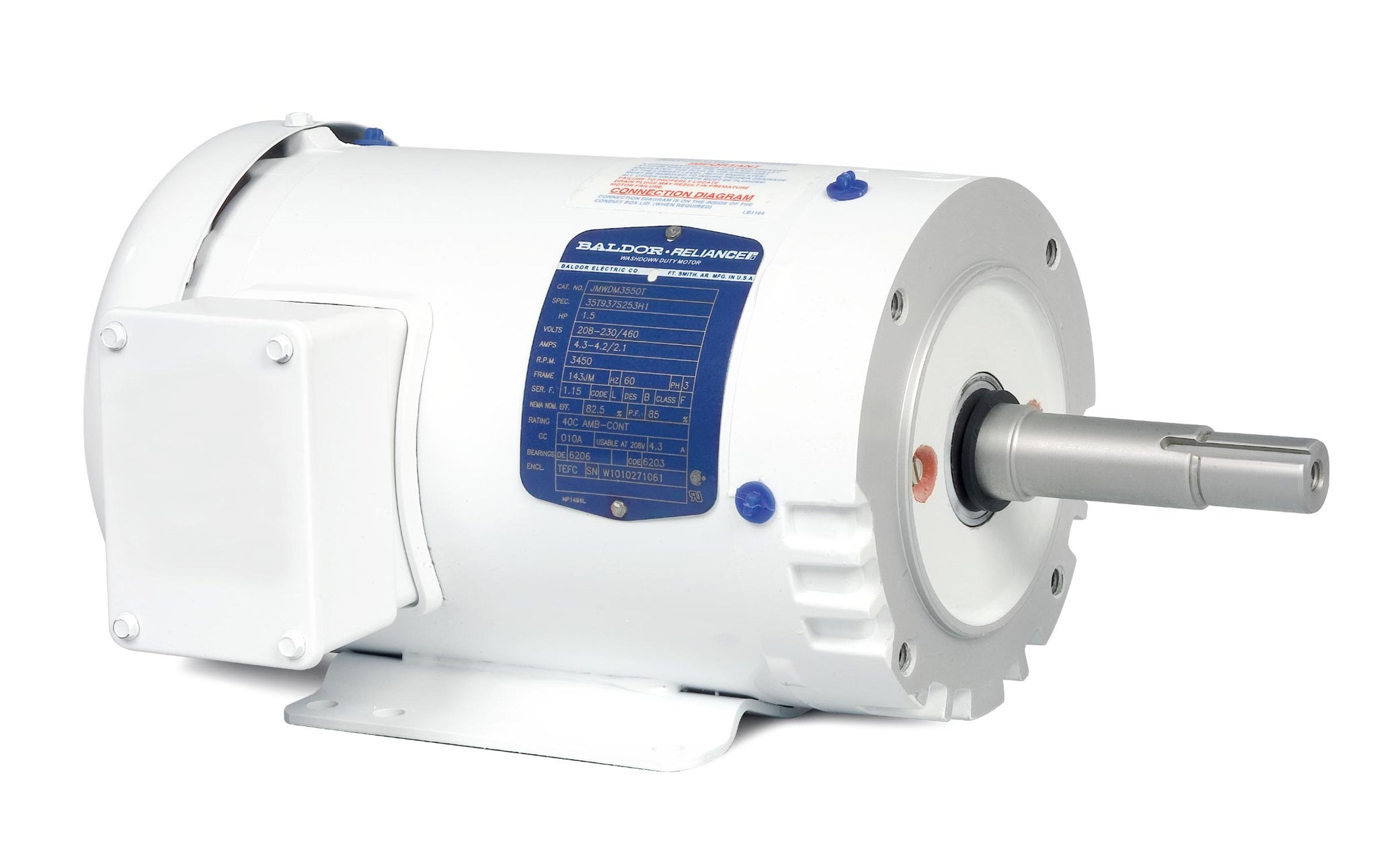

Baldor-Reliance Close-Coupled Pump Motor - Model JMEWDM41906T

The Baldor JMEWDM41906T is a high-performance 60M 2P TEFC (Totally Enclosed Fan Cooled) horizontal close-coupled pump motor designed for reliable operation in demanding environments. With a robust 256JM frame size and SP9 hose down service rating, this motor is ideal for applications requiring durability and efficiency.

As a trusted name in the industry, Baldor-Reliance delivers exceptional quality and performance, making this motor a perfect choice for your pumping needs. Whether you're replacing an existing unit or upgrading your system, the JMEWDM41906T ensures optimal functionality and longevity.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Key Features:

  • Model: JMEWDM41906T
  • Type: Close-Coupled Pump Motor
  • Frame Size: 256JM
  • Service Type: SP9 Hose Down
  • Design: TEFC (Totally Enclosed Fan Cooled)

Choose the Baldor JMEWDM41906T for reliable performance and efficiency in your pumping applications.

UPC 781568773826
Supplier Part Number JMEWDM41906T
Category AC Motors
Subcategory Close-Coupled Pump Motors
Product Family Wash Down
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 255.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JMEWDM41906T
Current @ Voltage 21.500 A @ 460.0 V, 43.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 256JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 21.5 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3960M
Mounting Arrangement F1
Number of Poles 2
Output 20.000 hp
Output @ Frequency 20.000 HP @ 60 HZ
Overall Length 26.12 IN
Phase 3
Power Factor 93
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3525 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
