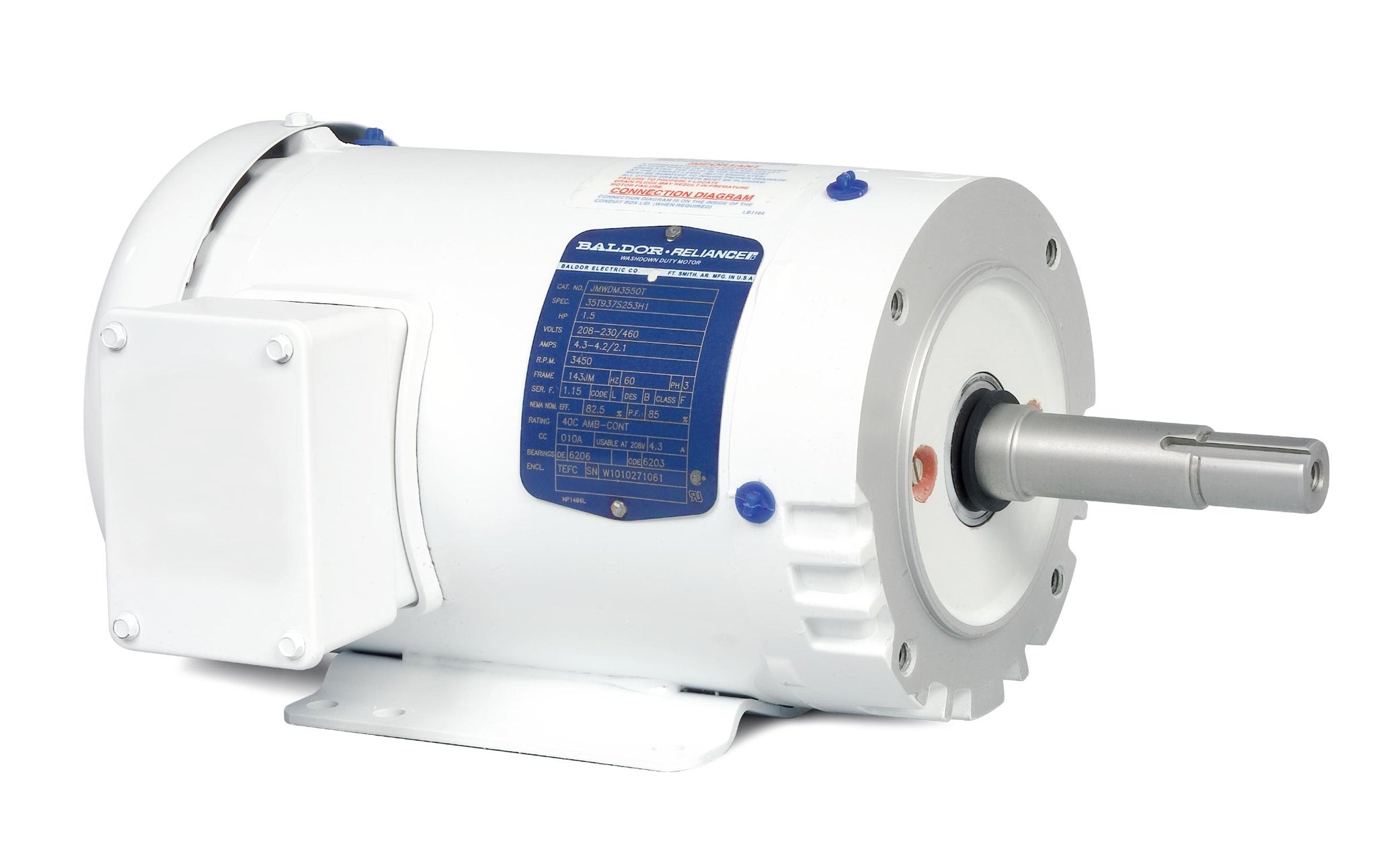

Baldor JMEWDM3711T - 10 HP, 3450RPM, 3 Phase, 60HZ, 215JM, 3736M, TEFC, F 60HZ Three Phase 10 HP 3736 M Cable

Save $1,270.75
BaldorSKU: JMEWDM3711T

Price:
Sale price$3,812.25 Regular price$5,083.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Close-Coupled Pump Motor - Model JMEWDM3711T

Upgrade your pumping system with the Baldor JMEWDM3711T, a high-performance close-coupled pump motor designed for reliability and efficiency. This robust motor features:

  • Power: 10 HP
  • Speed: 3450 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 215JM
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: JMEWDM3711T

This motor is ideal for a variety of applications, providing the power and durability needed for demanding environments. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, please check your current pump for the exact part number or SKU that matches the Baldor JMEWDM3711T. If you have any questions or need assistance in finding the right item, feel free to call us at (781) 281-8905. Our team is here to help you make the best choice for your pumping applications.

UPC 781568773680
Supplier Part Number JMEWDM3711T
Category AC Motors
Subcategory Close-Coupled Pump Motors
Product Family Wash Down
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 130.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JMEWDM3711T
Current @ Voltage 21.600 A @ 230.0 V, 24.000 A @ 208.0 V, 10.800 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 90.2 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 215JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 10.8 a
Insulation Class F
Inverter Code Inverter Ready
IP Rating NONE
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3736M
Mounting Arrangement F1
Number of Poles 2
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 20.91 IN
Phase 3
Power Factor 96
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
