Baldor JMEWDM3613T - 5 HP, 3430RPM, 3 Phase, 60HZ, 184JM, 3634M, TEFC, F1 60HZ Three Phase 5 HP 3634 M Cable

Save $830.75
BaldorSKU: JMEWDM3613T

Price:
Sale price$2,492.25 Regular price$3,323.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

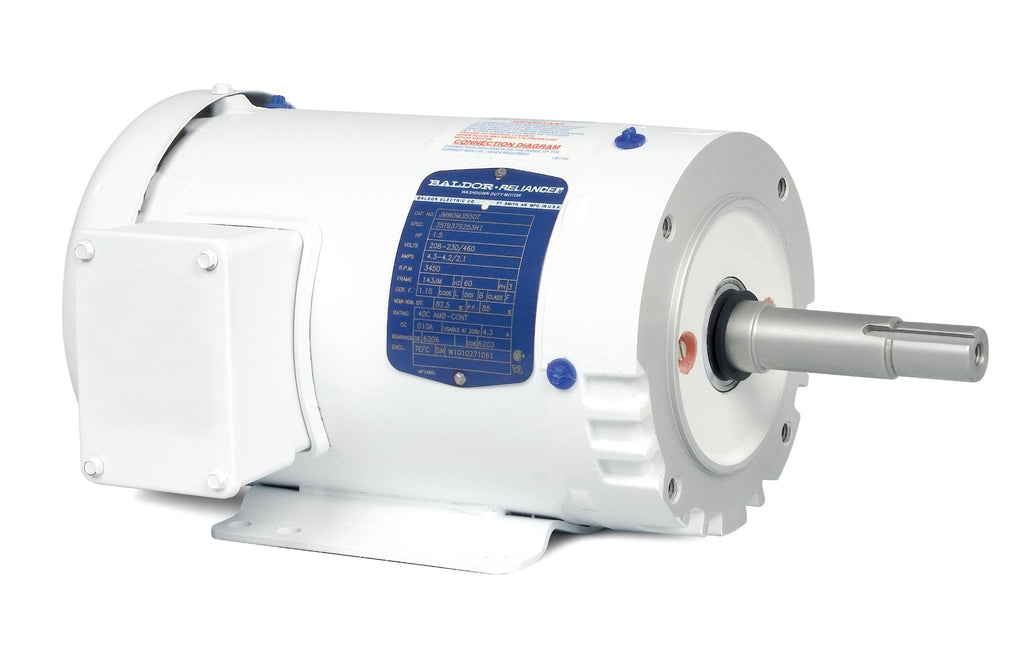

Baldor-Reliance Close-Coupled Pump Motor - Model JMEWDM3613T

Upgrade your pumping system with the Baldor JMEWDM3613T, a high-performance close-coupled pump motor designed for efficiency and reliability. This robust motor features:

  • Power: 5 HP
  • Speed: 3430 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 184JM
  • Mounting Type: TEFC (Totally Enclosed Fan Cooled)
  • Service Factor: F1

This motor is ideal for a variety of applications, providing reliable performance in demanding environments. As a trusted source for replacement pumps and parts, Pump-Stop.com ensures you have access to quality products like the Baldor JMEWDM3613T.

For assistance in finding the right pump for your application, please check your current pump for the exact part number or SKU that matches. If you have any questions or need help, don’t hesitate to call us at (781) 281-8905.

UPC 781568773642
Supplier Part Number JMEWDM3613T
Category AC Motors
Subcategory Close-Coupled Pump Motors
Product Family Wash Down
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 81.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JMEWDM3613T
Current @ Voltage 12.400 A @ 208.0 V, 5.600 A @ 460.0 V, 11.200 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 88.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 184JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.6 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3634M
Mounting Arrangement F1
Number of Poles 2
Output 5.000 hp
Output @ Frequency 5.000 HP @ 60 HZ
Overall Length 18.05 IN
Phase 3
Power Factor 94
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3430 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
