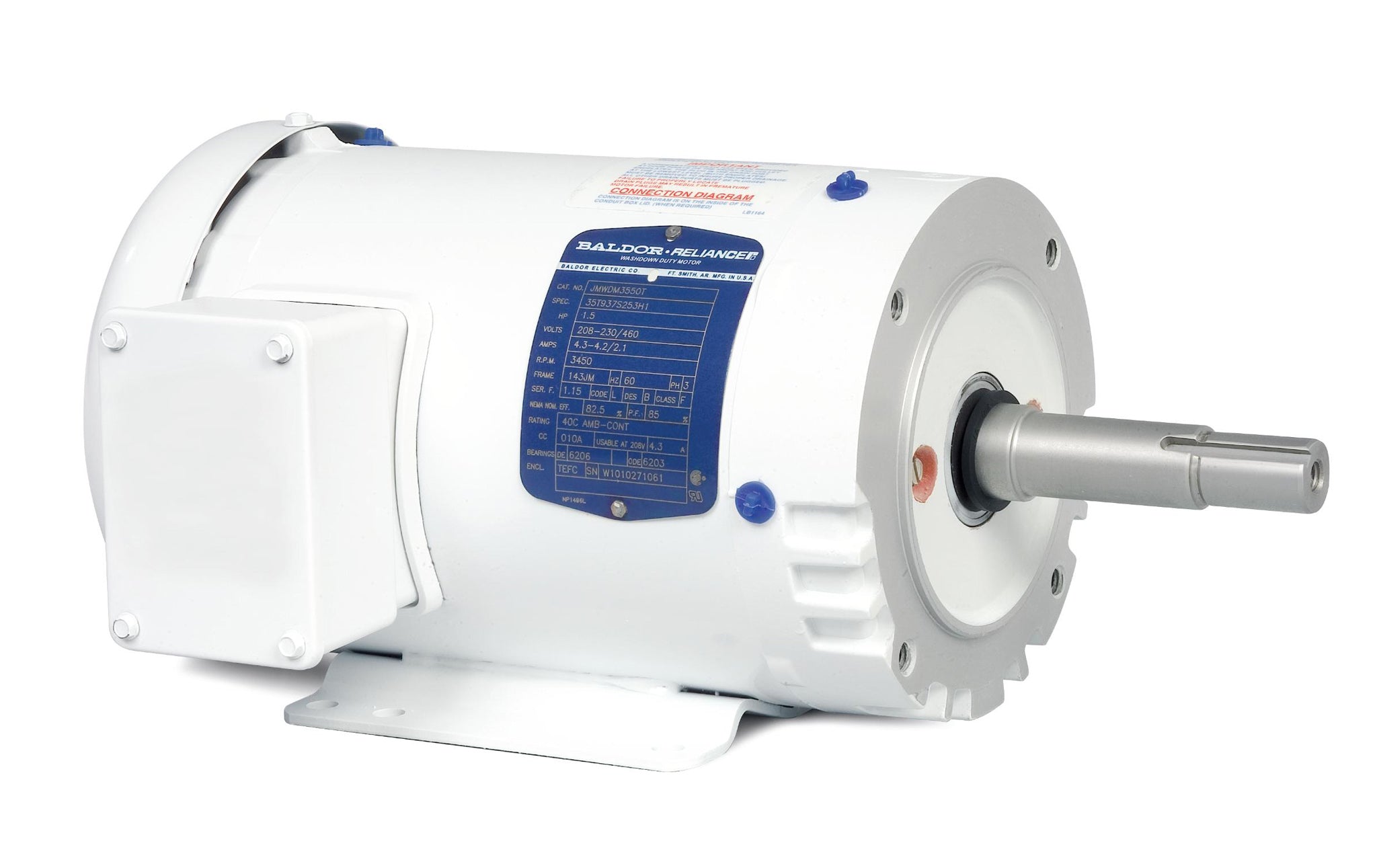

Baldor JMEWDM3555T - 2 HP, 3490RPM, 3 Phase, 60HZ, 145JM, 3526M, TEFC, F1 60HZ Three Phase 2 HP 3526 M Cable

Save $515.50
BaldorSKU: JMEWDM3555T

Price:
Sale price$1,546.50 Regular price$2,062.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Close-Coupled Pump Motor - Model JMEWDM3555T

Upgrade your pumping system with the Baldor JMEWDM3555T, a high-performance close-coupled pump motor designed for efficiency and reliability. This robust motor features:

  • Power: 2 HP
  • Speed: 3490 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 145JM
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting Type: F1

This motor is ideal for a variety of applications, providing reliable performance in demanding environments. As a trusted vendor, Baldor ensures that you receive a product built to last.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568773604
Supplier Part Number JMEWDM3555T
Category AC Motors
Subcategory Close-Coupled Pump Motors
Product Family Wash Down
Agency Approvals NEMA PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 47.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JMEWDM3555T
Current @ Voltage 2.500 A @ 460.0 V, 5.000 A @ 230.0 V, 5.300 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 85.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 143JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 2.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3526M
Mounting Arrangement F1
Number of Poles 2
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 13.29 IN
Phase 3
Power Factor 88
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.15
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 3490 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 208 V, 460 V
Voltage @ Frequency 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
