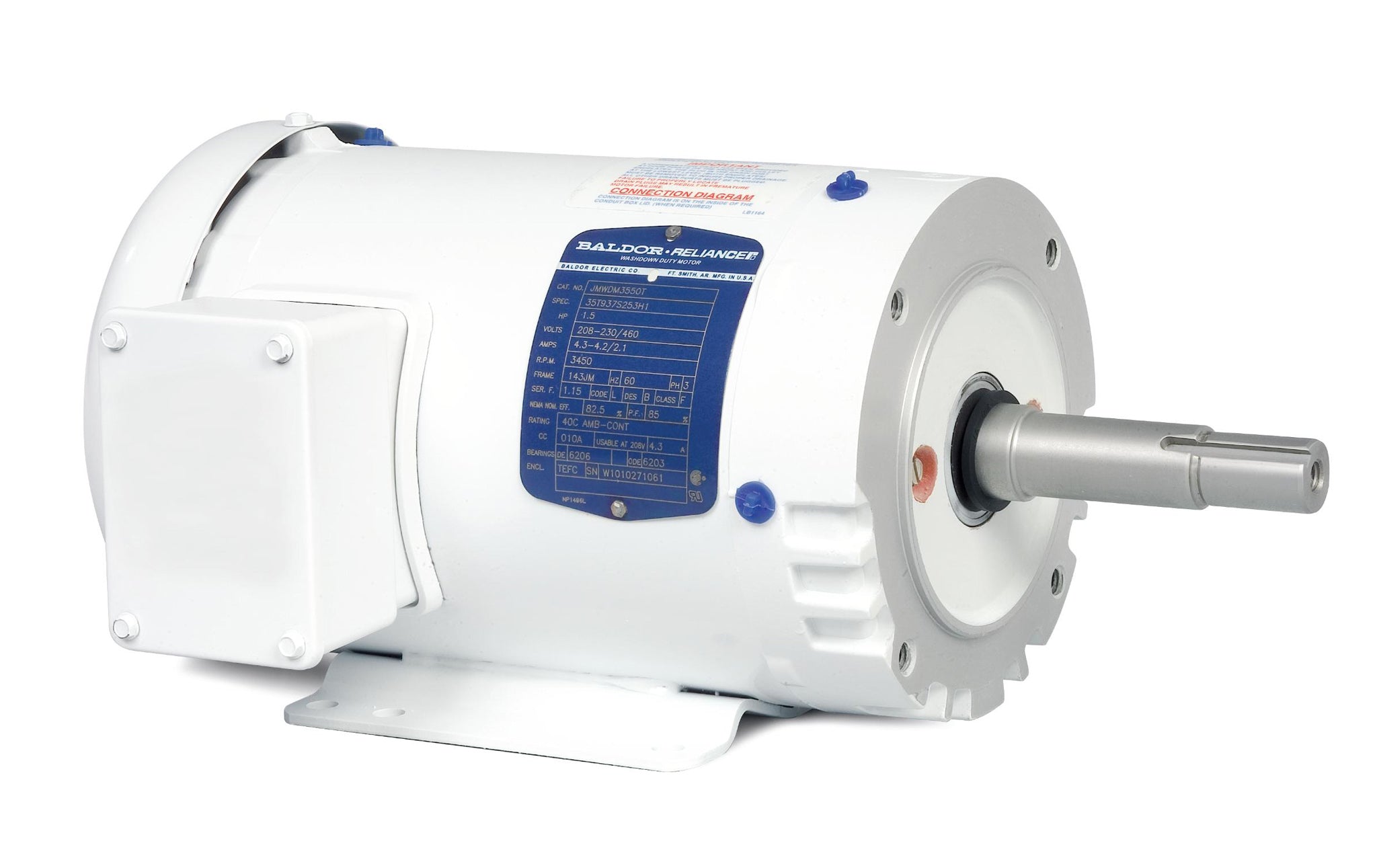

Baldor JMEWDM23933T - 15 HP, 1765RPM, 3 Phase, 60HZ, 254JM, 3942M, TEFC, F 60HZ Three Phase 15 HP 3942 M Cable

Save $2,191.25
BaldorSKU: JMEWDM23933T

Price:
Sale price$6,573.75 Regular price$8,765.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance Close-Coupled Pump Motor - 15 HP

Introducing the Baldor JMEWDM23933T, a high-performance close-coupled pump motor designed for reliable operation in demanding applications. With a robust 15 HP output and a speed of 1765 RPM, this 3-phase motor operates efficiently at 60HZ, making it an ideal choice for various pumping needs.

Key specifications include:

  • Power: 15 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60HZ
  • Frame Size: 254JM
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: JMEWDM23933T

This motor is built to withstand harsh environments, ensuring longevity and minimal maintenance. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, providing you with the quality and reliability you need for your applications.

If you have questions or need assistance in finding the right pump for your needs, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor JMEWDM23933T to ensure compatibility. Our team is here to help you find the perfect solution!

UPC 781568773772
Supplier Part Number JMEWDM23933T
Category AC Motors
Subcategory Close-Coupled Pump Motors
Product Family Wash Down
Agency Approvals NEMA_PREMIUM, CURUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 252.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JMEWDM23933T
Current @ Voltage 18.000 A @ 460.0 V, 36.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 254JM
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 18.0 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3942M
Mounting Arrangement F1
Number of Poles 4
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 25.12 IN
Phase 3
Power Factor 84
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Tapped & Key
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.750 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
