Baldor JM3458 - .33 HP, 1730RPM, 3 Phase, 60HZ, 56J, 3413M, TEFC, F1 60HZ Three Phase 33 HP 3413 M Cable

Save $156.50
BaldorSKU: JM3458

Price:
Sale price$469.50 Regular price$626.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

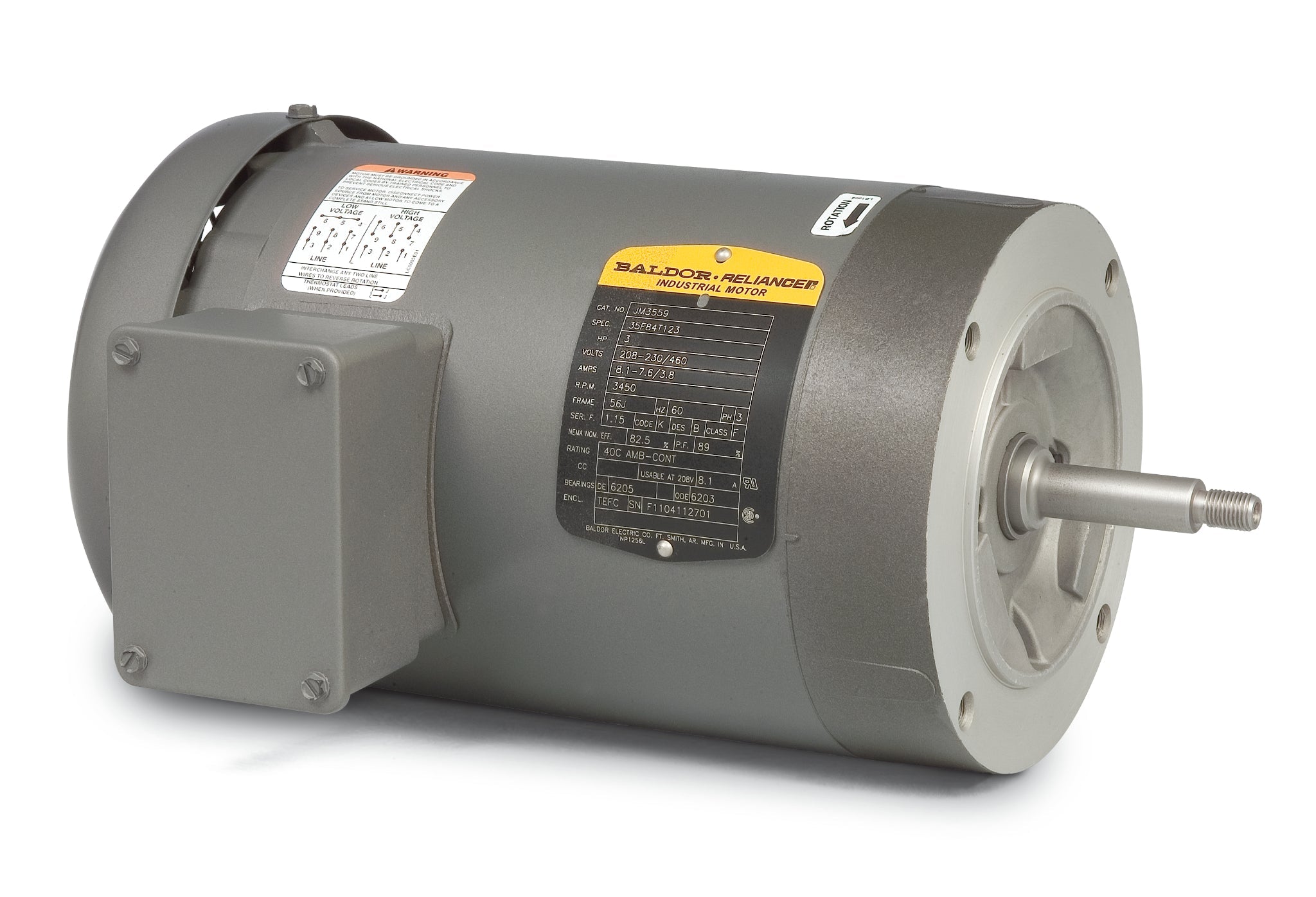

Baldor-Reliance 56J Jet Pump Motor - Model JM3458

Upgrade your pumping system with the Baldor JM3458 Jet Pump Motor. This high-performance motor features a .33 HP output and operates at 1730 RPM, making it ideal for a variety of applications. Designed for three-phase power supply at 60Hz, this motor is built to deliver reliable performance and efficiency.

Key Specifications:

  • Power: .33 HP
  • Speed: 1730 RPM
  • Phase: 3 Phase
  • Frequency: 60Hz
  • Frame: 56J
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: JM3458

This Baldor-Reliance motor is perfect for those seeking a durable and efficient solution for their jet pump needs. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right fit for your application.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you have any questions or need assistance in finding the right item, please don't hesitate to call us at (781) 281-8905.

UPC 781568217917
Supplier Part Number JM3458
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 21.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JM3458
Current @ Voltage .700 A @ 460.0 V, 1.300 A @ 208.0 V, 1.400 A @ 230.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 68.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 0.7 a
Insulation Class B
Inverter Code Not Inverter
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3413M
Mounting Arrangement F1
Number of Poles 4
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 11.84 IN
Phase 3
Power Factor 66
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.35
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1730 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
