Baldor JL3516A - 2 HP, 1730RPM, 1 Phase, 60HZ, 56J, 3536LC, TEFC, F1 60HZ Single Phase 2 HP

Save $342.00
BaldorSKU: JL3516A

Price:
Sale price$1,026.00 Regular price$1,368.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

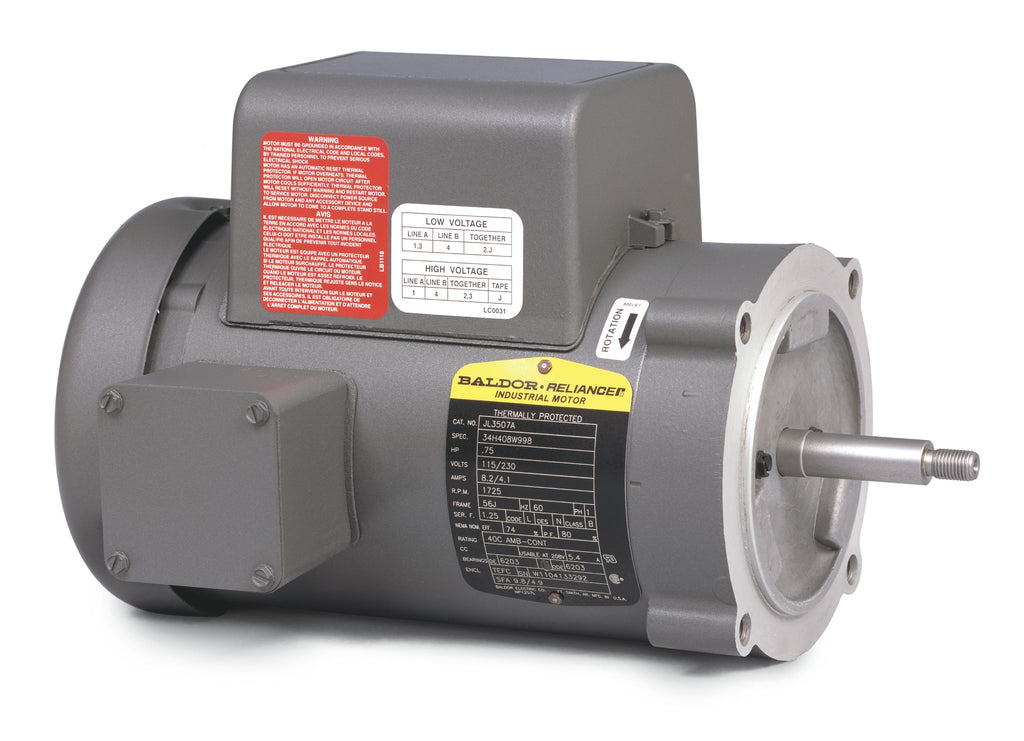

Baldor-Reliance 56J Jet Pump Motor - Model JL3516A

Upgrade your pumping system with the Baldor-Reliance 56J Jet Pump Motor, featuring a powerful 2 HP motor that operates at 1730 RPM. Designed for single-phase applications, this motor runs on 60HZ power, making it an ideal choice for residential and light commercial use.

Key Features:

  • Power: 2 HP
  • Speed: 1730 RPM
  • Phase: 1 Phase
  • Frequency: 60HZ
  • Frame: 56J
  • Model: 3536LC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: JL3516A

This motor is built to last, providing reliable performance in demanding environments. Its TEFC design ensures protection against dust and moisture, making it suitable for various applications.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this model. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568218112
Supplier Part Number JL3516A
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 52.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JL3516A
Current @ Voltage 17.200 A @ 115.0 V, 8.600 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 78.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 8.6 a
Insulation Class F
Inverter Code Not Inverter
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 14 AWG, A&J
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3535LC
Mounting Arrangement F1
Number of Poles 4
Output 2.000 hp
Output @ Frequency 2.000 HP @ 60 HZ
Overall Length 14.60 IN
Phase 1
Power Factor 99
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
Service Factor 1.15
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Do Not Use Eve-Not Valiid
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location KO
Winding Thermal 2 None
