Baldor JL3506A - .75 HP, 3450RPM, 1 Phase, 60HZ, 56J, 3424L, TEFC, F1 60HZ Single Phase 75 HP

Save $189.25
BaldorSKU: JL3506A

Price:
Sale price$567.75 Regular price$757.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

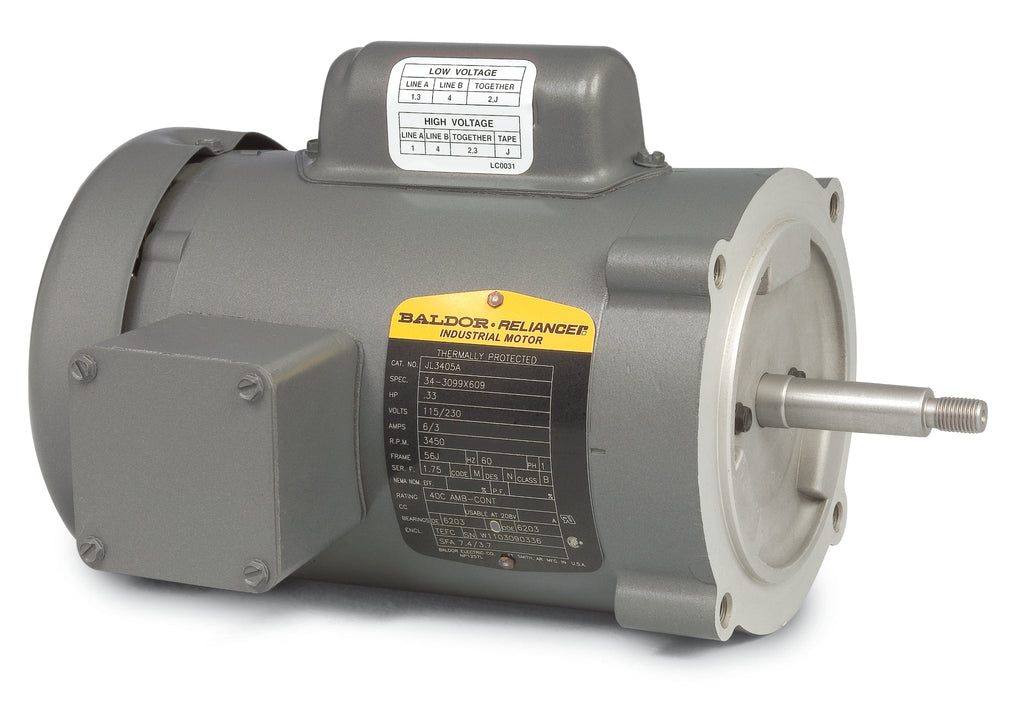

Baldor-Reliance 56J Jet Pump Motor - Model JL3506A

Upgrade your pumping system with the Baldor JL3506A Jet Pump Motor. This high-performance motor delivers .75 HP power at 3450 RPM, making it ideal for a variety of applications. Designed for single-phase operation at 60HZ, this motor features a TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and reliability in demanding environments.

Key Specifications:

  • Power: .75 HP
  • Speed: 3450 RPM
  • Phase: 1
  • Frequency: 60HZ
  • Frame: 56J
  • Product Code: JL3506A

As a trusted source for replacement pumps and parts, Pump-Stop.com is here to help you find the right solution for your needs. If you have questions or need assistance locating the correct pump, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

Choose the Baldor-Reliance 56J Jet Pump Motor for reliable performance and efficiency in your pumping applications.

UPC 781568217986
Supplier Part Number JL3506A
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 29.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JL3506A
Current @ Voltage 10.800 A @ 115.0 V, 5.400 A @ 230.0 V, 7.000 A @ 208.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 66.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.4 a
Insulation Class B
Inverter Code Not Inverter
KVA Code K
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3424L
Mounting Arrangement F1
Number of Poles 2
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 12.85 IN
Phase 1
Power Factor 66
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.5
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
