Baldor JL3405A - .33 HP, 3450RPM, 1 Phase, 60HZ, 56J, 3416L, TEFC, F1 60HZ Single Phase 33 HP

Save $138.75
BaldorSKU: JL3405A

Price:
Sale price$416.25 Regular price$555.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

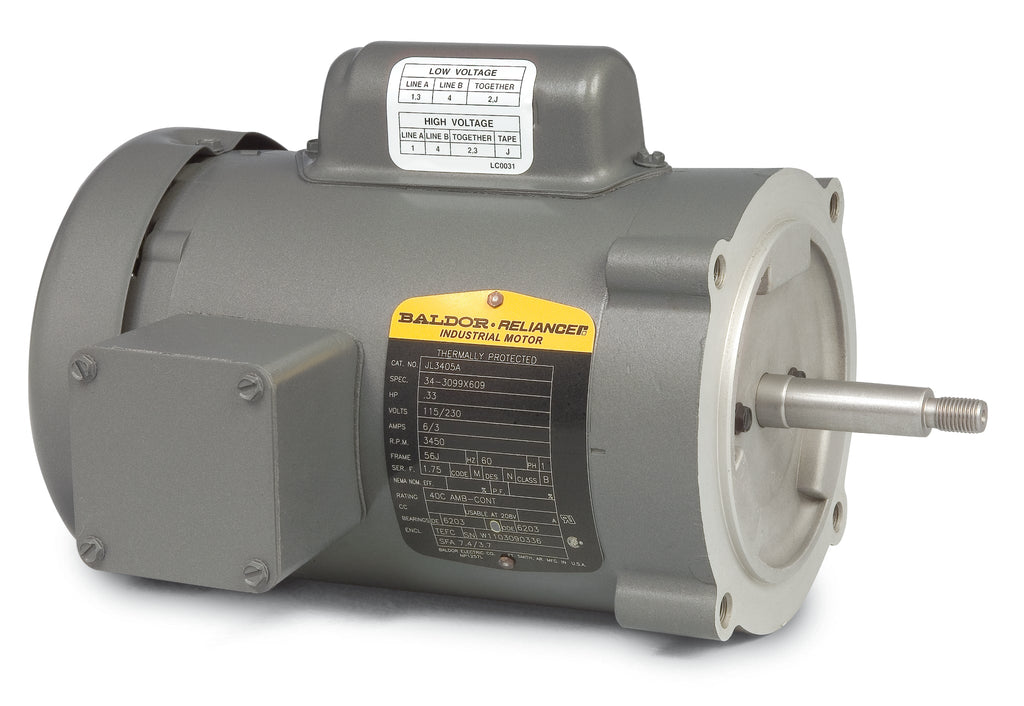

Baldor JL3405A - .33 HP 56J Jet Pump Motor

Upgrade your pumping system with the Baldor JL3405A, a reliable .33 HP, 3450 RPM, single-phase motor designed for optimal performance in various applications. This 56J Jet Pump Motor operates at 60HZ and features a Totally Enclosed Fan Cooled (TEFC) design, ensuring durability and efficiency in demanding environments.

Key Features:

  • Power: .33 HP
  • Speed: 3450 RPM
  • Phase: 1
  • Frequency: 60HZ
  • Type: 56J Jet Pump Motor
  • Product Code: JL3405A
  • TEFC Design for enhanced protection

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568218242
Supplier Part Number JL3405A
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 19.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JL3405A
Current @ Voltage 3.000 A @ 208.0 V, 3.000 A @ 230.0 V, 6.000 A @ 115.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 3.0 a
Insulation Class B
Inverter Code Not Inverter
KVA Code M
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG, A&J
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3416L
Mounting Arrangement F1
Number of Poles 2
Output 0.330 hp
Output @ Frequency .330 HP @ 60 HZ
Overall Length 11.85 IN
Phase 1
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.75
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 115 V, 230 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location SB
Winding Thermal 2 None
