Baldor JL1306A - .75 HP, 3450RPM, 1 Phase, 60HZ, 56J, 3424L, Open, F1 60HZ Single Phase 75 HP

Save $177.00
BaldorSKU: JL1306A

Price:
Sale price$531.00 Regular price$708.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

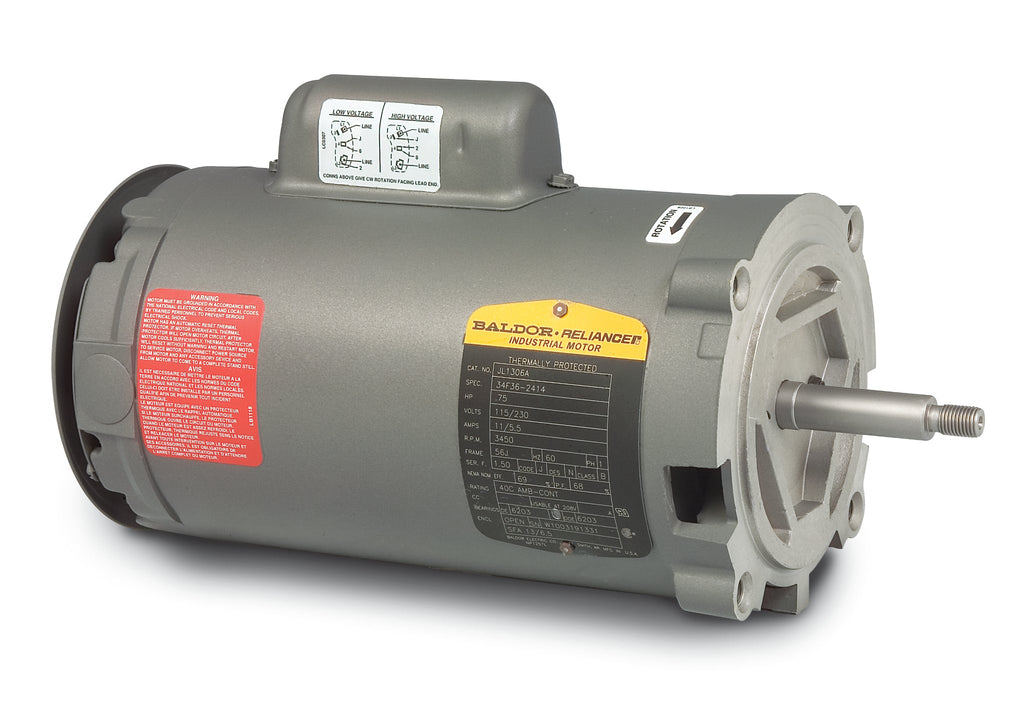

Baldor-Reliance 56J Jet Pump Motor - Model JL1306A

Upgrade your pumping system with the Baldor-Reliance 56J Jet Pump Motor, featuring a powerful .75 HP output and a high-speed 3450 RPM operation. Designed for single-phase applications, this motor operates at 60HZ and is built to deliver reliable performance in various pumping tasks.

Key Specifications:

  • Power: .75 HP
  • Speed: 3450 RPM
  • Phase: 1 Phase
  • Frequency: 60HZ
  • Frame: 56J
  • Open Drip Proof Design
  • Product Code: JL1306A

This motor is ideal for applications requiring efficient and dependable operation, making it a perfect choice for both residential and commercial use. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you have any questions or need assistance in finding the right item, please don't hesitate to call us at (781) 281-8905.

UPC 781568112786
Supplier Part Number JL1306A
Category AC Motors
Subcategory 56J Jet Pump Motors
Product Family General Purpose
Agency Approvals CURUS, C UR US
Ambient Temperature 40 °C
Approximate Weight (lbs) 33.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number JL1306A
Current @ Voltage 11.000 A @ 115.0 V, 5.500 A @ 230.0 V
Design Code N
Drip Cover Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 69.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure OPEN
Feedback Device NO FEEDBACK
Frame 56J
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Terminal Panel
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 5.5 a
Insulation Class B
Inverter Code Not Inverter
IP Rating NONE
KVA Code J
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Terminal Panel Or Lead Hole
Motor Lead Quantity/Wire Size 5 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Induction Run
Motor Standards NEMA
Motor Type 3424L
Mounting Arrangement F1
Number of Poles 2
Output 0.750 hp
Output @ Frequency .750 HP @ 60 HZ
Overall Length 13.39 IN
Phase 1
Power Factor 68
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Ext Thread
Rodent Screen None
Service Factor 1.5
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Fixed Opposite Standard
Shaft Slinger Indicator No Slinger
Speed 3450 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 115 V
Voltage @ Frequency 115.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location ES
Winding Thermal 2 None
