Baldor IDVSM44304T-4 - 300 HP, 1790-2685RPM, 3 Phase, 60-90HZ, 449T, A441 90HZ Three Phase 300 HP

Save $15,298.75
BaldorSKU: IDVSM44304T-4

Price:
Sale price$45,896.25 Regular price$61,195.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

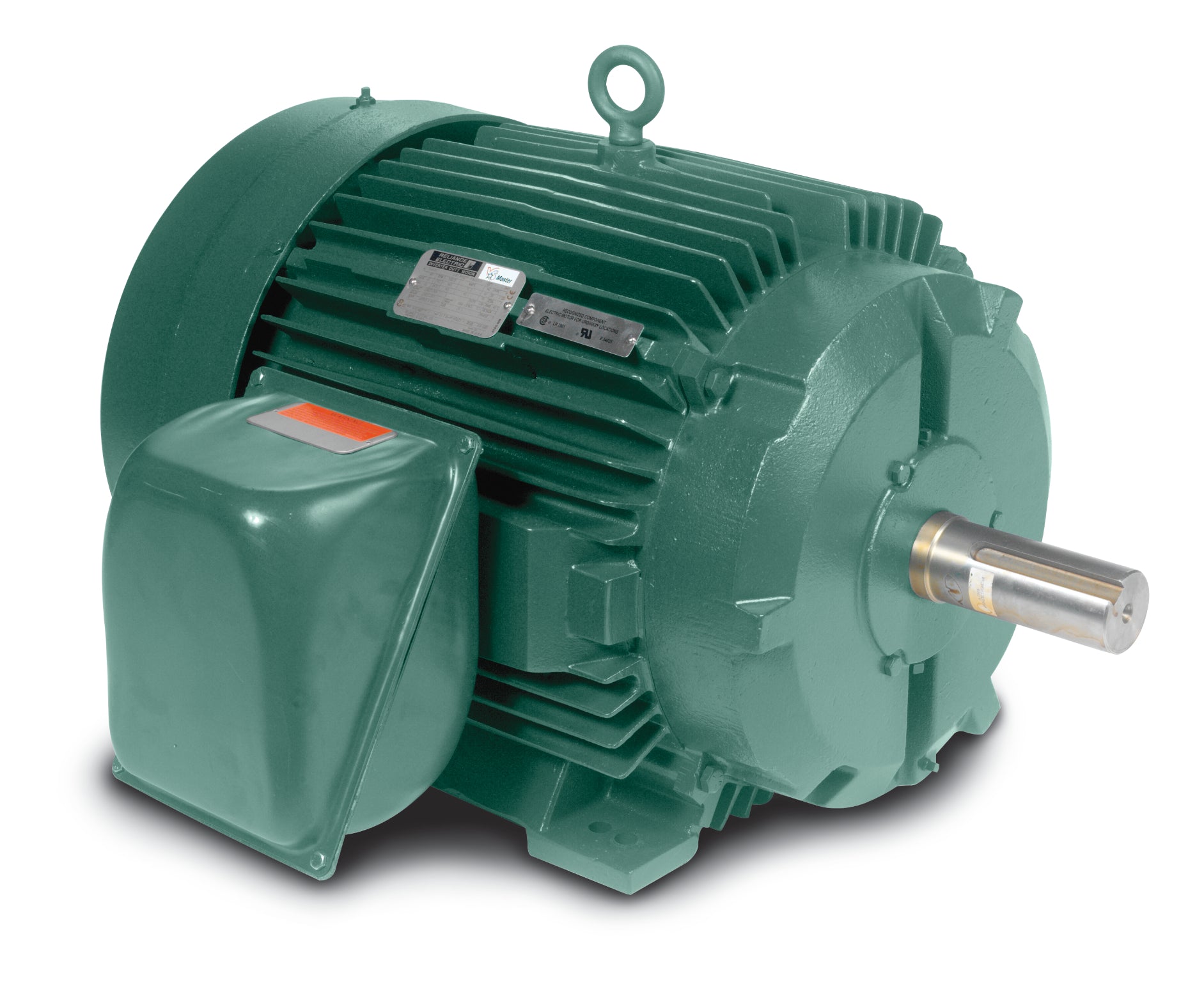

Baldor-Reliance AC VS Master Motor - Model IDVSM44304T-4

Experience superior performance with the Baldor-Reliance AC VS Master Motor, designed for high-efficiency applications. This robust motor delivers an impressive 300 HP and operates at variable speeds ranging from 1790 to 2685 RPM. With a three-phase design and compatibility with 60-90Hz power supply, this motor is ideal for a variety of industrial applications.

Key Features:

  • Power: 300 HP
  • Speed Range: 1790-2685 RPM
  • Phase: 3 Phase
  • Frequency: 60-90 Hz
  • Frame Size: 449T
  • Product Code: IDVSM44304T-4

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568465509
Supplier Part Number IDVSM44304T-4
Category AC Motors
Subcategory AC VS Master Motors
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 2816.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number IDVSM44304T-4
Constant Torque Speed Range 1000:1
Current @ Voltage 322.000 A @ 460.0 V, 338.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 96.2 %
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 449T
Frame Material Cast Iron
Frequency 60.00 Hz, 90.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 322.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code M
Lifting Lugs Standard Lifting Lugs
Max Speed 3600 rpm
Motor Lead Quantity/Wire Size 12 @ 1 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44160M
Mounting Arrangement F1
Number of Poles 4
Output 300.000 hp @ 60 Hz, 300.000 hp @ 90 Hz
Output @ Frequency 300.000 HP @ 90 HZ, 300.000 HP @ 60 HZ
Overall Length 53.24 IN
Phase 3
Power Factor 86
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1790 rpm, 2685 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 90 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 460 V @ 60 Hz, 460 V @ 90 Hz
Voltage @ Frequency 460.0 V @ 60 HZ, 460.0 V @ 90 HZ
