Baldor IDVSM4406T-4 - 150 HP, 1790-2685RPM, 3 Phase, 60-90HZ, 445T, A440 90HZ Three Phase 150 HP

Save $9,135.50
BaldorSKU: IDVSM4406T-4

Price:
Sale price$27,406.50 Regular price$36,542.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

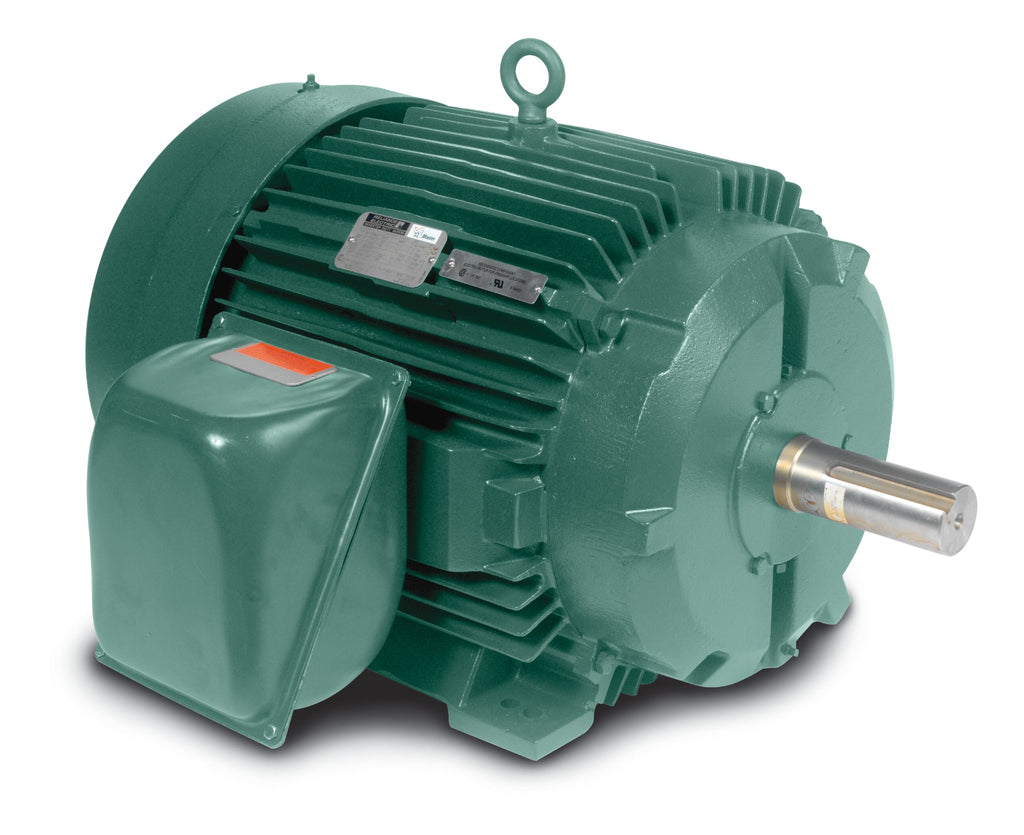

Baldor-Reliance AC VS Master Motor - 150 HP

Introducing the Baldor IDVSM4406T-4, a high-performance AC VS Master Motor designed for demanding applications. With a power output of 150 HP and a versatile speed range of 1790-2685 RPM, this three-phase motor operates efficiently at 60-90 Hz. Its robust construction and reliable performance make it an ideal choice for various industrial applications.

Key Features:

  • Power: 150 HP
  • Speed Range: 1790-2685 RPM
  • Phase: 3 Phase
  • Frequency: 60-90 Hz
  • Frame Size: 445T
  • Product Code: IDVSM4406T-4

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568465455
Supplier Part Number IDVSM4406T-4
Category AC Motors
Subcategory AC VS Master Motors
Product Family Other
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 1789.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number IDVSM4406T-4
Constant Torque Speed Range 1000:1
Current @ Voltage 165.000 A @ 460.0 V, 177.000 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 445T
Frame Material Cast Iron
Frequency 60.00 Hz, 90.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 165.0 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code M
Lifting Lugs Standard Lifting Lugs
Max Speed 3600 rpm
Motor Lead Quantity/Wire Size 3 @ 2/0 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44078M
Mounting Arrangement F1
Number of Poles 4
Output 150.000 hp @ 60 Hz, 150.000 hp @ 90 Hz
Output @ Frequency 150.000 HP @ 90 HZ, 150.000 HP @ 60 HZ
Overall Length 44.75 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1
Shaft Diameter 3.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1790 rpm, 2685 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 3,000 rpm
Synchronous Speed @ Frequency 3000 RPM @ 90 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V @ 60 Hz, 460 V @ 90 Hz
Voltage @ Frequency 460.0 V @ 60 HZ, 460.0 V @ 90 HZ

Motor Curves
