Baldor IDVSM4110T - 40 HP, 1775RPM, 3 Phase, 60HZ, 324T, 1254M, TEFC, F1 60HZ Three Phase 40 HP 1254 M Cable

Save $2,516.50
BaldorSKU: IDVSM4110T

Price:
Sale price$7,549.50 Regular price$10,066.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

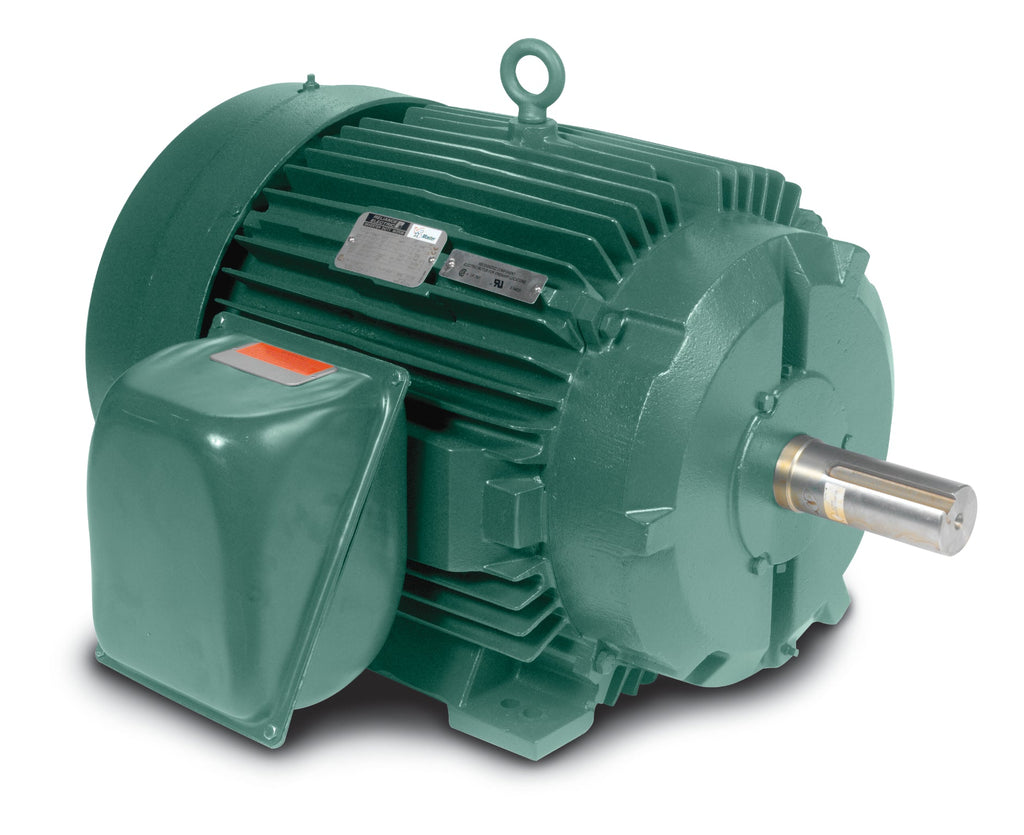

Baldor-Reliance AC VS Master Motor - Model IDVSM4110T

Upgrade your industrial applications with the Baldor-Reliance AC VS Master Motor, featuring a robust 40 HP power output and a speed of 1775 RPM. This three-phase motor operates at 60Hz and is designed for efficiency and durability, making it an ideal choice for various heavy-duty applications.

  • Power: 40 HP
  • Speed: 1775 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 324T
  • Insulation Class: 1254M
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: IDVSM4110T

This motor is engineered for reliability and performance, making it a preferred choice for those seeking high-quality AC motors. At Pump-Stop.com, we are your trusted source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor IDVSM4110T. If you encounter any difficulties in locating the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568465400
Supplier Part Number IDVSM4110T
Category AC Motors
Subcategory AC VS Master Motors
Product Family General Purpose
Agency Approvals UR, CSA
Ambient Temperature 40 °C
Approximate Weight (lbs) 619.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number IDVSM4110T
Current @ Voltage 102.000 A @ 208.0 V, 48.000 A @ 460.0 V, 96.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 94.1 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 324T
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 48.0 a
Insulation Class F
Inverter Code Inverter Duty
IP Rating NONE
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 2700 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1254M
Mounting Arrangement F1
Number of Poles 4
Output 40.000 hp
Output @ Frequency 40.000 HP @ 60 HZ
Overall Length 33.14 IN
Phase 3
Power Factor 82
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 2.125 IN
Shaft Extension Location Double Shaft
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1775 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
