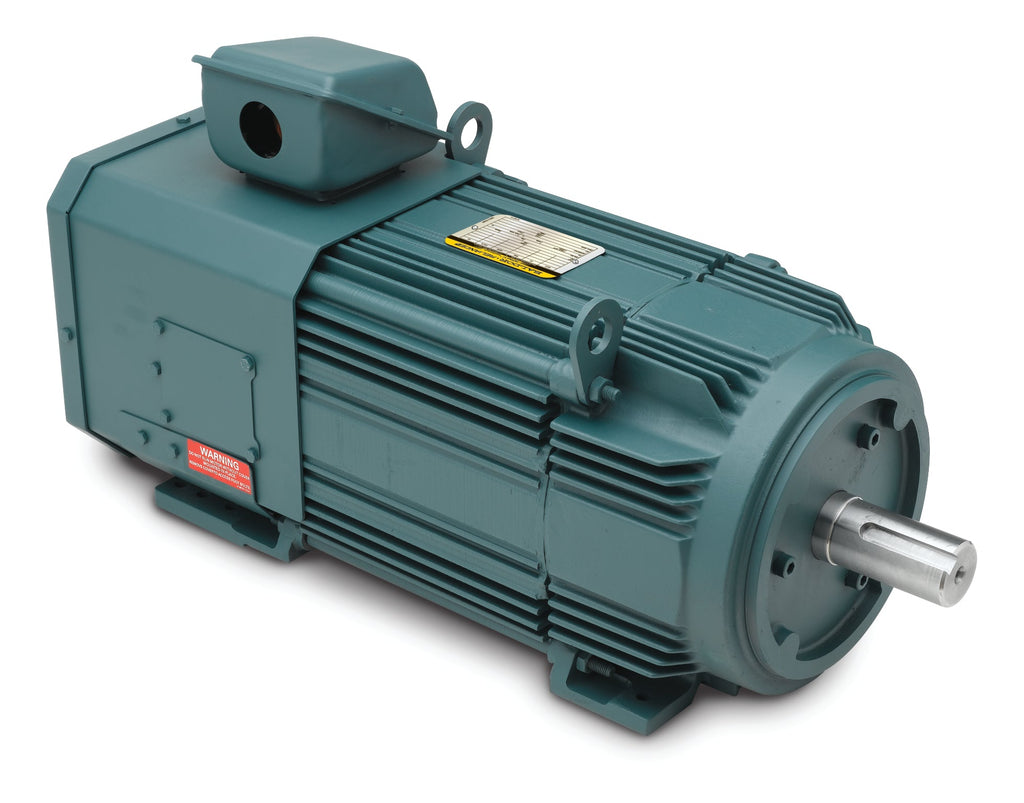

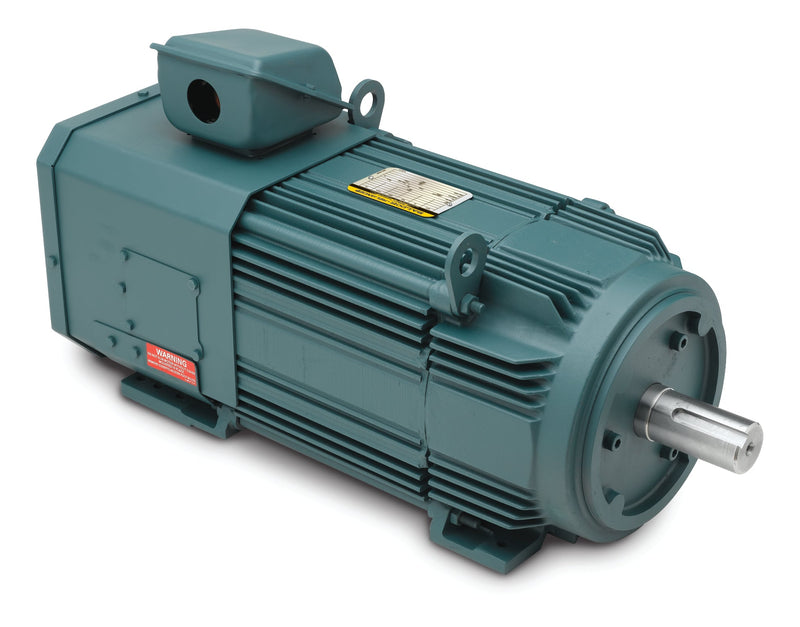

Baldor IDNRPM21104C - 10 HP, 1750, 230_460V, FL2162, Tenv, F3 10 HP

Save $1,911.25
BaldorSKU: IDNRPM21104C

Price:
Sale price$5,733.75 Regular price$7,645.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Baldor-Reliance AC Laminated Frame - RPMAC Motors

Introducing the Baldor IDNRPM21104C, a high-performance 10 HP AC Laminated Frame RPMAC Motor designed for reliability and efficiency. Operating at 1750 RPM with a voltage rating of 230/460V, this motor is ideal for various industrial applications. Its TENV (Totally Enclosed Non-Ventilated) design ensures durability and protection against environmental factors, making it a perfect choice for demanding settings.

Key Features:

  • Power: 10 HP
  • Speed: 1750 RPM
  • Voltage: 230/460V
  • Frame Size: FL2162
  • Type: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: IDNRPM21104C

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568465301
Supplier Part Number IDNRPM21104C
Category AC Motors
Subcategory AC Laminated Frame - RPMAC Motors
Product Family General Industrial
Agency Approvals CCSA US
Approximate Weight (lbs) 280.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number IDNRPM21104C
Current @ Voltage 13.600 A @ 460.0 V
Duty Rating CONT
Enclosure TENV
Feedback Device NO FEEDBACK
Frame FL2162C
Frame Material Exposed Laminations
Frame Prefix FL
Frequency 60.00 Hz
Heater Indicator No Heater
High Voltage Full Load Amps 13.6 a
Insulation Class H
IP Rating NONE
Motor Letter Type Three Phase
Motor Standards NEMA
Mounting Arrangement F3
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 23.71 IN
Phase 3
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Service Factor 1
Shaft Diameter 1.375 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1780 rpm
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ

Motor Curves
