Baldor IDM2333T - 15 HP, 1765RPM, 3 Phase, 60HZ, 256TC, 0944M, Tebc, F 60HZ Three Phase 15 HP 0944 M Cable

Save $1,427.00
BaldorSKU: IDM2333T

Price:
Sale price$4,281.00 Regular price$5,708.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

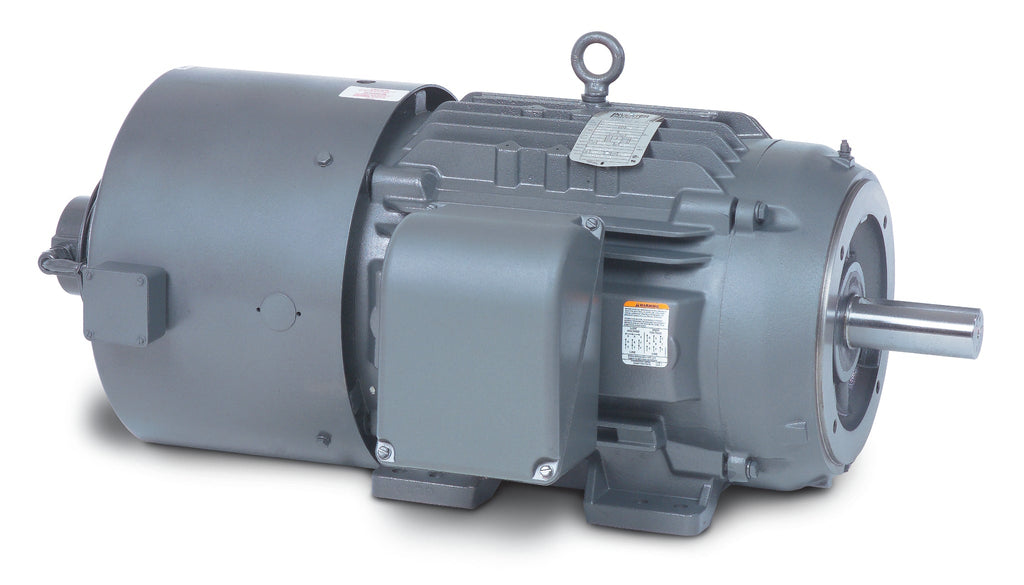

Baldor IDM2333T - 15 HP AC Inverter/Vector Duty Motor

Upgrade your industrial applications with the Baldor IDM2333T, a high-performance 15 HP AC Inverter/Vector Duty Motor designed for efficiency and reliability. Operating at 1765 RPM and compatible with 3-phase, 60Hz power supply, this motor is ideal for a variety of demanding environments.

Specifications:

  • Power: 15 HP
  • Speed: 1765 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 256TC
  • Enclosure: TEBC (Totally Enclosed, Fan Cooled)
  • Product Code: IDM2333T

As a trusted vendor, Baldor ensures that this motor meets the highest standards of quality and performance, making it a perfect choice for your operational needs. Whether you are replacing an existing motor or upgrading your system, the Baldor IDM2333T is engineered to deliver exceptional results.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor IDM2333T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568144398
Supplier Part Number IDM2333T
Category AC Motors
Subcategory AC Inverter/Vector Duty Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 268.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower BLOWER
Catalog Number IDM2333T
Current @ Voltage 36.200 A @ 230.0 V, 38.000 A @ 208.0 V, 18.100 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEBC
Feedback Device NO FEEDBACK
Frame 256TC
Frame Material Iron
Frequency 60.00 Hz
Front Face Code Encoder/Feedback Device
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 18.1 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 5000 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0944M
Mounting Arrangement F1
Number of Poles 4
Output 15.000 hp
Output @ Frequency 15.000 HP @ 60 HZ
Overall Length 29.22 IN
Phase 3
Power Factor 83
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1765 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V, 460 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
