Baldor IDM2332T - 60M 6P Tebc Hor 256TC T'stats Inv Duty 60 M Cable

Save $2,537.75
BaldorSKU: IDM2332T

Price:
Sale price$7,613.25 Regular price$10,151.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

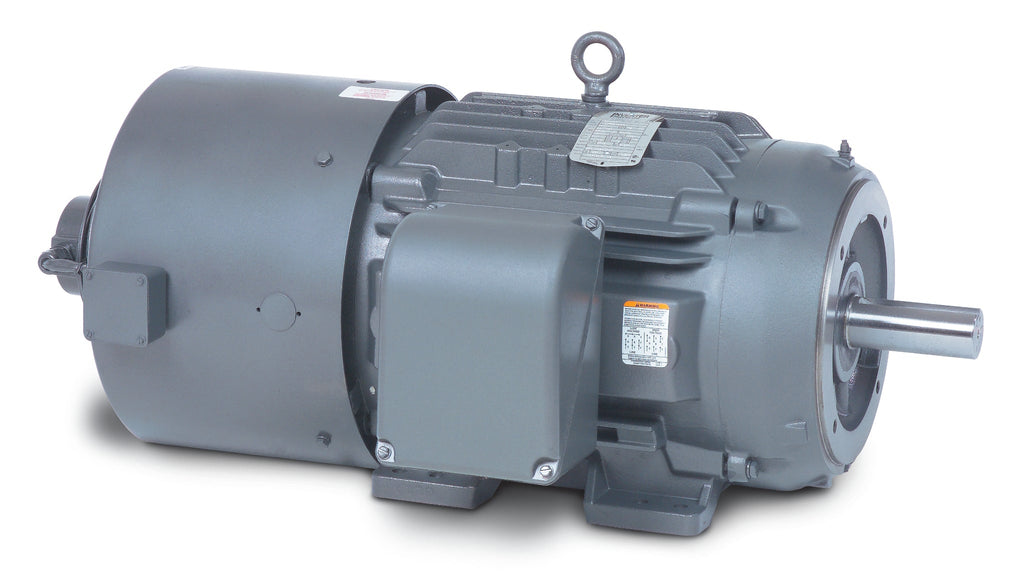

Baldor IDM2332T - 60M 6P TEBC Horizontal AC Inverter/Vector Duty Motor

Upgrade your industrial applications with the Baldor IDM2332T, a high-performance AC Inverter/Vector Duty Motor designed for reliability and efficiency. This motor features a 60M frame size, 6 poles, and a TEBC (Totally Enclosed Blower-Cooled) design, ensuring optimal performance in demanding environments.

With a 256TC mounting configuration, the Baldor IDM2332T is engineered for inverter duty, making it an ideal choice for variable speed applications. Its robust construction and advanced technology provide exceptional torque and speed control, making it suitable for a wide range of industrial uses.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor IDM2332T to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

Explore our extensive selection of Baldor-Reliance Motors and Drives, and experience the quality and performance that sets us apart in the industry.

UPC 781568144381
Supplier Part Number IDM2332T
Category AC Motors
Subcategory AC Inverter/Vector Duty Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 339.999
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower BLOWER
Catalog Number IDM2332T
Current @ Voltage 28.400 A @ 230.0 V, 30.000 A @ 208.0 V, 14.200 A @ 460.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEBC
Feedback Device NO FEEDBACK
Frame 256TC
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Encoder/Feedback Device
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 14.2 a
Insulation Class H
Inverter Code Inverter Duty
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Max Speed 5000 rpm
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 0960M
Mounting Arrangement F1
Number of Poles 6
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 29.22 IN
Phase 3
Power Factor 72
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 1.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1180 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,200 rpm
Synchronous Speed @ Frequency 1200 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
