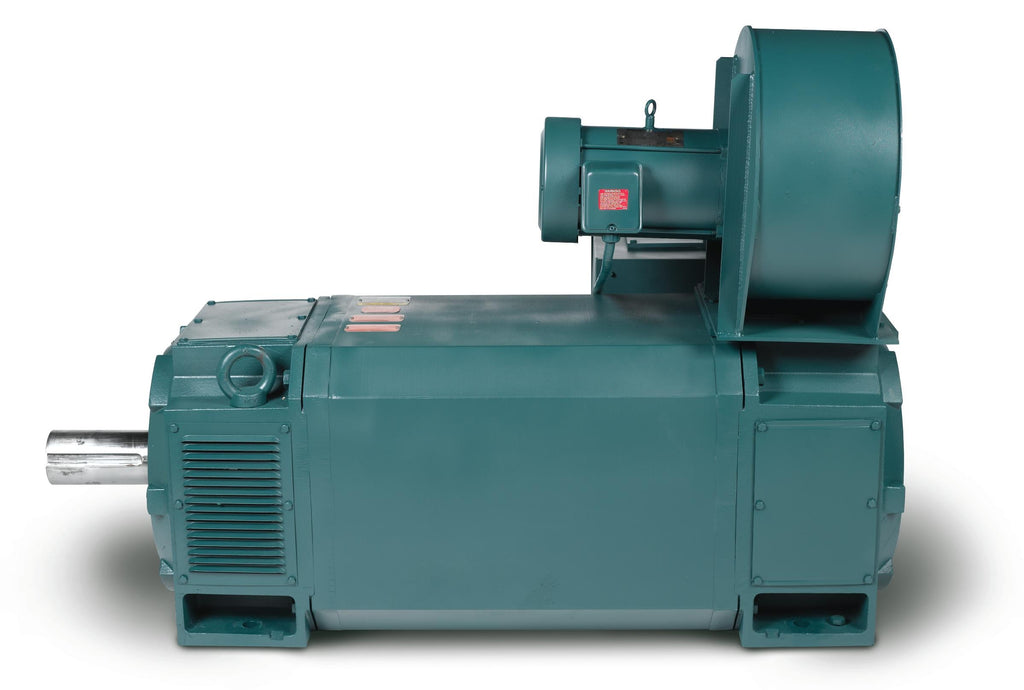

Image shown may not be actual product
Roll over image to zoom in
Click on image to zoom
Description
Baldor Replacement Part — Component
The Baldor IDDRPM281006 for Baldor pump systems.
Part Specifications
| Part Number | IDDRPM281006 |
| Brand | Baldor |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- UPC
- 781568465035
- Supplier Part Number
- IDDRPM281006
- Category
- AC Motors
- Subcategory
- AC Laminated Frame - RPMAC Motors
- Product Family
- General Industrial
- Agency Approvals
- CCSA US
- Approximate Weight (lbs)
- 770.0
- Auxillary Box
- No Auxillary Box
- Base Indicator
- Rigid
- Bearing Grease Type
- Polyrex EM (-20F +300F)
- Catalog Number
- IDDRPM281006
- Current @ Voltage
- 124.000 A @ 460.0 V
- Duty Rating
- CONT
- Enclosure
- DPFV
- Enclosure Modification
- FORCE VENT
- Feedback Device
- NO FEEDBACK
- Frame
- RL2882Z
- Frame Material
- Exposed Laminations
- Frame Prefix
- RL
- Frequency
- 40.00 Hz
- Heater Indicator
- No Heater
- High Voltage Full Load Amps
- 124.0 a
- Insulation Class
- H
- IP Rating
- NONE
- Motor Letter Type
- Three Phase
- Motor Standards
- NEMA
- Mounting Arrangement
- F1
- Output
- 100.000 hp
- Output @ Frequency
- 100.000 HP @ 40 HZ
- Overall Length
- 38.43 IN
- Phase
- 3
- Pulley End Bearing Type
- Ball
- Pulley Face Code
- Standard
- Service Factor
- 1
- Shaft Diameter
- 2.624 IN
- Shaft Ground Indicator
- Shaft Grounding
- Shaft Rotation
- Reversible
- Speed
- 1160 rpm
- Synchronous Speed
- 1,200 rpm
- Synchronous Speed @ Frequency
- 1200 RPM @ 40 HZ
- Thermal Device - Bearing
- None
- Thermal Device - Winding
- Normally Closed Thermostat
- Voltage
- 460 V
- Voltage @ Frequency
- 460.0 V @ 40 HZ
