Baldor GDL1610T - 10 HP, 1740RPM, 1 Phase, 60HZ, 215TZ, 3748LC, Odtf 60HZ Single Phase 10 HP

Save $1,016.75
BaldorSKU: GDL1610T

Price:
Sale price$3,050.25 Regular price$4,067.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

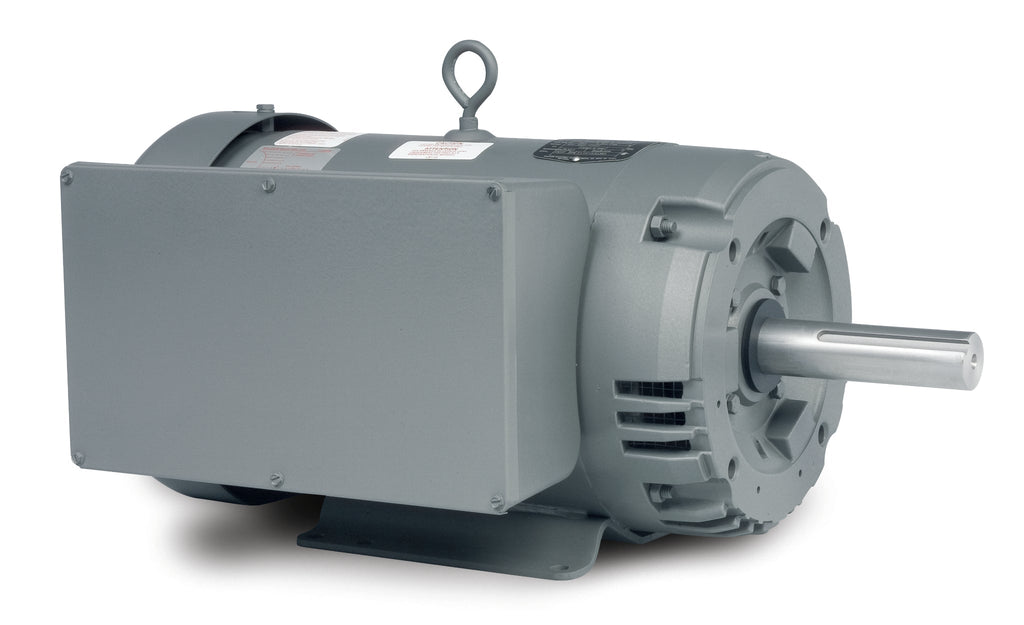

Baldor GDL1610T Grain Dryer Motor

Upgrade your grain drying operations with the Baldor GDL1610T, a powerful 10 HP motor designed specifically for grain dryer applications. Operating at 1740 RPM and compatible with single-phase 60HZ power, this motor ensures efficient performance and reliability.

Specifications:

  • Power: 10 HP
  • Speed: 1740 RPM
  • Phase: 1 Phase
  • Frequency: 60HZ
  • Frame Size: 215TZ
  • Product Code: GDL1610T

This Baldor-Reliance motor is ideal for those seeking a durable and efficient solution for their grain drying needs. With its robust construction and high performance, it is a trusted choice among professionals in the industry.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor GDL1610T to ensure compatibility. Don’t hesitate to reach out if you need help locating the right item!

UPC 781568121535
Supplier Part Number GDL1610T
Category AC Motors
Subcategory Grain Dryer Motors
Product Family General Purpose
Agency Approvals CURUS
Ambient Temperature 40 °C
Approximate Weight (lbs) 160.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number GDL1610T
Current @ Voltage 38.000 A @ 230.0 V
Design Code L
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 86.5 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 215TZ
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 38.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Cap Box
Motor Lead Quantity/Wire Size 2 @ 10 AWG, A PH
Motor Lead Termination Flying Leads
Motor Letter Type Cap Start, Cap Run
Motor Standards NEMA
Motor Type 3748LC
Mounting Arrangement F1
Number of Poles 4
Output 10.000 hp
Output @ Frequency 10.000 HP @ 60 HZ
Overall Length 22.85 IN
Phase 1
Power Factor 98
Product Type FARM DUTY
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen Included
Service Factor 1
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1740 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding Normally Closed Thermostat
Vibration Sensor Indicator No Vibration Sensor
Voltage 230 V
Voltage @ Frequency 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
