Baldor FPM2568T-4 - 300/250HP, 60//50HZ, 2PL, 3 Phase, 445TS, Open 50HZ Three Phase 250 HP

Save $9,083.50
BaldorSKU: FPM2568T-4

Price:
Sale price$27,250.50 Regular price$36,334.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

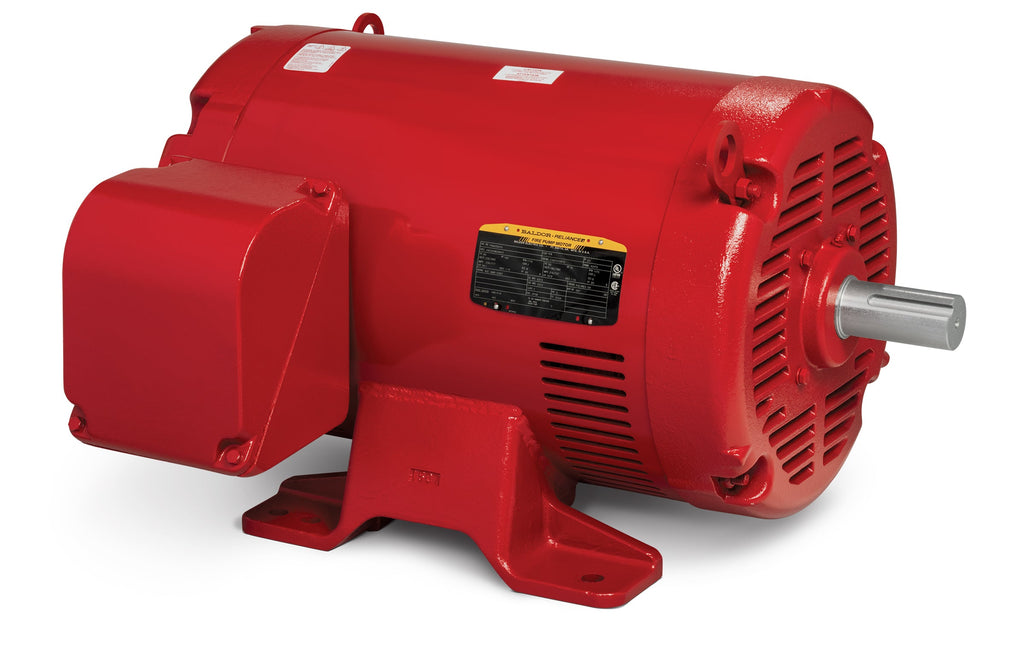

Baldor-Reliance Fire Pump - Model FPM2568T-4

The Baldor-Reliance Fire Pump is a high-performance solution designed for reliable fire protection. With a powerful output of 300/250HP and compatibility with both 60Hz and 50Hz power systems, this 3-phase motor is engineered to meet the demanding needs of fire safety applications. The motor features a 445TS frame size and is designed for open installation, ensuring optimal cooling and efficiency.

Key Features:

  • Power: 300/250HP
  • Frequency: 60Hz / 50Hz
  • Phase: 3 Phase
  • Frame Size: 445TS
  • Type: Open

As a trusted source for replacement pumps and parts, Pump-Stop.com is your go-to destination for all your fire pump needs. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568812044
Supplier Part Number FPM2568T-4
Category AC Motors
Subcategory Fire Pump
Product Family Other
Agency Approvals CULUS, CCSAUSEEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 1549.0
Auxillary Box No Auxillary Box
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Catalog Number FPM2568T-4
Current @ Voltage 339.000 A @ 460.0 V, 342.000 A @ 380.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 95.0 %
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 445TS
Frame Material Cast Iron
Frequency 50.00 Hz, 60.00 Hz
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 339.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs No Lifting Lugs
Motor Lead Quantity/Wire Size 12 @ 2 AWG
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type A44072M
Mounting Arrangement F1
Number of Poles 2
Output 250.000 hp @ 50 Hz, 300.000 hp @ 60 Hz
Output @ Frequency 300.000 HP @ 60 HZ, 250.000 HP @ 50 HZ
Overall Length 35.88 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Service Factor 1.15
Shaft Diameter 2.375 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 2960 rpm, 3560 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Voltage 380 V @ 50 Hz, 460 V @ 60 Hz
Voltage @ Frequency 380.0 V @ 50 HZ, 460.0 V @ 60 HZ

Motor Curves
