Baldor FPM2542T-2/4 - 50 HP, 3520RPM, 3 Phase, 60HZ, 324TS, 4044M, Opsb, F 60HZ Three Phase 50 HP 4044 M Cable

Save $1,470.00
BaldorSKU: FPM2542T-2/4

Price:
Sale price$4,410.00 Regular price$5,880.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

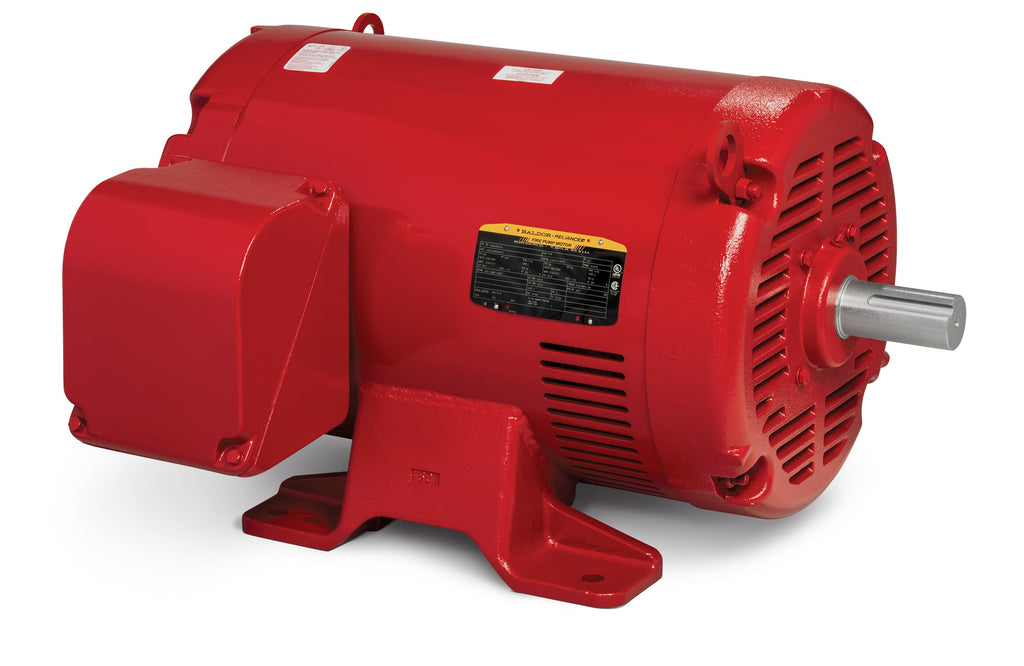

Baldor-Reliance Fire Pump - 50 HP

Introducing the Baldor FPM2542T-2/4 Fire Pump, a high-performance solution designed for demanding applications. This robust fire pump motor features:

  • Power: 50 HP
  • Speed: 3520 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 324TS
  • Model Number: 4044M
  • Type: OPSB

This Baldor-Reliance fire pump is engineered for reliability and efficiency, making it an ideal choice for fire protection systems. With its durable construction and advanced design, it ensures optimal performance in critical situations.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568816820
Supplier Part Number FPM2542T-2/4
Category AC Motors
Subcategory Fire Pump
Product Family Fire Pump Motor
Agency Approvals CULUS, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 340.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number FPM2542T-2/4
Current @ Voltage 134.000 A @ 200.0 V, 67.000 A @ 400.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 324TS
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 67.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code F
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 12 @ 8 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4044M
Mounting Arrangement F1
Number of Poles 2
Output 50.000 hp
Output @ Frequency 50.000 HP @ 60 HZ
Overall Length 24.69 IN
Phase 3
Power Factor 87
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 3520 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 3,600 rpm
Synchronous Speed @ Frequency 3600 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 200 V, 400 V
Voltage @ Frequency 200.0 V @ 60 HZ, 400.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
