Baldor FPM2539TS - 40//30HP, 1770//1470RPM, 3 Phase, 60//50HZ, 324T 50HZ Three Phase 30 HP

Save $1,347.25
BaldorSKU: FPM2539TS

Price:
Sale price$4,041.75 Regular price$5,389.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

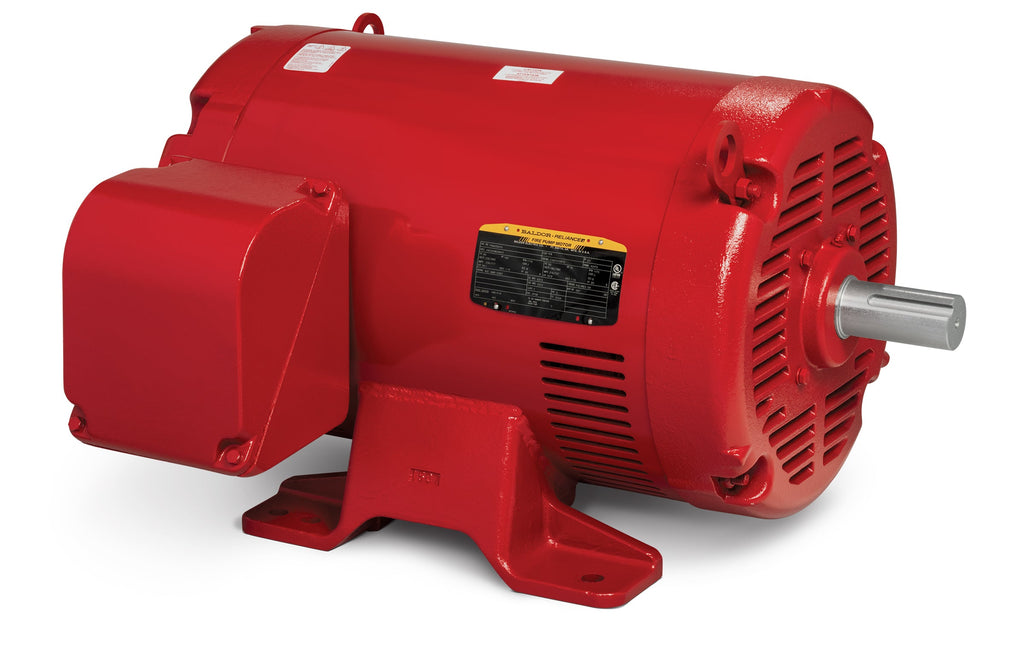

Baldor-Reliance Fire Pump - Model FPM2539TS

Introducing the Baldor-Reliance Fire Pump, a robust and reliable solution designed for demanding fire protection applications. This high-performance motor features a power rating of 40/30HP and operates at speeds of 1770/1470 RPM, making it ideal for various pumping needs.

Specifications:

  • Power: 40/30HP
  • Speed: 1770/1470 RPM
  • Phase: 3 Phase
  • Frequency: 60/50Hz
  • Frame Size: 324T

As a trusted vendor, Baldor ensures that this fire pump meets the highest standards of quality and performance. Whether you are replacing an existing unit or upgrading your system, the FPM2539TS is engineered to deliver exceptional reliability and efficiency.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. Our team is here to help you find the perfect solution for your needs.

UPC 781568811894
Supplier Part Number FPM2539TS
Category AC Motors
Subcategory Fire Pump
Product Family Fire Pump Motor
Agency Approvals CULUS, CSA EEV
Ambient Temperature 40 °C
Approximate Weight (lbs) 400.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number FPM2539TS
Current @ Voltage 98.000 A @ 230.0 V, 90.000 A @ 190.0 V, 49.000 A @ 460.0 V, 45.000 A @ 380.0 V, 104.000 A @ 208.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure ODP
Feedback Device NO FEEDBACK
Frame 324TS
Frame Material Steel
Frequency 50.00 Hz, 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
High Voltage Full Load Amps 45.0 a
Insulation Class F
Inverter Code Not Inverter
KVA Code G
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 12 @ 10 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 4052M
Mounting Arrangement F1
Number of Poles 4
Output 30.000 hp @ 50 Hz, 40.000 hp @ 60 Hz
Output @ Frequency 40.000 HP @ 60 HZ, 30.000 HP @ 50 HZ
Overall Length 24.69 IN
Phase 3
Power Factor 83
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1470 rpm, 1770 rpm
Speed Code Single Speed
Starting Method Wye Start - Delta Run
Synchronous Speed 1,500 rpm
Synchronous Speed @ Frequency 1500 RPM @ 50 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 190 V @ 50 Hz, 380 V @ 50 Hz, 230 V @ 60 Hz, 460 V @ 60 Hz
Voltage @ Frequency 190.0 V @ 50 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ, 380.0 V @ 50 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
